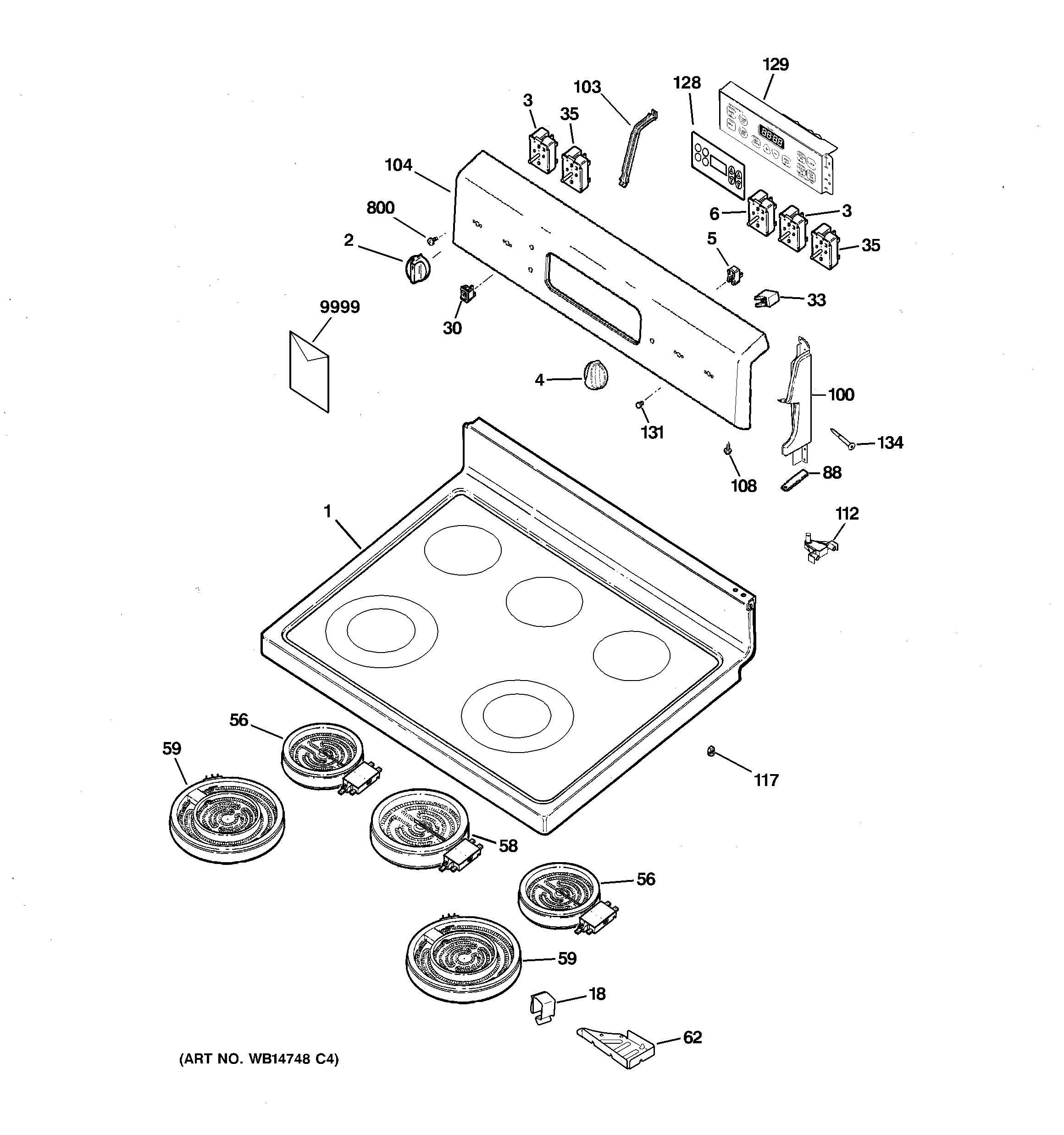

RB792DR2WW CONTROL PANEL & COOKTOP

RB792DR2WW CONTROL PANEL & COOKTOP

Written by

in

RB792DR2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB57K10150
2WB03T10076 GE Oven Knob
3WB24T10029 GE Oven Infinite Burner Switch
4GEN WB03K10180
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
6INFINITE CONTROL SWITCH
18WB09T10002 GE Oven Radiant Spring
30WB27T10668 GE Oven Light Indicator
33WB25K10010 GE Oven Light Indicator Pilot
35WB24T10153 GE Oven Infinite Switch Control
56WB30X38928 GE Surface 6" Radiant Element
58WB30T10124 GE Oven 6" Radiant Warmer Element
59WB30T10133 GE Oven Dual Radiant Element
62GEN WB02K10293
62GEN WB02K10292
88GEN WB02K0062
100END SUPPORT LF
100WB07K10209 GE Oven End Support
103WB02K10077 GE Control Bracket
104GEN WB36K10913
108WB1X5364 GE Oven Mounting Screw
112WB14K10003 GE Range Top Hinge
117GEN WB02K0017
128WB27K10170 GE Oven Overlay T09-B HP
129CONTROL OVEN TO9 (ELEC)
131WB25K10009 GE Oven Lens
131WB25T10041 GE Oven Lens
134GEN WB01X5716
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
9999GEN 49-88045
9999GEN 31-21416
9999GEN 31-14906
9999PM10X310 GE Cerama Bryte Cooktop Cleaner
