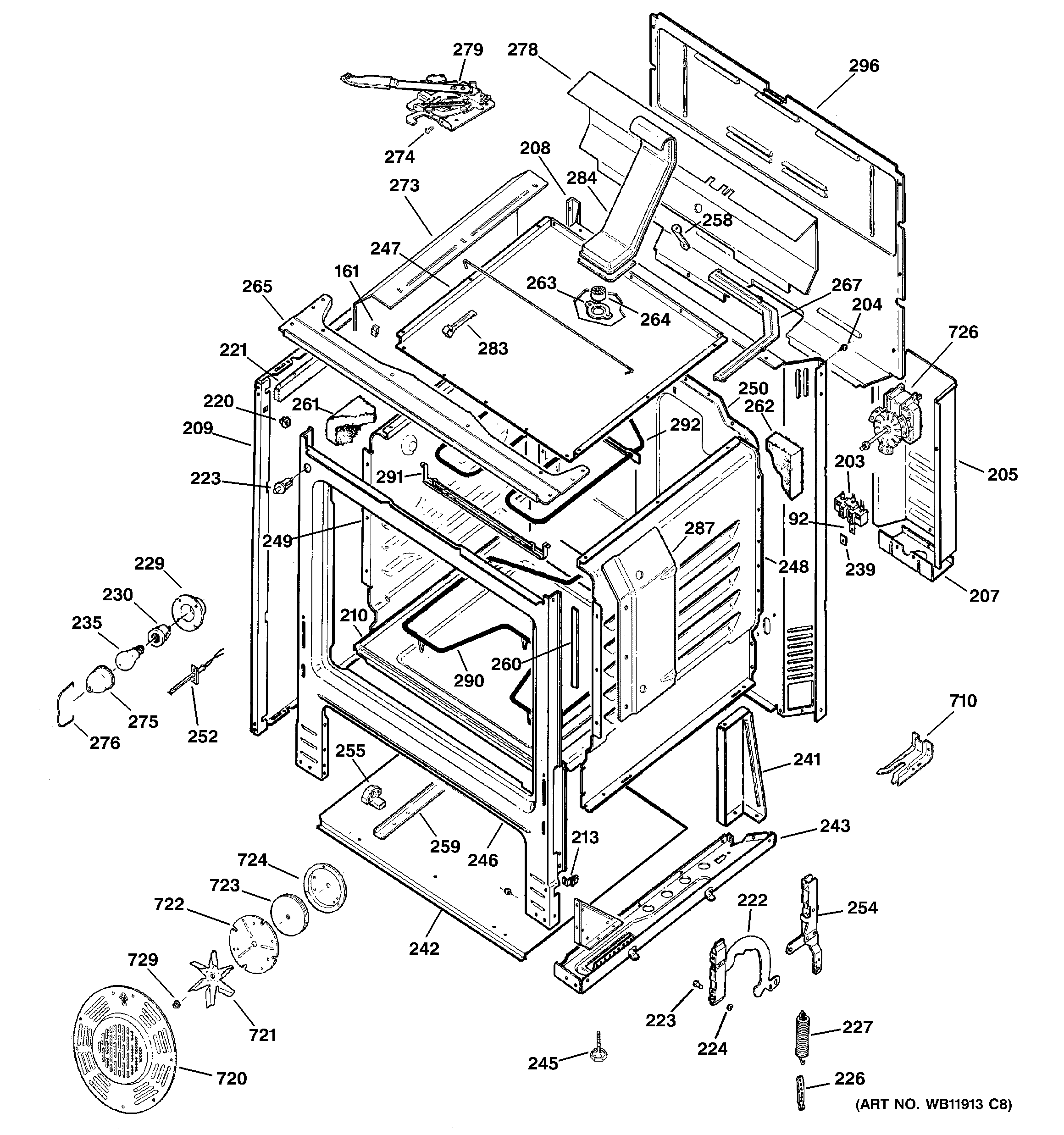

RB798WC3WW BODY PARTS

RB798WC3WW BODY PARTS

Written by

in

RB798WC3WW BODY PARTS

Products

PositionProduct
92GEN WB02T10030
161RETAINER-INSULATION
203WB17X5095 GE Black Oven Terminal
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
205WB34K10029 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208GEN WB62K10045
209GEN WB63K10013
210WB63K10006 GE Oven Bottom Assembly
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221CLIP WINDOW
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
223WB24T10147 GE Oven SPDT Light Switch
224RING RETAINING
226GEN WB09K10001
227GEN WB09K0005
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
235RANGE ONLY 40W 120V APPL BULB
239GEN WB01X5968
239PLATE GROUND
242GEN WB63K10009
243WB63K10232 GE Oven Support Base
243WB63K10233 GE Oven Support Base
245WB02X10521 GE Oven Leveling Leg
246GEN WB63K10024
247WB63K10023 GE Oven Top
248GEN WB63K10010
249GEN WB63K10011
250GEN WB53K10010
252SENSOR ASM
254GEN WB10K0013
254GEN WB10K0014
254GEN WB01K0053
255WB02K10158 GE Oven Drawer Support
258WB02K10040 GE Oven Vent Bracket
259WB39K16 GE Oven Drawer Rail
260WB32K2 GE Oven Gasket Seal
261GEN WB35K10011
262GEN WB35K10021
262GEN WB35K10020
263WB35K10019 GE Vent Gasket
263WB02K10039 GE Vent Ring
264GEN WB35K10018
265GEN WB34K10044
267WB02K10038 GE Corner Brace
273GEN WB53K0012
273GEN WB53K0011
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
279GEN WB02K10146
283WB02X21679 GE Oven Wire Clip
284GEN WB38K10003
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
296GEN WB34K10031
710WB02K10254 GE Oven Anti-Tip Bracket Assembly
720FAN COVER FRONT
721WB2X8351 GE Oven Blade Fan
722WB34K10038 GE Oven Fan Cover Back
723WB35K10013 GE Fan Insulation
724WB02K10034 GE Range Fan Support
726WB26K10004 GE Oven Convection Fan Motor
729WB02T10017 GE Oven Nut
