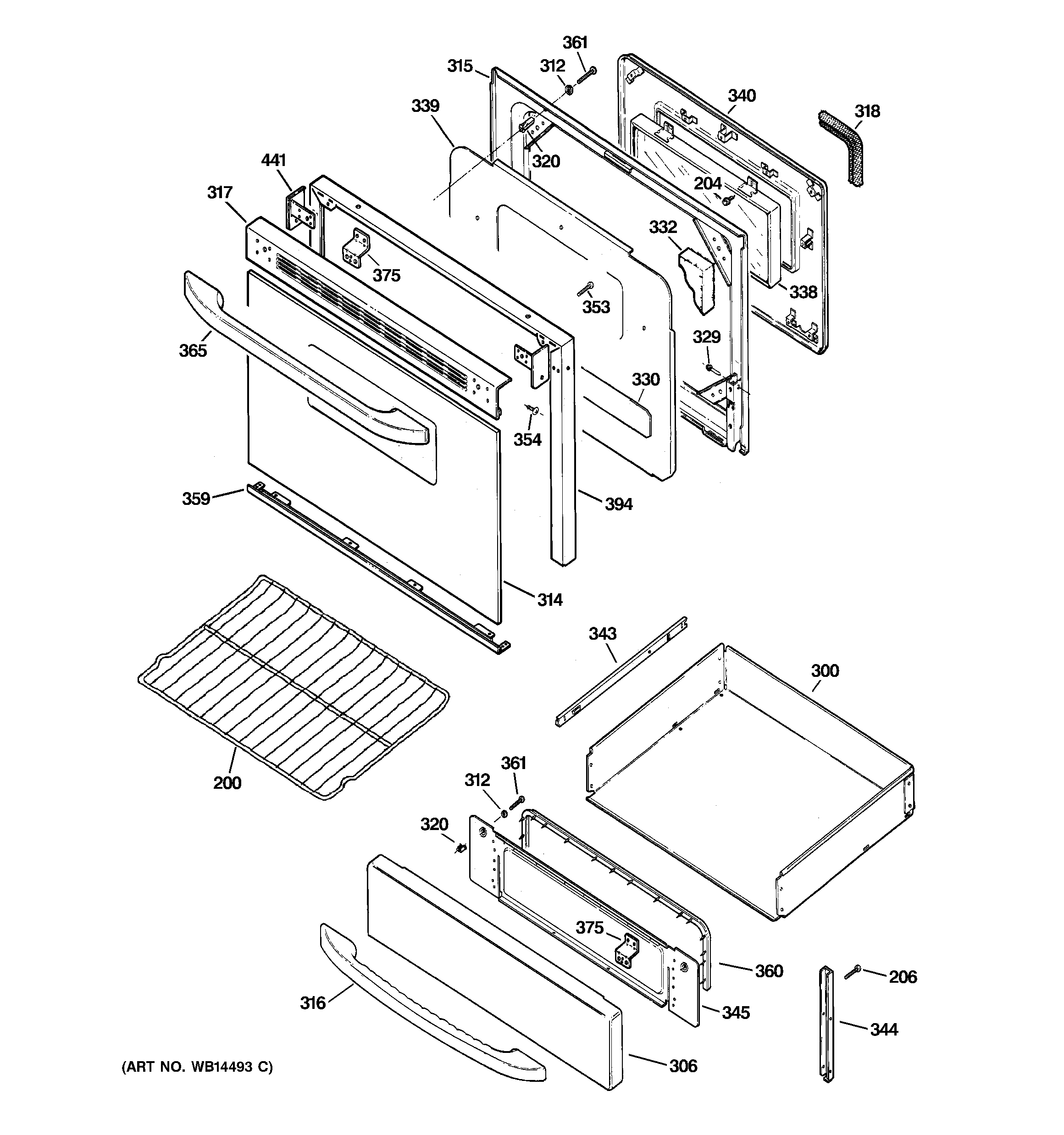

RB800BJ5BB DOOR & DRAWER PARTS

RB800BJ5BB DOOR & DRAWER PARTS

Written by

in

RB800BJ5BB DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
204WB1K5062 GE Oven Screw
204WB1X536 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WR01X10065 GE Screw
300GEN WB58K10005
306GEN WB55K10017
306GEN WB55K10018
306GEN WB55K10019
312WB1X119D GE Oven Range Washer
314GEN WB57K10044
314WB57K4 GE Oven Black Glass Door
314WB57K5 GE Oven White Glass Door
315GEN WB55K10042
316GEN WB15K10056
316GEN WB15K10055
316HANDLE DRAWER BK
317WB07K10192 GE Oven Vent Door Trim Assembly
317WB07K10200 GE Oven Vent Trim Assembly
317WB07K10191 GE Oven Vent Trim Door (White)
317WB35K10041 GE Oven Reflector
318WB35X29722 GE Oven Door Gasket Assembly
320GEN WB02K10162
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K10101
332GEN WB35K10102
338CRYSTAL WINDOW
338WB34K10087 GE Oven Window Spacer Assembly
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343GUIDE- SLIDE DRAWER
344GEN WB02K10025
345GEN WB55K10020
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K66 GE Screw
354WB01K10024 GE Oven Screw Mounting Endcap (Bisque)
354WB1K62 GE Oven Door Assembly
359WB07K10269 GE Oven Bottom Trim Assembly
359TRIM BOTTOM ASM
359WB07K10232 GE Oven Bottom Trim Assembly
360GEN WB04K10014
361WB1X5731D GE Oven Nut Package of 12
365WB15X10047 GE Range Oven Black Door Handle
365WB15X10048 GE Oven Door Handle White
365HANDLE DOOR (BSQT)
375WB02K10245 GE Oven Door Bracket
394GEN WB07K0265
394GEN WB07K10165
394GEN WB07K0268
441END CAP DOOR LT (BISQUE)
441WB7K264 GE Oven Door Endcap
441WB7K263 GE Oven Door Endcap
441WB7K266 GE Oven Door End Cap
441END CAP DOOR RT (BISQUE)
