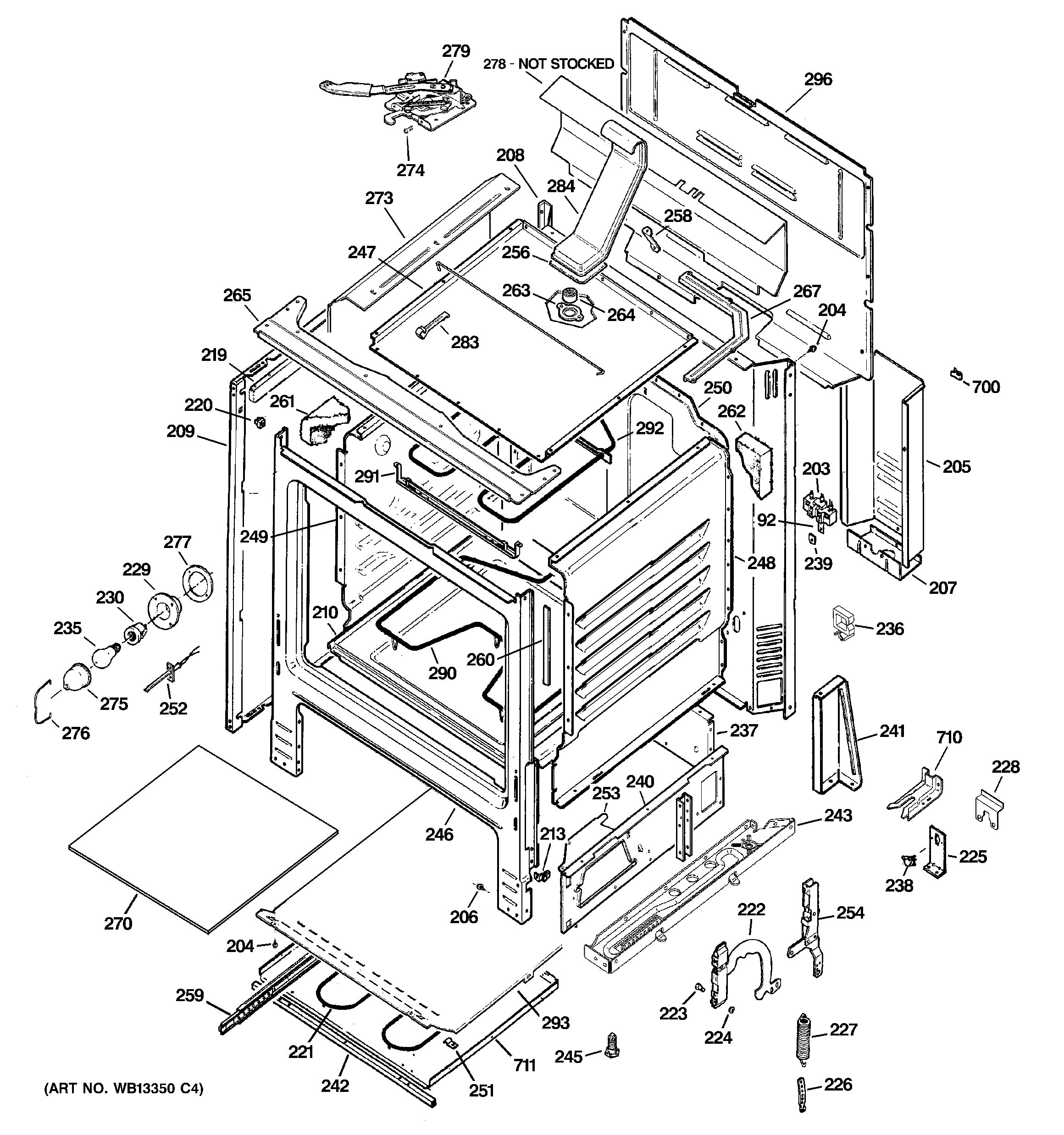

RB800CJ2CC BODY PARTS

RB800CJ2CC BODY PARTS

Written by

in

RB800CJ2CC BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
203WB17T10011 GE Oven Terminal Block
204WZ4X345D GE Screw Package 12 C92
204WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
204WB1K5062 GE Oven Screw
204WB1X536 GE Oven Screw
205WB34K10029 GE Oven Guard Terminal
206WR01X10065 GE Screw
207WB02K10029 GE Oven Mounting Terminal Bracket
208GEN WB63K10005
209GEN WB63K10026
210WB63K10006 GE Oven Bottom Assembly
213WB1K3 GE Oven Speed Nut
219GEN WB63K10050
220GEN WB02K0008
221BRACE SIDE
221WB44K10011 GE Oven Heating Element
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
225GEN WB02K10030
226GEN WB09K10001
227GEN WB09K0005
228GEN WB02K10097
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
235RANGE ONLY 40W 120V APPL BULB
236GEN WB02K0022
237GEN WB63K10044
238GEN WB20K10006
239PLATE GROUND
240GEN WB63K10042
240GEN WB63K10043
241CLIP WINDOW
242GEN WB63K0005
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
245WB02X10521 GE Oven Leveling Leg
247WB63K10023 GE Oven Top
248GEN WB63K10010
249GEN WB63K10011
250WB53K10007 GE Oven Back
251WB02K10023 GE Oven Heating Element Clamp
252SENSOR ASM
253WB2K4 GE Cover Accessory Spring
254GEN WB10K0014
254GEN WB01K0053
254GEN WB10K0013
256WB35K10019 GE Vent Gasket
258WB02K10040 GE Oven Vent Bracket
259WB39K10020 GE Oven Right Drawer Slide Assembly
259WB39K10021 GE Oven Left Drawer Slide Assembly
260WB32K2 GE Oven Gasket Seal
261GEN WB35K10011
262GEN WB35K10022
263WB02K10039 GE Vent Ring
264WB35K10028 GE Oven Catalyst Support
264GEN WB35K10018
265GEN WB34K10072
267WB02K10038 GE Corner Brace
270INSULATION DRAWER TOP
273GEN WB53K0011
273GEN WB53K0012
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
278SUPPORT CONTROL
279GEN WB02K10146
283WB02X21679 GE Oven Wire Clip
284GEN WB38K10003
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
293GEN WB63K10009
296GEN WB34K10031
700RETAINER-INSULATION
711GEN WB63K10041
