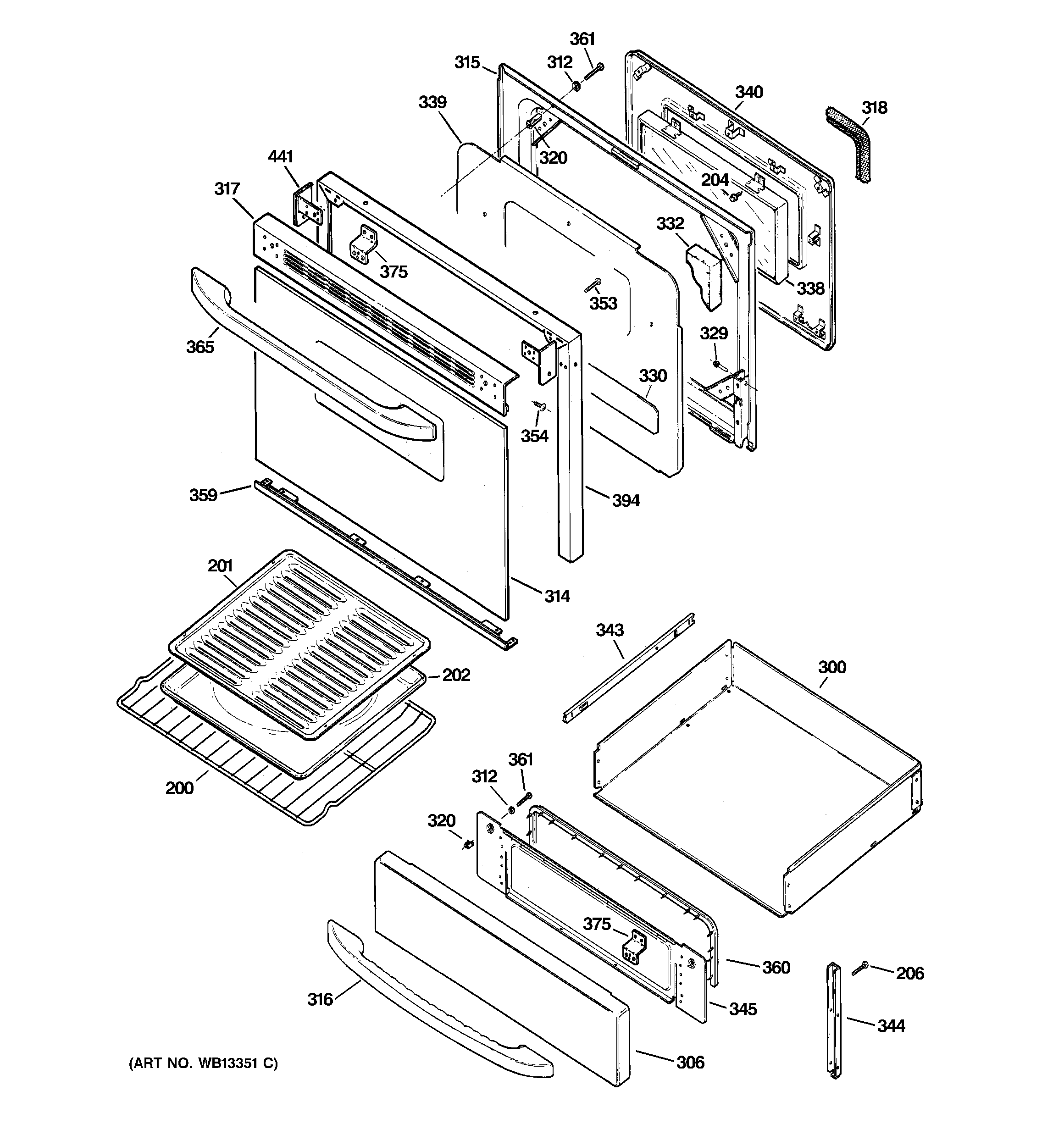

RB800CJ4CC DOOR & DRAWER PARTS

RB800CJ4CC DOOR & DRAWER PARTS

Written by

in

RB800CJ4CC DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
202WB48X10056 GE Broil Pan Set, Large Porcelain
204WZ4X345D GE Screw Package 12 C92
204WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
204WB1X536 GE Oven Screw
204WB1K5062 GE Oven Screw
206WR01X10065 GE Screw
300GEN WB58K10005
306GEN WB55K10018
312WB1X119D GE Oven Range Washer
314GEN WB57K10044
315GEN WB55K0025
316GEN WB15K10055
317WB07K10192 GE Oven Vent Door Trim Assembly
318WB35X29722 GE Oven Door Gasket Assembly
320WB2K14 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB35K0033
332GEN WB35K0025
332GEN WB35K0024
338WB34K10087 GE Oven Window Spacer Assembly
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343GUIDE- SLIDE DRAWER
344GEN WB02K10025
345GEN WB55K10020
353WB1K67 GE Oven Screw 8-22
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB01K10024 GE Oven Screw Mounting Endcap (Bisque)
359WB07K10269 GE Oven Bottom Trim Assembly
360GEN WB04K10014
361WB1X5731D GE Oven Nut Package of 12
365HANDLE DOOR (BSQT)
375WB02K10245 GE Oven Door Bracket
394GEN WB07K10165
441END CAP DOOR LT (BISQUE)
441END CAP DOOR RT (BISQUE)
