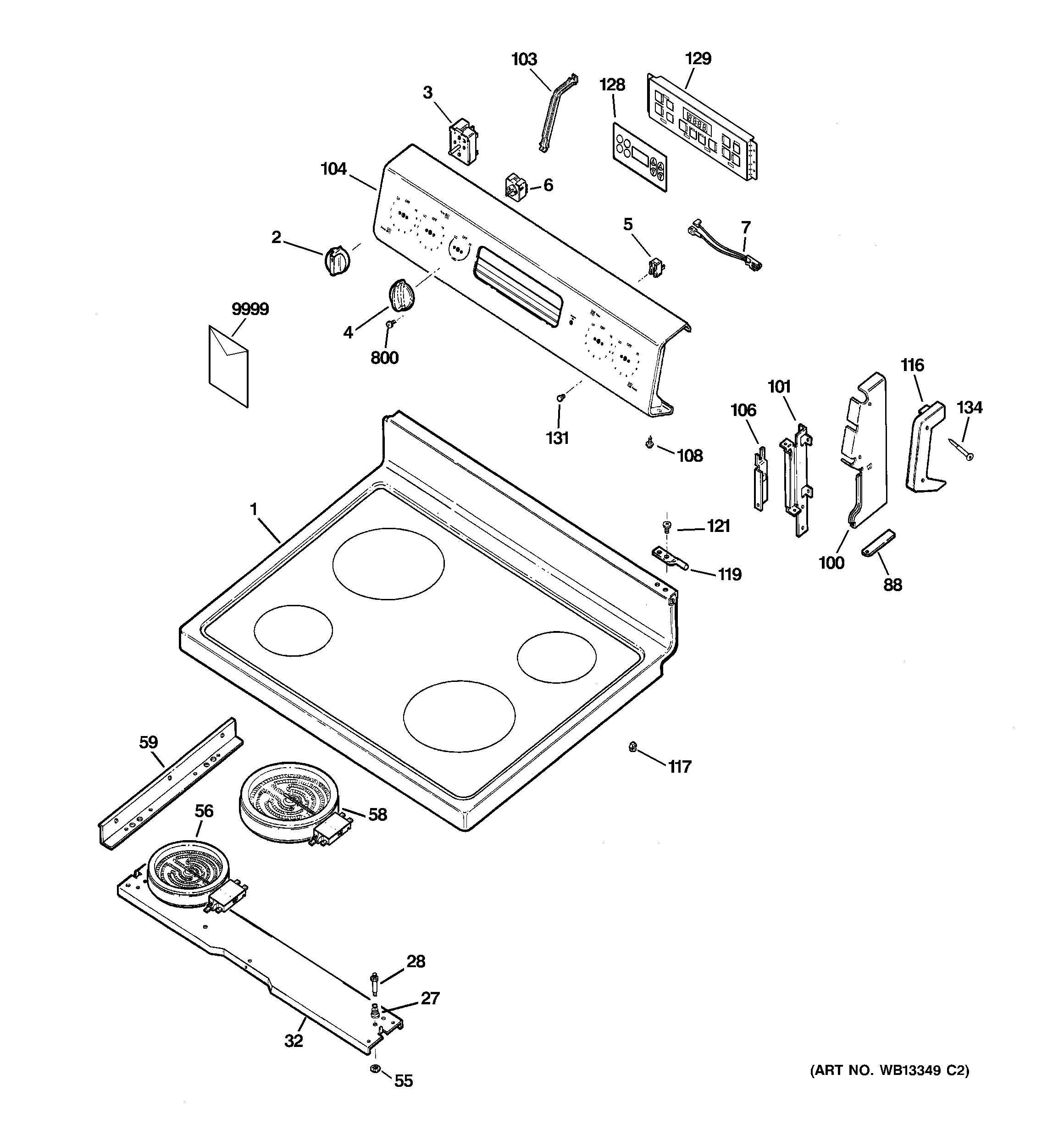

RB800CJ5CC CONTROL PANEL & COOKTOP

RB800CJ5CC CONTROL PANEL & COOKTOP

Written by

in

RB800CJ5CC CONTROL PANEL & COOKTOP

Products

PositionProduct
1COOKTOP & GLASS ASM
1GEN WB57K10058
1GEN WB57K10055
2INF KNOB (GE) BSQT
2WB03T10072 GE Oven Burner Knob
2WB03T10076 GE Oven Knob
3WB24T10029 GE Oven Infinite Burner Switch
3WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
4GEN WB03K10180
4GEN WB03K10177
4GEN WB03K10178
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
6GEN WB24K10006
7HARNESS INF SWT
7GEN WB24K10029
27GEN WB09X5119
28GEN WB02X8377
32WB02K10045 GE Bottom Heater Support
55GEN WB02X8323
56WB30X38928 GE Surface 6" Radiant Element
58WB30T10045 GE Oven Range Cooktop 8" Halogen Burner Assembly
59WB02K10046 GE Oven Side Heater Brace
88GEN WB02K0062
100GEN WB07K10001
100GEN WB07K10002
100GEN WB07K10115
100GEN WB07K10116
100GEN WB07K10023
100GEN WB07K10022
101GEN WB37K0017
101GEN WB37K0018
103GEN WB02K10027
104GEN WB36K10461
104GEN WB36K10460
104GEN WB36K10462
106GEN WB10K10001
106GEN WB10K10002
108GEN WB01X5874
108GEN WB01X5716
108WB1X5364 GE Oven Mounting Screw
116WB07K10007 GE Oven Endcap Left
116GEN WB07K10117
116WB07K10003 GE Oven Right Black Endcap
116GEN WB07K10004
116GEN WB07K10118
116WB07K10005 GE Oven Right Endcap
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB01K10043 GE Oven Screw
128WB27K10118 GE Oven Overlay
128GEN WB27K10179
128WB27K10170 GE Oven Overlay T09-B HP
129CONTROL OVEN TO9 (ELEC)
131WB25T10041 GE Oven Lens
134GEN WB01K10003
134GEN WB01K10017
134GEN WB01K10004
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
9999GEN 49-88029
9999PM10X310 GE Cerama Bryte Cooktop Cleaner
9999GEN 31-21180
