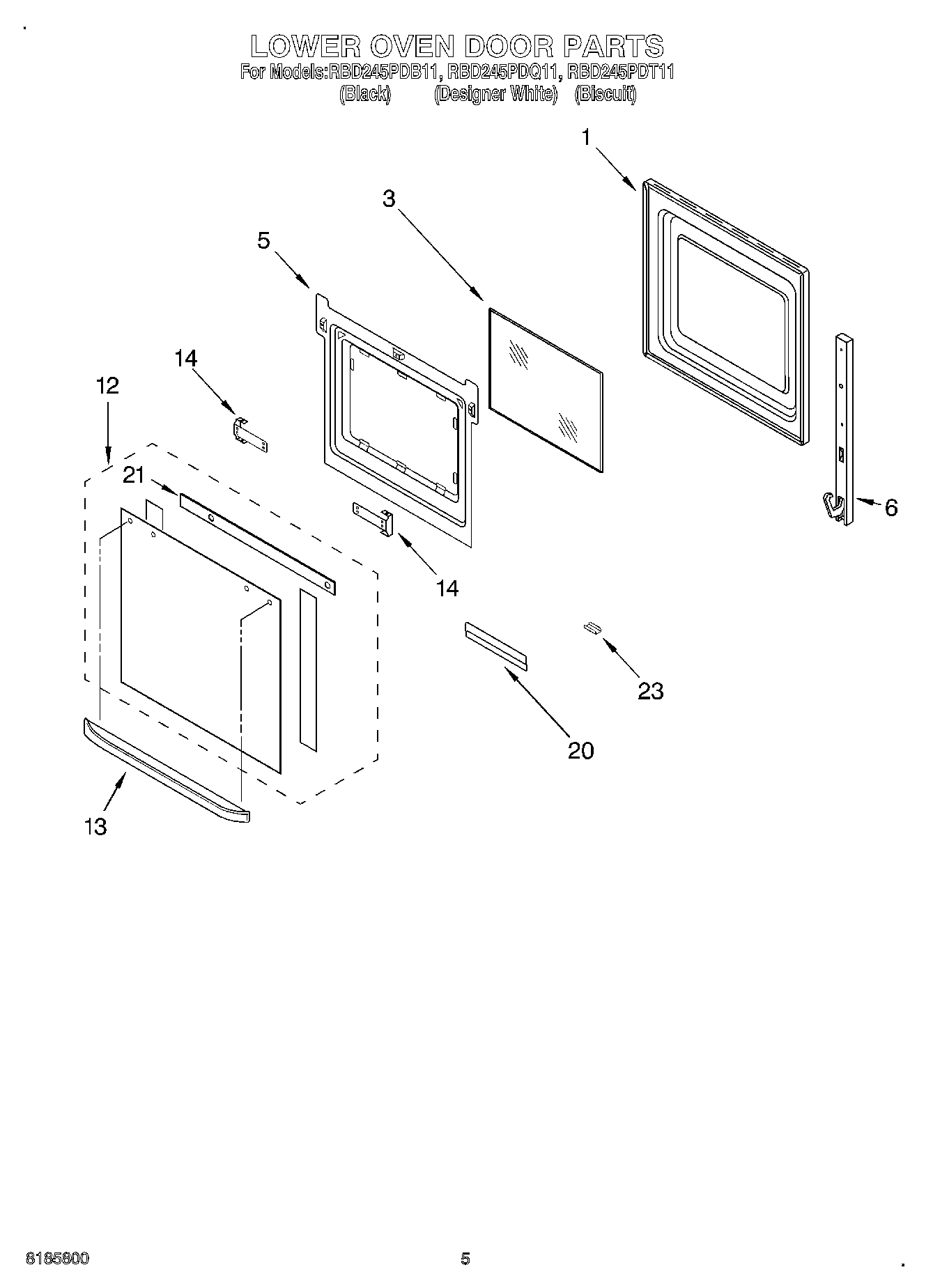

RBD245PDB11 03 – LOWER OVEN DOOR

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
3	WP4449247 Whirlpool Inner Door Glass
5	WP4449809 Whirlpool Screw
6	WP4449743 Whirlpool Screw
6	Hinge, Door
12	Door Glass Assy (White Model)
12	Door Glass Assy (Black Model)
12	Door Glass Assy (Biscuit Model)
13	Door Handle (Black Model)
13	Door Handle (White Model)
13	Door Handle (Biscuit Model)
14	Screw
14	Bracket, Handle
20	Retainer, Glass
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
