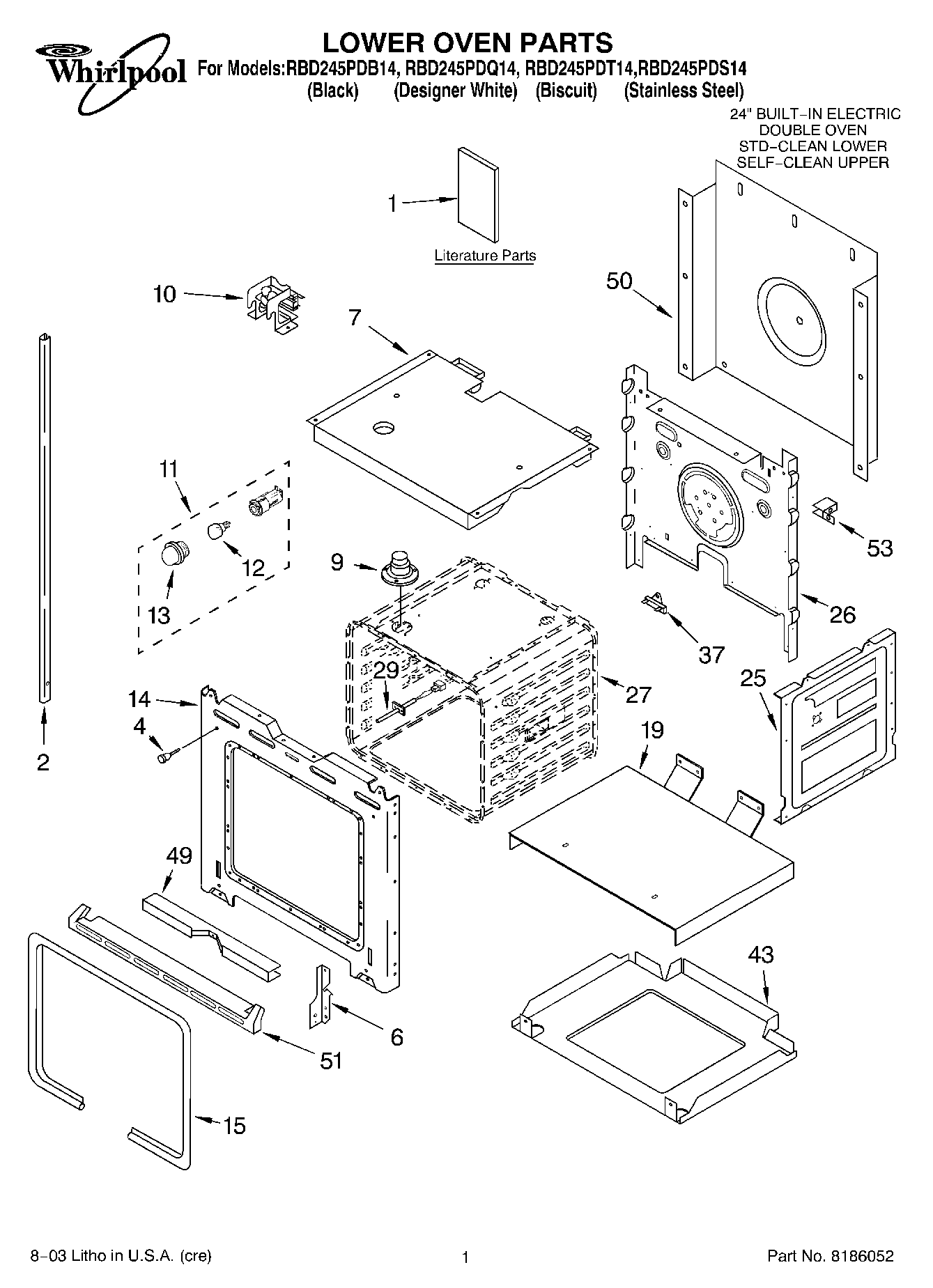

RBD245PDB14 01 – LOWER OVEN PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	Safer Cooking Tips
1	Literature Parts (Installation Instructions)
1	Literature Parts (Tech Sheet (Oven))
1	Literature Parts (Use & Care Guide (English))
2	Trim, Side (Right Hand) (White Model)
2	Trim, Side (LH Biscuit)
2	Trim, Side (LH Black)
2	Trim, Side (Left Hand)) (White Model)
2	Trim, Side (RH Biscuit)
2	Trim, Side (RH Black)
2	Trim, Side (White)
2	WP8281236 Whirlpool Screw
4	4448520 Whirlpool Oven Bumper
6	WP4455605 Whirlpool Left Hand Hinge
6	WP4455606 Whirlpool Right Hand Hinge
7	4455863 Whirlpool Oven Top Assembly
9	W10861715 Whirlpool Vent Tube
9	SCREW
10	Fan & Bracket Assy
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Lens, Light
14	9760754 Whirlpool Oven Front Frame
14	WP4450118 Whirlpool Nut
14	Screw
15	W10203263 Whirlpool Door Gasket
19	4451476 Whirlpool Support
25	W10782197 Whirlpool Side Panel
26	4452232 Whirlpool Oven Rear Cover
27	Liner, Oven (Not serviceable)
29	WPW10131825 Whirlpool Oven Temperature Sensor
37	WP4451354 Whirlpool Thermal Fuse Assembly
43	4450525 Whirlpool Oven Bottom Assembly
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
51	Trim, Bottom (Biscuit Model)
51	Screw, (2)
51	WPL 4448473
51	WPL 4448474
53	WP4450363 Whirlpool Insulation
53	FOLLOWING PARTS NOT ILLUSTRATED INSULATION
53	WPL 4449845
53	WP4449809 Whirlpool Screw
53	WP4449314 Whirlpool Insulation
