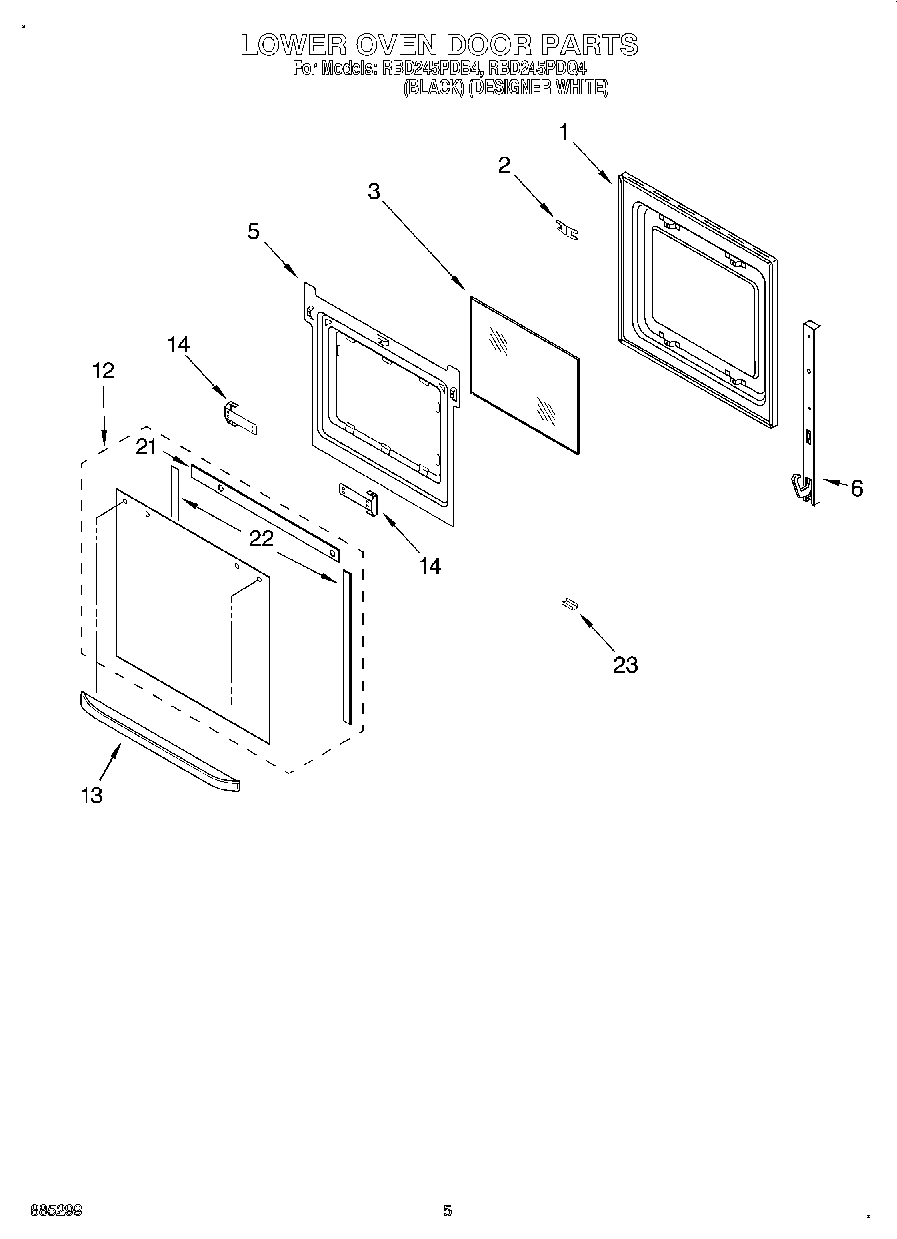

RBD245PDB4 03 – LOWER OVEN DOORadmin2025-04-26T11:23:42+00:00RBD245PDB4 03 – LOWER OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 2 | 4450935 Whirlpool Oven Door Plug |
| 3 | WP4449247 Whirlpool Inner Door Glass |
| 5 | WP4449809 Whirlpool Screw |
| 5 | Retainer, Glass |
| 6 | Hinge, Door |
| 6 | WP4449743 Whirlpool Screw |
| 12 | Door Glass, Outer (White Model) |
| 12 | Door Glass, Outer (Black Model) |
| 13 | Door Handle (White Model) |
| 13 | Door Handle (Black Model) |
| 14 | Bracket, Handle |
| 14 | Screw |
| 21 | Seal, Door Top |
| 22 | Seal, Sides |
| 23 | Clip, Retainer (Black Model) |
| 23 | Clip, Retainer (White Model) |
