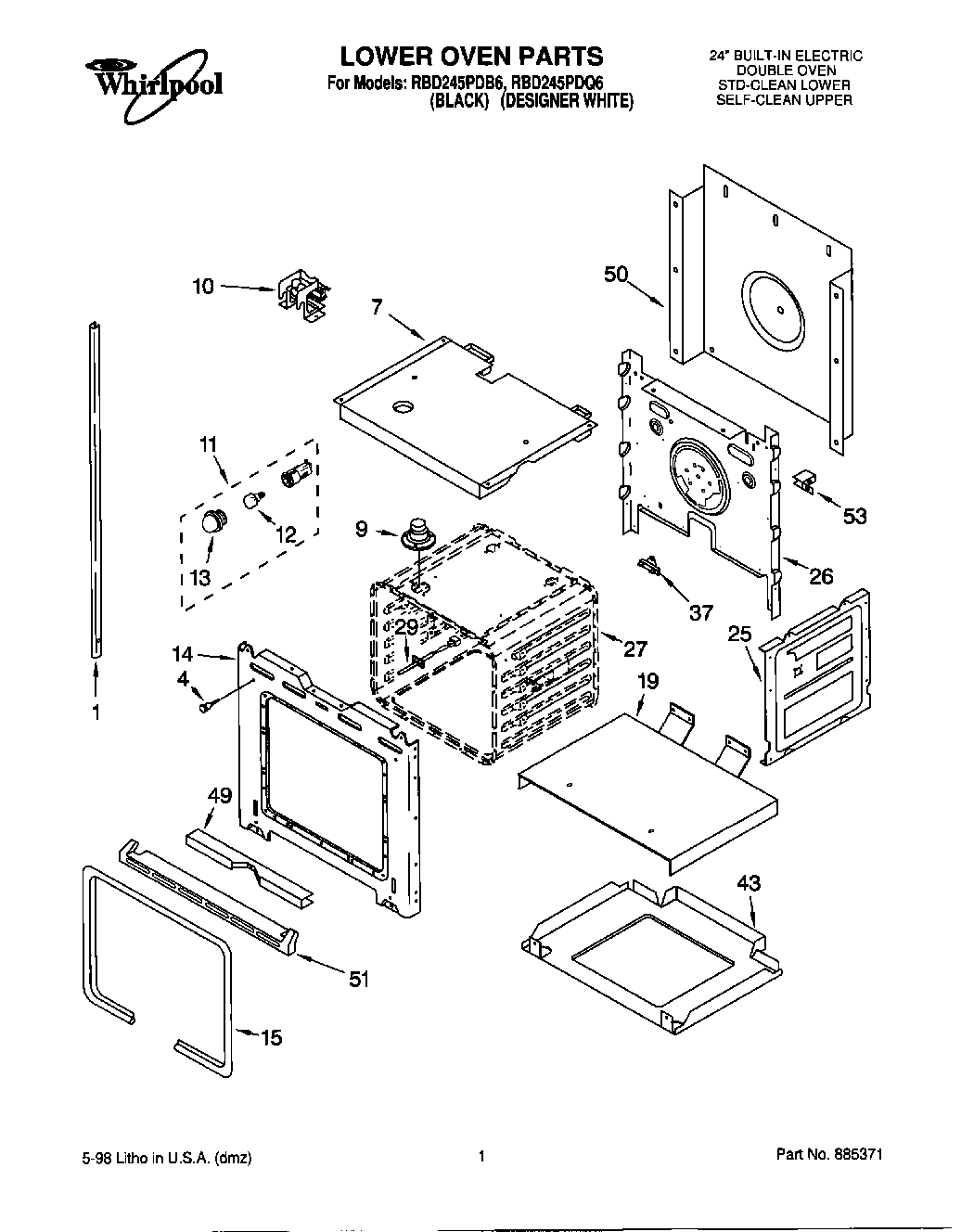

RBD245PDB6 01 – LOWER OVEN

Products

Position	Product
1	Trim, Side (RH Black)
1	Trim, Side (Left Hand)) (White Model)
1	Trim, Side (LH Black)
1	Trim, Side (Right Hand) (White Model)
1	WP8281236 Whirlpool Screw
1	Trim, Side (White)
4	4448520 Whirlpool Oven Bumper
7	4455863 Whirlpool Oven Top Assembly
9	W10861715 Whirlpool Vent Tube
10	Fan & Bracket Assy
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	Lens, Light
14	9760754 Whirlpool Oven Front Frame
14	Screw
14	WP4450118 Whirlpool Nut
15	W10203263 Whirlpool Door Gasket
19	4451476 Whirlpool Support
25	Side, Chassis (R.H. & L.H.)
26	4452232 Whirlpool Oven Rear Cover
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
37	WP4451354 Whirlpool Thermal Fuse Assembly
43	4450525 Whirlpool Oven Bottom Assembly
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
51	WPL 4448473
51	WPL 4448474
51	Screw, (2)
53	WP4449314 Whirlpool Insulation
53	WP4450363 Whirlpool Insulation
53	WPL 4449845
53	WP4449809 Whirlpool Screw
