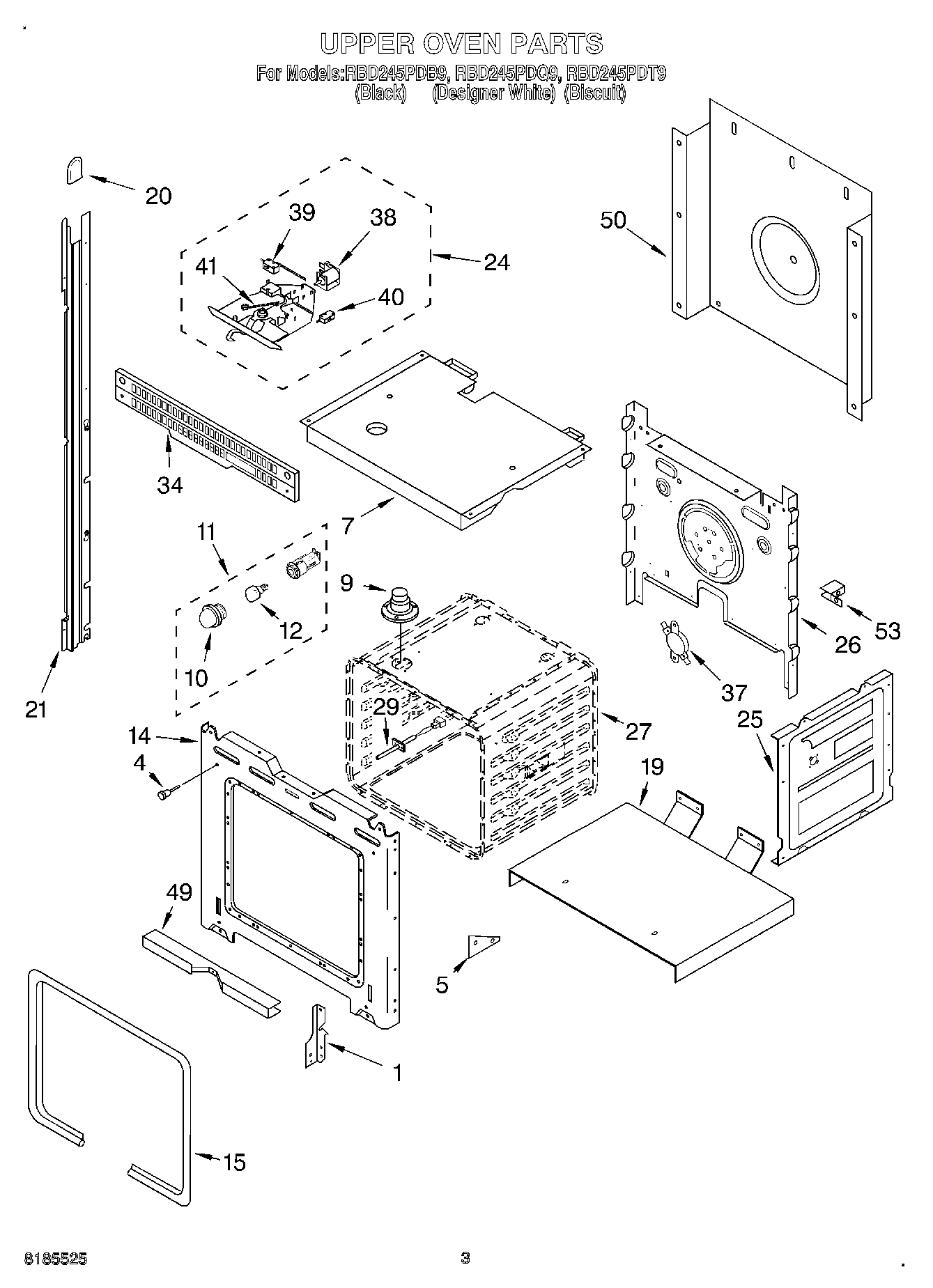

RBD245PDB9 02 – UPPER OVEN

Products

Position	Product
1	Reciever, Hinge (Left Hand)
1	Reciever, Hinge (Right Hand)
4	4448520 Whirlpool Oven Bumper
5	WP4455509 Whirlpool Support Bracket
7	4455863 Whirlpool Oven Top Assembly
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	9760754 Whirlpool Oven Front Frame
14	WP4450118 Whirlpool Nut
14	Screw
15	WP4455380 Whirlpool Door Gasket
19	4451476 Whirlpool Support
20	Cap, Spacer
21	WP4448444 Whirlpool Grommet
21	814374 Whirlpool Oven Rail Mount
21	814373 Whirlpool Oven Rail Mount
24	Latch Assembly
25	Side, Chassis (R.H. & L.H.)
26	4452232 Whirlpool Oven Rear Cover
27	Liner, Oven (Not a Serviceable Part)
29	WPW10131825 Whirlpool Oven Temperature Sensor
34	W10358914 Whirlpool Oven Vent
37	WP9759243 Whirlpool Thermostat
38	Solenoid
39	Microswitch N.C.
40	Microswitch
41	Spring, Latch
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
53	WP4449314 Whirlpool Insulation
53	WP4450363 Whirlpool Insulation
53	WPL 4449845
53	WP4449809 Whirlpool Screw
