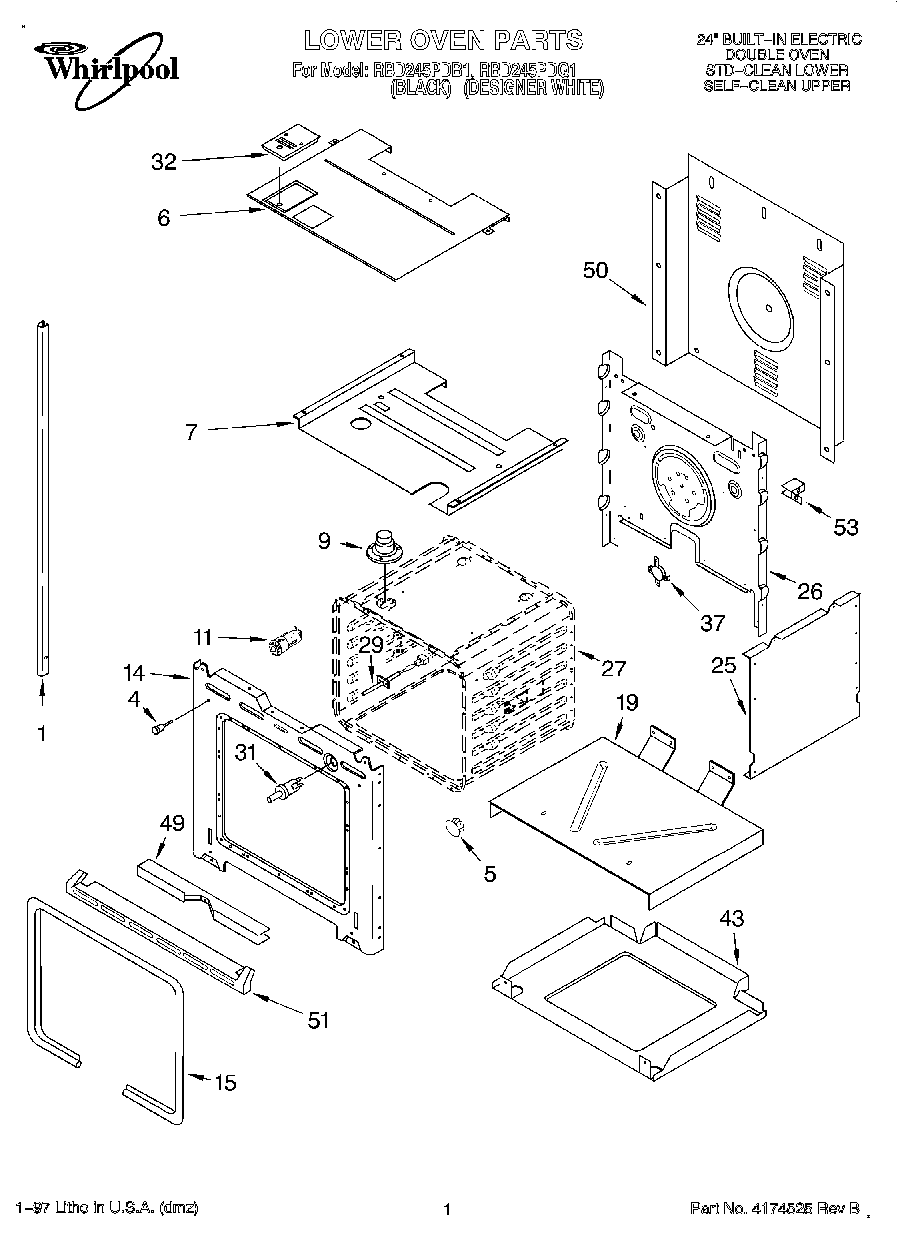

RBD245PDQ1 01 – LOWER OVEN

RBD245PDQ1 01 – LOWER OVEN

Written by

in

RBD245PDQ1 01 – LOWER OVEN

Products

PositionProduct
1Trim, Side (LH Black)
1Trim, Side (Right Hand) (White Model)
1Trim, Side (RH Black)
1Trim, Side (Left Hand)) (White Model)
1Trim, Side (White)
1WP8281236 Whirlpool Screw
44448520 Whirlpool Oven Bumper
5Plug, Button
6Divider, Vent
7Partition
9Tube, Vent
11WPW10734065 Whirlpool Light
14Frame, Front
14Screw
15W10203263 Whirlpool Door Gasket
194451476 Whirlpool Support
25Side, Chassis (R.H. & L.H.)
264452232 Whirlpool Oven Rear Cover
27Liner, Oven (Not a Serviceable Part)
29Sensor
31Switch, Door
32Vent Box Assy
37WP4450249 Whirlpool Thermostat
434450525 Whirlpool Oven Bottom Assembly
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50Cover, Back
51Screw, (2)
51WPL 4448473
51WPL 4448474
53WP4449314 Whirlpool Insulation
53WP4450363 Whirlpool Insulation
53WPL 4449845
53WP4449809 Whirlpool Screw
