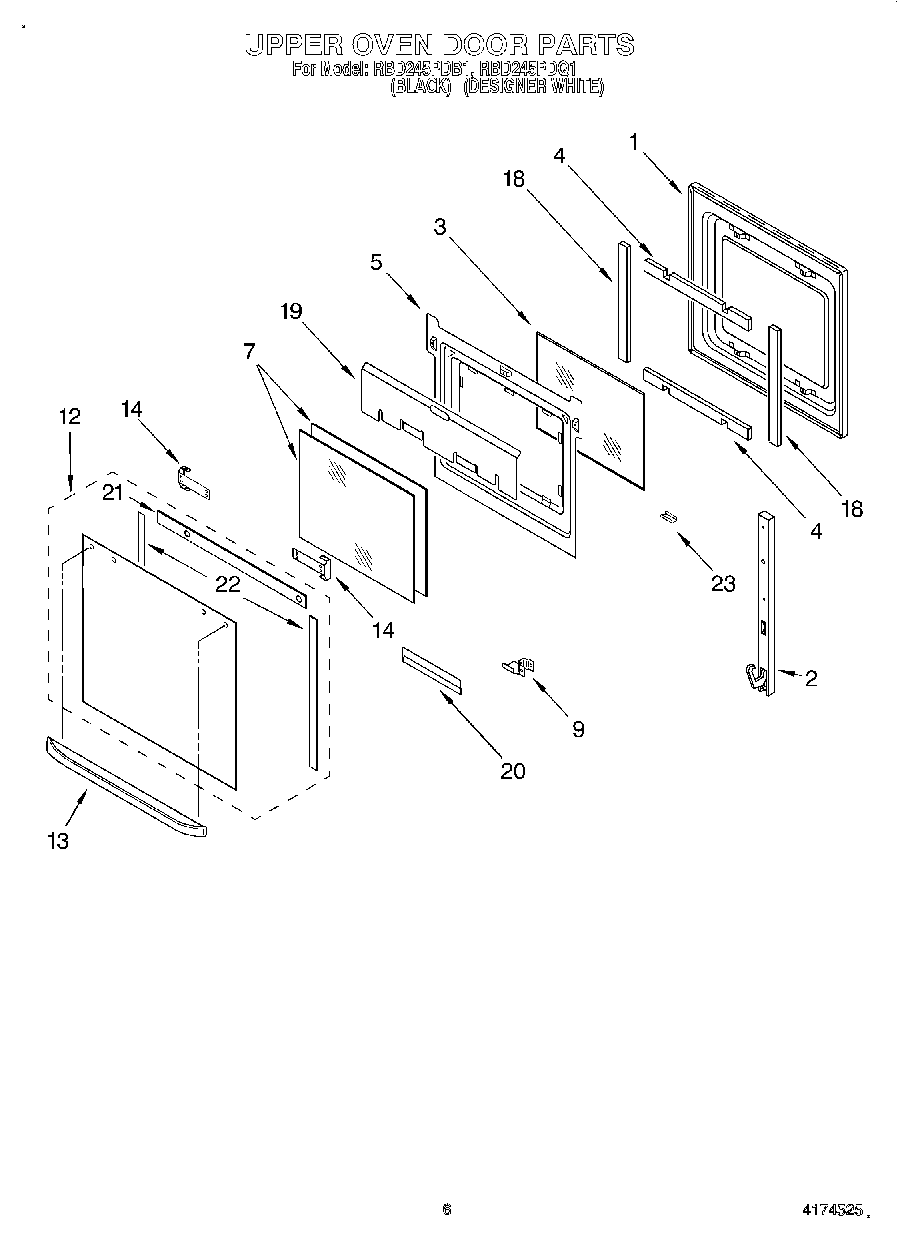

RBD245PDQ1 04 – UPPER OVEN DOOR

Products

Position	Product
1	Liner, Door
2	WP4455523 Whirlpool Oven Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449247 Whirlpool Inner Door Glass
4	Insulation, Top and Bottom Door
5	Retainer, Glass
7	Glass, Inner
9	Retainer, Glass
12	Door Glass, Outer (Black Model)
12	Door Glass, Outer (White Model)
13	Door Handle (Black Model)
13	Door Handle (White Model)
14	Bracket, Handle
14	Screw
18	W11688413 Whirlpool Insulation
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
22	Seal, Sides
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
