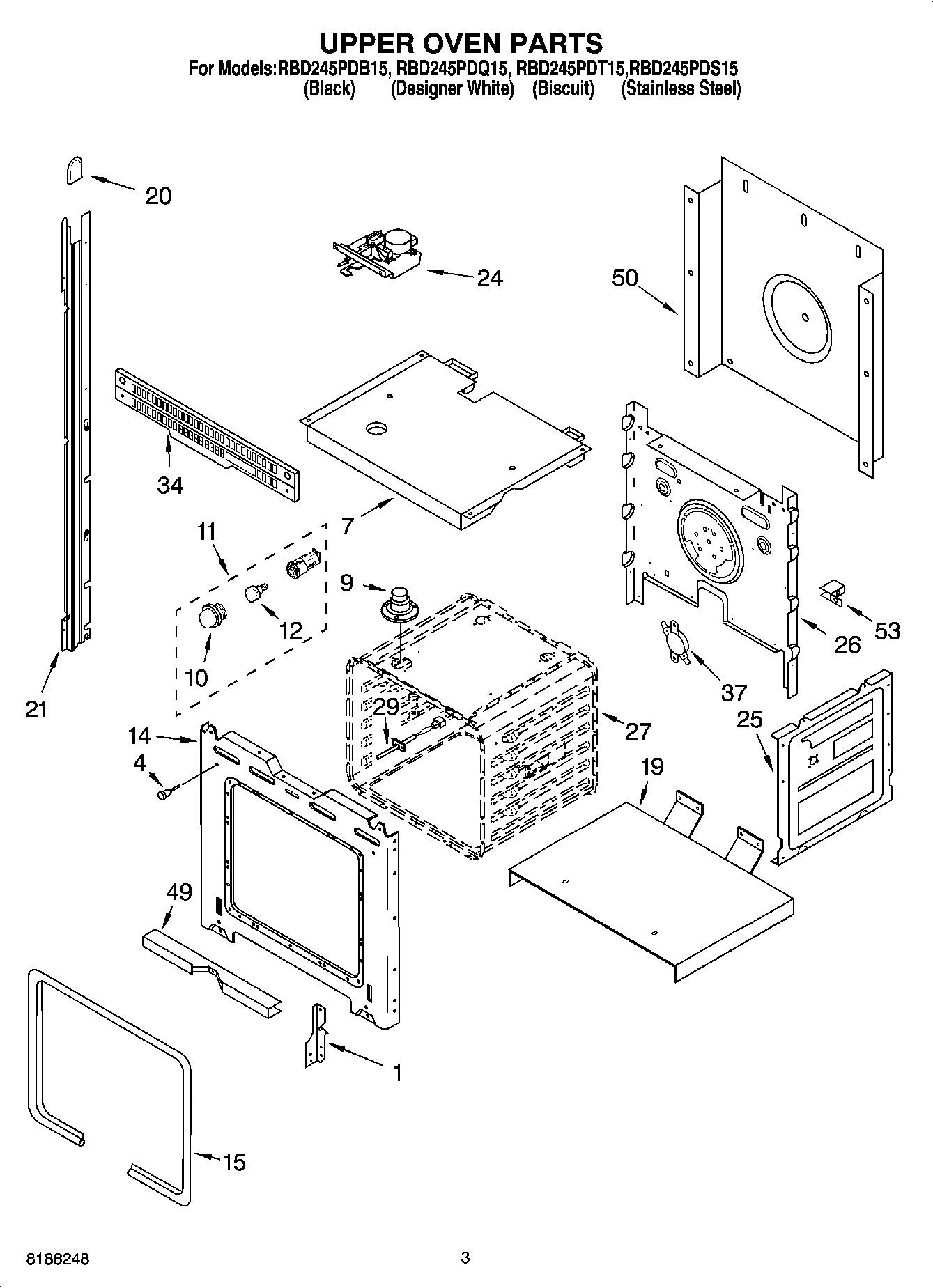

RBD245PDQ15 02 – UPPER OVEN PARTS

Products

PositionProduct
1WP4455605 Whirlpool Left Hand Hinge
1WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
74455863 Whirlpool Oven Top Assembly
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14WP4450118 Whirlpool Nut
149760754 Whirlpool Oven Front Frame
15WP4455380 Whirlpool Door Gasket
194451476 Whirlpool Support
20Cap, Spacer
21814373 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814374 Whirlpool Oven Rail Mount
24WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
264452232 Whirlpool Oven Rear Cover
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
34W10358914 Whirlpool Oven Vent
37WP9759243 Whirlpool Thermostat
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
53WP4450363 Whirlpool Insulation
53WP4449314 Whirlpool Insulation
53WP4449809 Whirlpool Screw
53WPL 4449845
53FOLLOWING PARTS NOT ILLUSTRATED INSULATION
