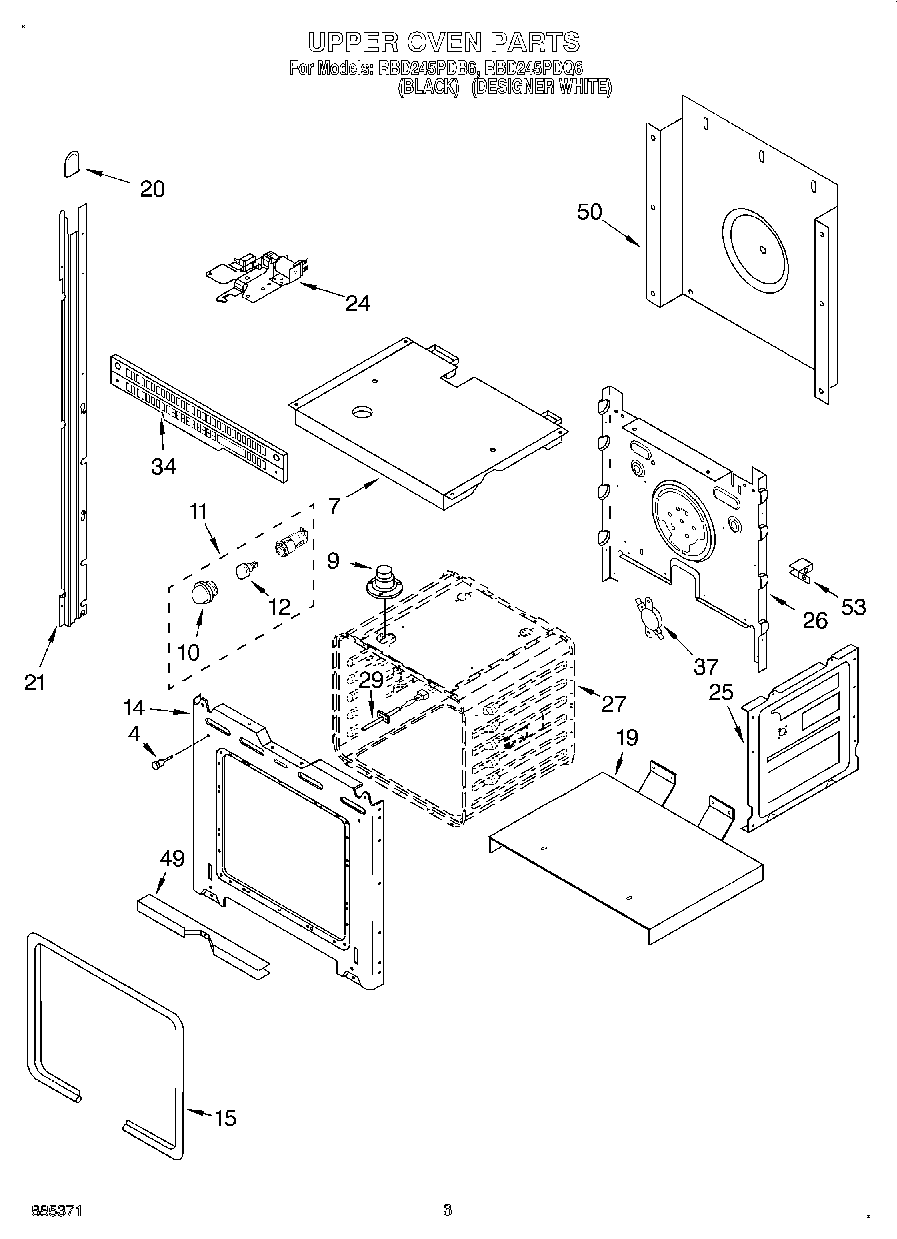

RBD245PDQ6 02 – UPPER OVEN

RBD245PDQ6 02 – UPPER OVEN

Written by

in

RBD245PDQ6 02 – UPPER OVEN

Products

PositionProduct
44448520 Whirlpool Oven Bumper
74455863 Whirlpool Oven Top Assembly
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15WP4455380 Whirlpool Door Gasket
194451476 Whirlpool Support
20Cap, Spacer
21814373 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814374 Whirlpool Oven Rail Mount
24Latch Assembly
25Side, Chassis (R.H. & L.H.)
264452232 Whirlpool Oven Rear Cover
27Liner, Oven (Not a Serviceable Part)
29Sensor
34W10358914 Whirlpool Oven Vent
37WP9759243 Whirlpool Thermostat
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
53WP4450363 Whirlpool Insulation
53WP4449314 Whirlpool Insulation
53WPL 4449845
53WP4449809 Whirlpool Screw
