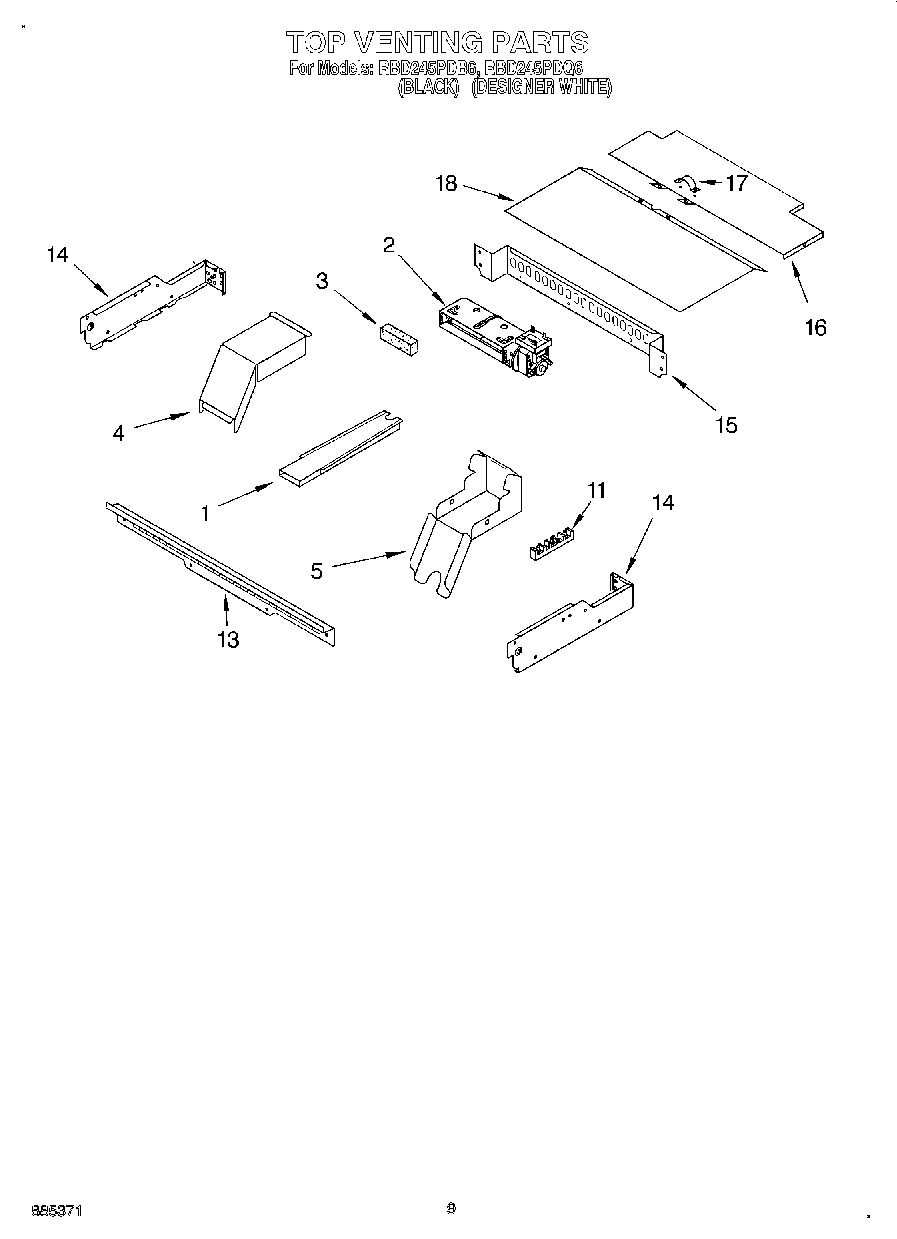

RBD245PDQ6 07 – TOP VENTING, OPTIONAL

RBD245PDQ6 07 – TOP VENTING, OPTIONAL

Written by

in

RBD245PDQ6 07 – TOP VENTING, OPTIONAL

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
2WPW10016550 Whirlpool Blower Cooling Fan
3W10491987 Whirlpool Foam Seal
44455178 Whirlpool Oven Top Elbow
54455177 Whirlpool Oven Bottom Elbow
11WP3387230 Whirlpool Screw
11WP8203546 Whirlpool Terminal Block
134448547 Whirlpool Oven Vent Control
13WP4450038 Whirlpool Screw
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
14WP4449154 Whirlpool Screw
15Back, Control
164450549 Whirlpool Oven Top Cover
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Yellow)
18Harness, Wire STD (Main)
18Wire (12 Ga. 150 c Black)
18Wire (14 Ga. 150 c Orange)
1818 Ga. 80~c Rating (Red)
18Wire (14 Ga. 200 c Brown)
18Cover, Top Front
181
18261900 Whirlpool Microwave Spray
184451761 Whirlpool Oven Support Bracket
18WPL 591014
18Wire (14 Ga. 150 c Brown)
184450800 Whirlpool Oven Screw
184448664 Whirlpool Oven Mounting Bracket
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18350930 Whirlpool White Spray Paint
18WP112432 Whirlpool Nut Assembly
18WP4449809 Whirlpool Screw
18WPW10339879 Whirlpool Wire Tie
18285006 Whirlpool Spray
1872032 Whirlpool Touch Up Paint Black
18Wire (14 Ga. 150 c Blue)
18WP261869 Whirlpool Microwave Paint
18242831 Whirlpool Oven Wire
18Spacer, Harness
18Conduit, Double
18WP4448950 Whirlpool Screw
18814381 Whirlpool Pin
18WP482338 Whirlpool Refrigerator Adhesive
1872017 Whirlpool Appliance Touch-Up Paint White
