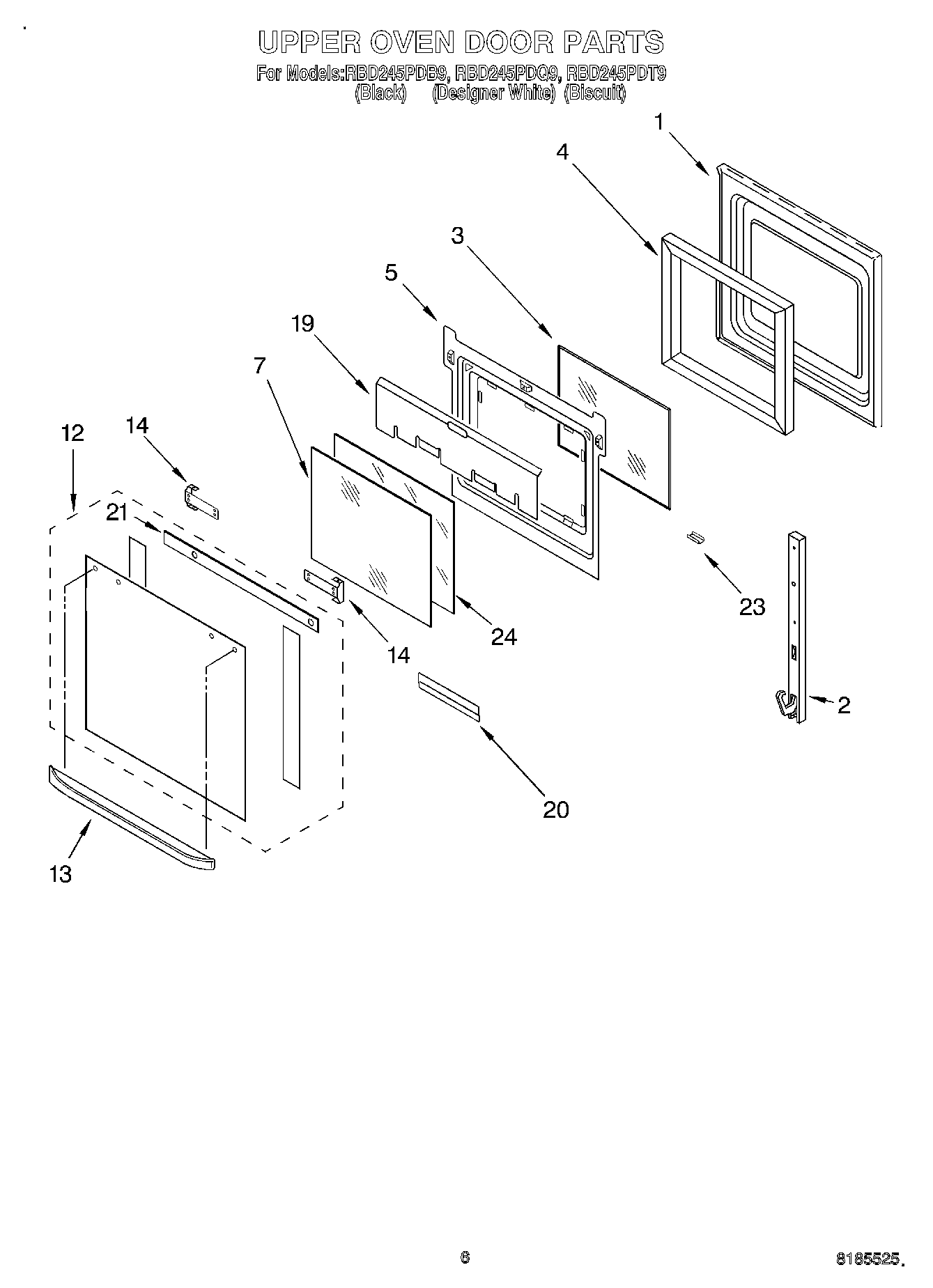

RBD245PDQ9 04 – UPPER OVEN DOOR

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	WP4455524 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
5	Retainer, Glass
7	Glass, Inner
12	Door Glass Assy (Black Model)
12	Door Glass Assy (Biscuit Model)
12	Door Glass Assy (White Model)
13	Door Handle (Biscuit Model)
13	Door Handle (White Model)
13	Door Handle (Black Model)
14	Screw
14	Bracket, Handle
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	Glass, Inner
