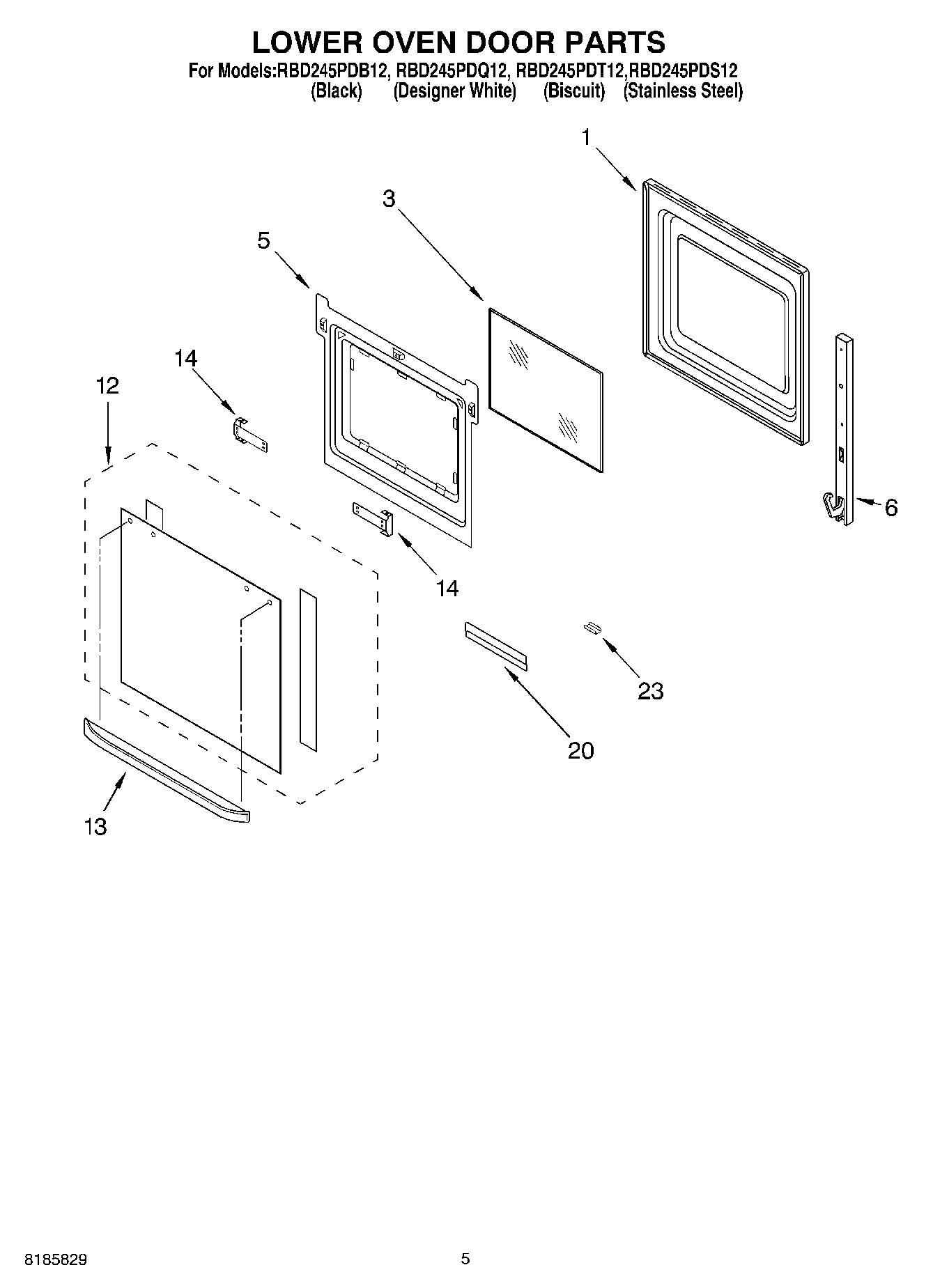

RBD245PDS12 03 – LOWER OVEN DOOR

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
3	WP4449247 Whirlpool Inner Door Glass
5	WP4449809 Whirlpool Screw
5	4457130 Whirlpool Oven Retainer
6	Hinge, Door (Left Side)
6	WP9760563 Whirlpool Door Hinge
6	WP4449743 Whirlpool Screw
12	Door Glass, Assy (S.Steel Model)
12	Door Glass Assy (White Model)
12	Door Glass Assy (Black Model)
12	Door Glass Assy (Biscuit Model)
13	Door Handle (Black Model)
13	Door Handle (White Model)
13	Door Handle (Biscuit Model)
14	Screw
14	Bracket, Handle
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
