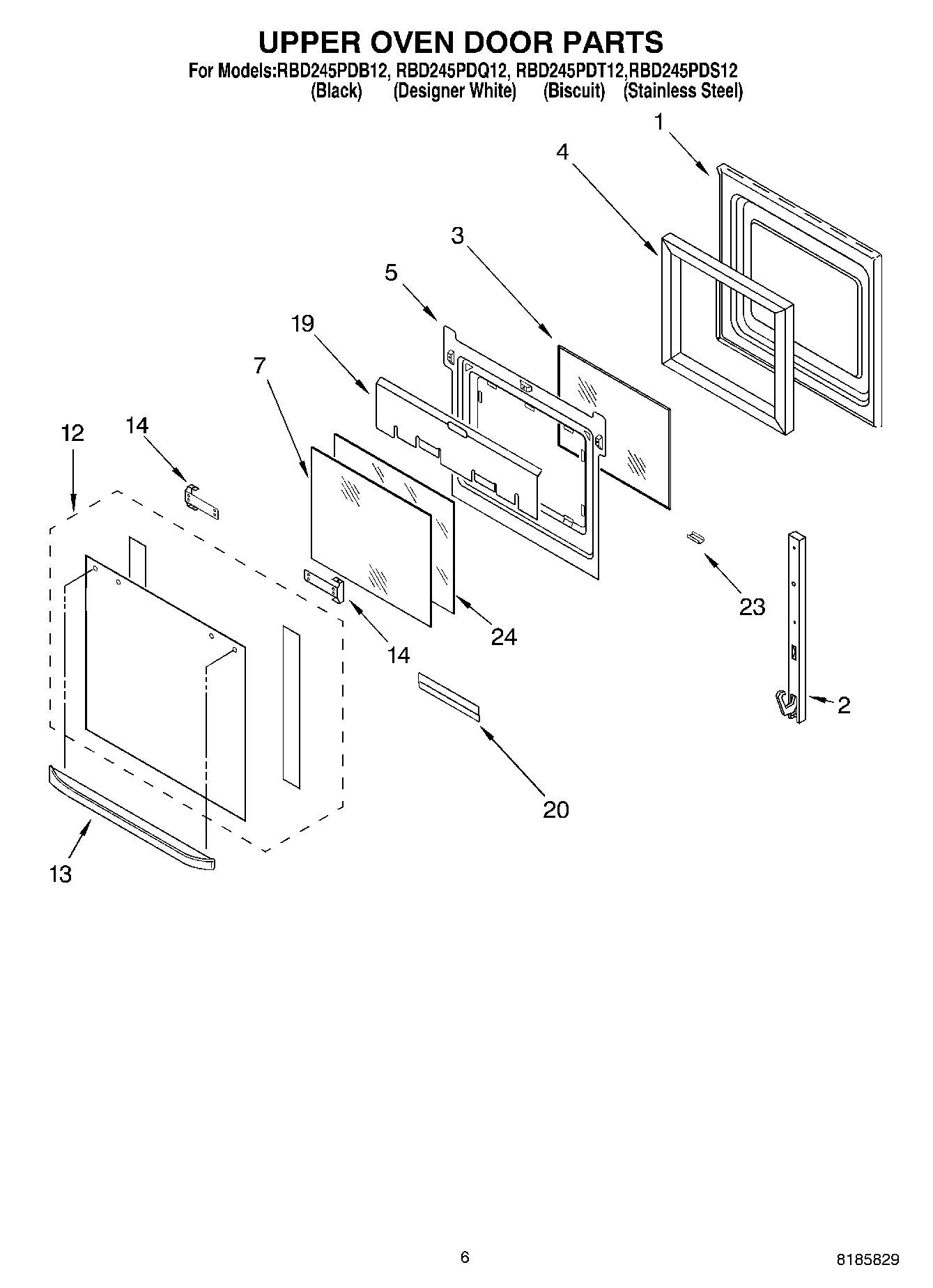

RBD245PDS12 04 – UPPER OVEN DOOR

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	Hinge, Door (Right Side)
2	Hinge, Door (Left Side)
2	WP4449743 Whirlpool Screw
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
5	4457130 Whirlpool Oven Retainer
7	Glass, Inner
12	Door Glass Assy (Black Model)
12	Door Glass Assy (White Model)
12	Door Glass, Assy (S.Steel Model)
12	Door Glass Assy (Biscuit Model)
13	Door Handle (Biscuit Model)
13	Door Handle (White Model)
13	Door Handle (Black Model)
14	Bracket, Handle
14	Screw
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	Glass, Inner
