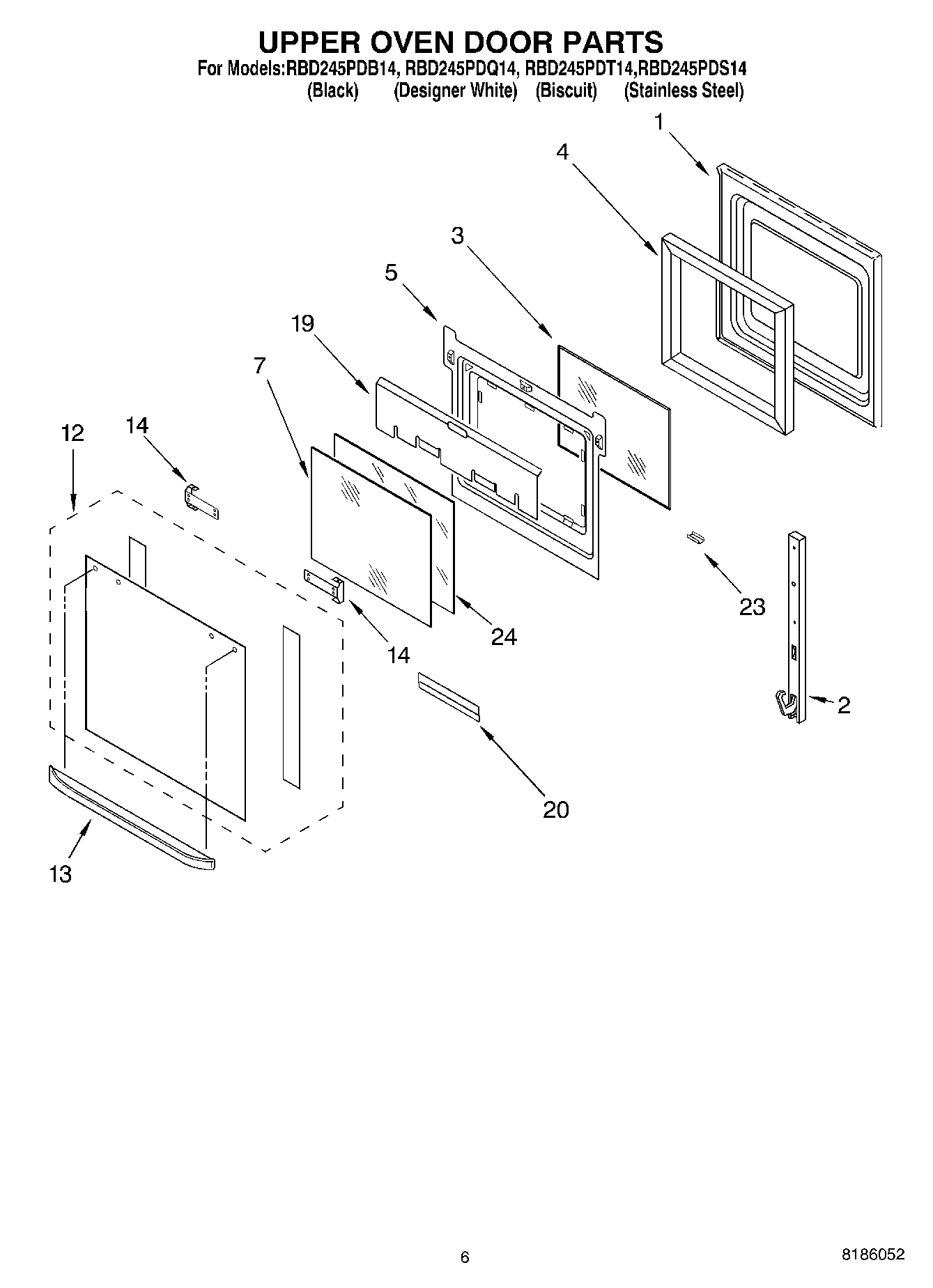

RBD245PDS14 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	WP8303698 Whirlpool Door Liner
2	Hinge, Door (Left Side)
2	Hinge, Door (Right Side)
2	WP4449743 Whirlpool Screw
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
5	4457130 Whirlpool Oven Retainer
7	Glass, Inner
12	Door Glass Assy (Biscuit Model)
12	Door Glass, Assy (S.Steel Model)
12	Door Glass Assy (Black Model)
12	Door Glass Assy (White Model)
13	Door Handle (Biscuit Model)
13	Door Handle (White Model)
13	Door Handle (Black Model)
14	Screw
14	Bracket, Handle
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	Glass, Inner
