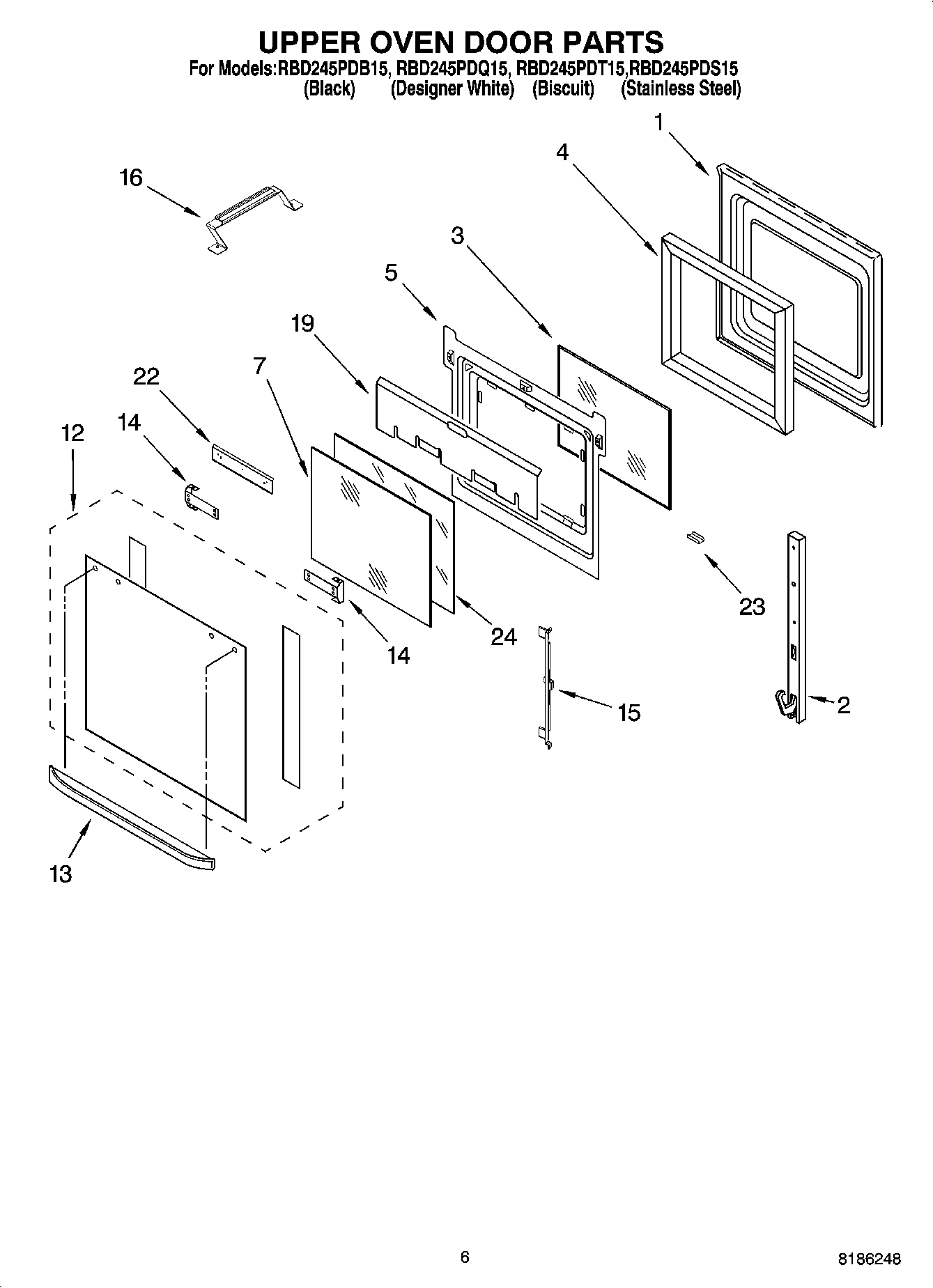

RBD245PDS15 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	Hinge, Door (Right Side)
2	WP4449743 Whirlpool Screw
2	Hinge, Door (Left Side)
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
5	4457130 Whirlpool Oven Retainer
7	WP9759223 Whirlpool Door Glass
12	Door Glass Assy (Biscuit Model)
12	Door Glass Assy (Black Model)
12	Door Glass Assy (S.Steel Model)
12	Door Glass Assy (White Model)
13	Door Handle (Biscuit Model)
13	Door Handle (White Model)
13	Door Handle (Black Model)
14	Screw
14	Bracket, Handle
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	4457101 Whirlpool Oven Shield
19	WP4449809 Whirlpool Screw
22	4457112 Whirlpool Oven Heat Shield
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	WP9759226 Whirlpool Door Glass
