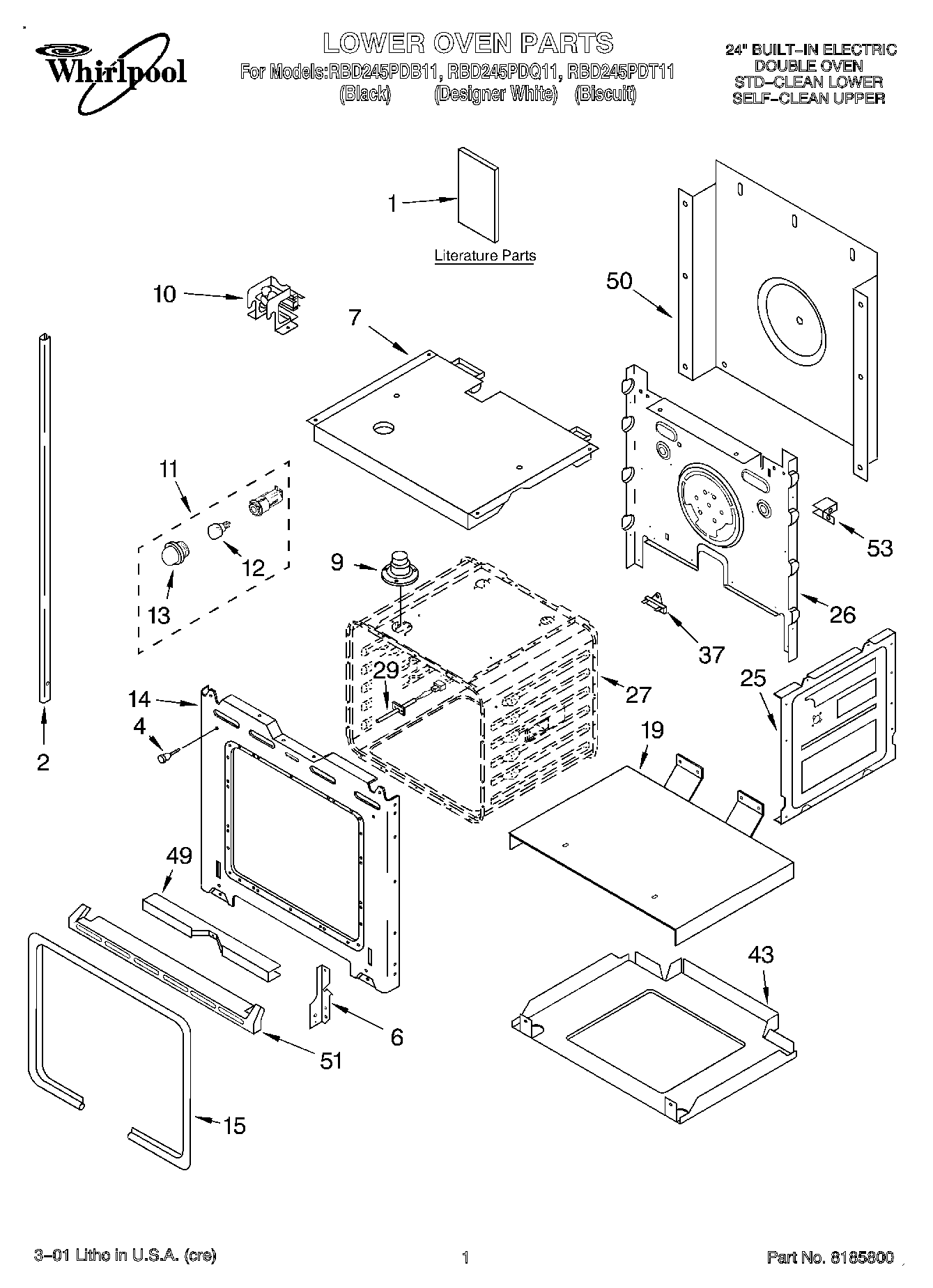

RBD245PDT11 01 – LOWER OVEN, LITERATURE
Written by
in
RBD245PDT11 01 – LOWER OVEN, LITERATURE
Products
Position
Product
1
Safer Cooking Tips
1
Literature Parts (Use & Care Guide (Oven))
1
Literature Parts (Installation Instructions)
1
Literature Parts (Tech Sheet)
2
Trim, Side (Right Hand) (White Model)
2
Trim, Side (White)
2
Trim, Side (RH Biscuit)
2
WP8281236 Whirlpool Screw
2
Trim, Side (LH Black)
2
Trim, Side (Left Hand)) (White Model)
2
Trim, Side (LH Biscuit)
2
Trim, Side (RH Black)
4
4448520 Whirlpool Oven Bumper
6
Reciever, Hinge (Left Hand)
6
Reciever, Hinge (Right Hand)
7
4455863 Whirlpool Oven Top Assembly
9
W10861715 Whirlpool Vent Tube
9
SCREW
10
Fan & Bracket Assy
11
WPW10734065 Whirlpool Light
12
WP4173175 Whirlpool Light Bulb
13
Lens, Light
14
WP4450118 Whirlpool Nut
14
9760754 Whirlpool Oven Front Frame
14
Screw
15
W10203263 Whirlpool Door Gasket
19
4451476 Whirlpool Support
25
W10782197 Whirlpool Side Panel
26
4452232 Whirlpool Oven Rear Cover
27
Liner, Oven (Not a Serviceable Part)
29
WPW10131825 Whirlpool Oven Temperature Sensor
37
WP4451354 Whirlpool Thermal Fuse Assembly
43
4450525 Whirlpool Oven Bottom Assembly
49
WP4448933 Whirlpool Retainer
49
WP4449154 Whirlpool Screw
50
WP4451747 Whirlpool Rear Cover
51
Trim, Bottom (Biscuit Model)
51
Screw, (2)
51
WPL 4448474
51
WPL 4448473
53
WP4449314 Whirlpool Insulation
53
WP4449809 Whirlpool Screw
53
WPL 4449845
53
WP4450363 Whirlpool Insulation
←
