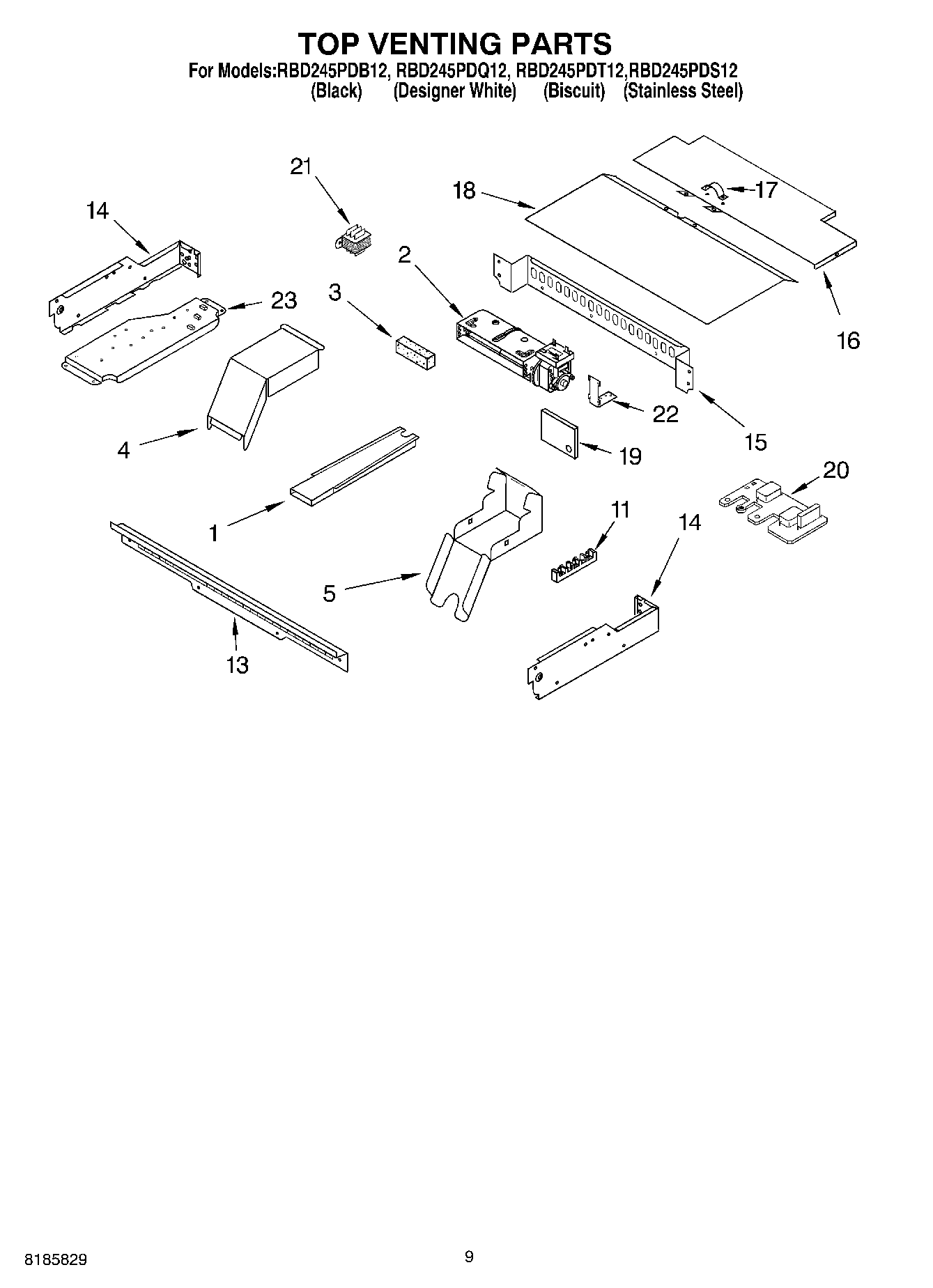

RBD245PDT12 07 – TOP VENTING

RBD245PDT12 07 – TOP VENTING

Written by

in

RBD245PDT12 07 – TOP VENTING

Products

Position	Product
1	4451759 Whirlpool Oven Exhaust Vent
2	WPW10016550 Whirlpool Blower Cooling Fan
2	Blower
3	W10491987 Whirlpool Foam Seal
4	4455178 Whirlpool Oven Top Elbow
5	4455177 Whirlpool Oven Bottom Elbow
11	Screw
11	WP8203546 Whirlpool Terminal Block
13	4448547 Whirlpool Oven Vent Control
13	WP4450038 Whirlpool Screw
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
14	WP4449809 Whirlpool Screw
14	WP4449154 Whirlpool Screw
15	Back, Control
16	4450549 Whirlpool Oven Top Cover
18	Cover, Top Front
19	Plate, Fan
20	WP4451985 Whirlpool Noise Filter Board
21	Transformer, Control
22	WP4455352 Whirlpool Mounting Bracket
23	Plate, Mounting
23	Wire (12 Ga. 150 c Black)
23	18 Ga. 80~c Rating (Red)
23	Wire (14 Ga. 200 c Brown)
23	1
23	4451761 Whirlpool Oven Support Bracket
23	WPL 591014
23	261900 Whirlpool Microwave Spray
23	Wire, 25` Roll (Red 14 Ga.)
23	Harness, Wire STD (Main)
23	Wire (14 Ga. 150 c Yellow)
23	72032 Whirlpool Touch Up Paint Black
23	285006 Whirlpool Spray
23	WPW10339879 Whirlpool Wire Tie
23	4450800 Whirlpool Oven Screw
23	4448664 Whirlpool Oven Mounting Bracket
23	Wire, 25“ Roll (White 14 GA.)
23	Wire, 25` Roll (Black 14 Ga.)
23	WP112432 Whirlpool Nut Assembly
23	72017 Whirlpool Appliance Touch-Up Paint White
23	WP482338 Whirlpool Refrigerator Adhesive
23	814381 Whirlpool Pin
23	Wire (14 Ga. 150 c Orange)
23	Wire (14 Ga. 150 c Green)
23	Spacer, Harness
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	WP261869 Whirlpool Microwave Paint
23	242831 Whirlpool Oven Wire
23	Conduit, Double
23	WP4448950 Whirlpool Screw
23	350930 Whirlpool White Spray Paint
