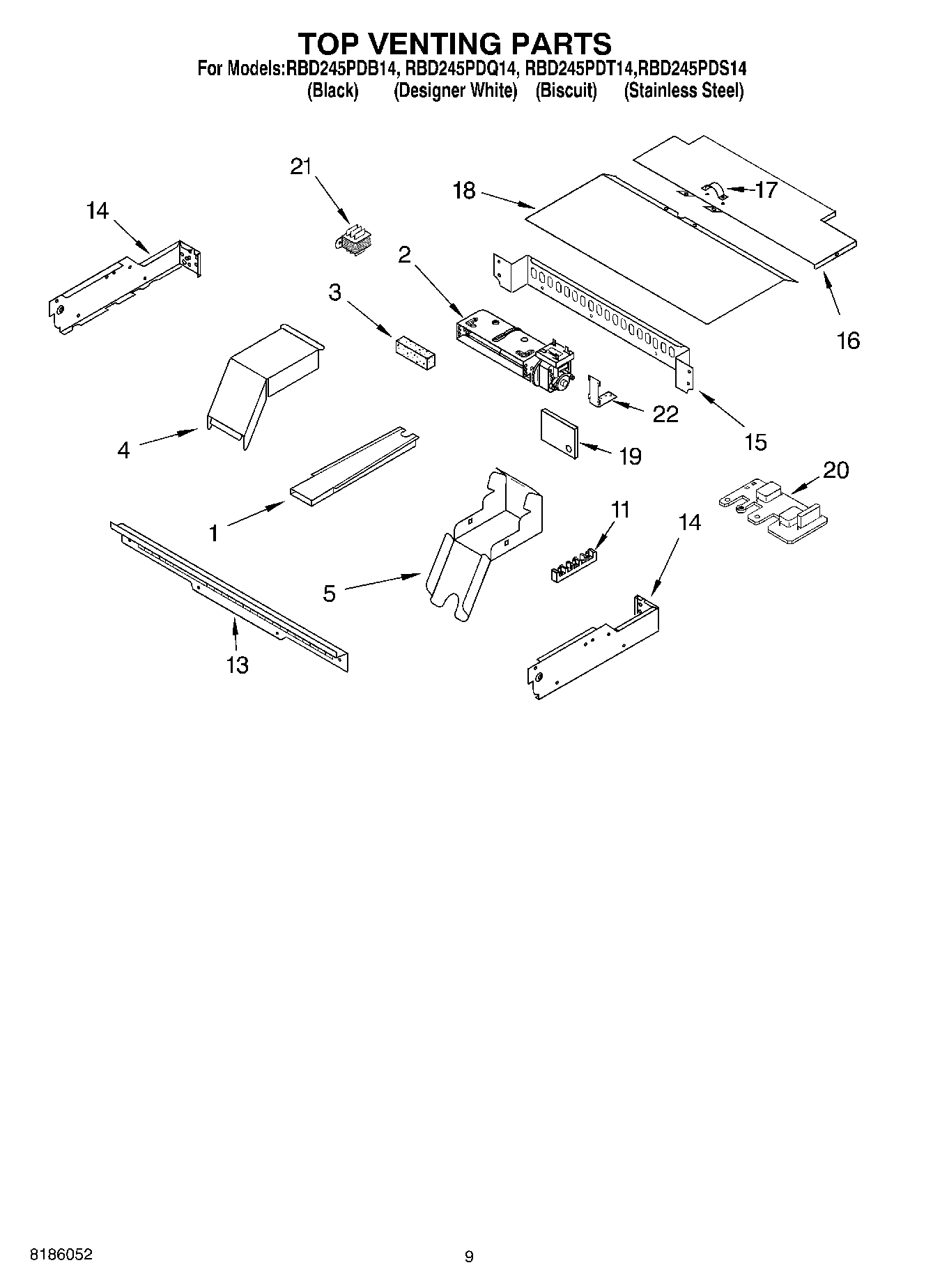

RBD245PDT14 07 – TOP VENTING PARTS, OPTIONAL PARTS

RBD245PDT14 07 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

RBD245PDT14 07 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI119775A
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 200 c Brown)
1
WPL ARI119774A
WPL ARI119773A
WPL ARI119772A
8302154 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
WPL ARI119776A
4451761 Whirlpool Oven Support Bracket
WPL 591014
242831 Whirlpool Oven Wire
Spacer, Harness
Conduit, Double
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
4448664 Whirlpool Oven Mounting Bracket
WP112432 Whirlpool Nut Assembly
4450800 Whirlpool Oven Screw
WPW10339879 Whirlpool Wire Tie
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
Wire, 25“ Roll (White 14 GA.)
350930 Whirlpool White Spray Paint
WP4448950 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
14451759 Whirlpool Oven Exhaust Vent
2Blower
2WPW10016550 Whirlpool Blower Cooling Fan
3W10491987 Whirlpool Foam Seal
44455178 Whirlpool Oven Top Elbow
54455177 Whirlpool Oven Bottom Elbow
11WP8203546 Whirlpool Terminal Block
11Screw
13WP4450038 Whirlpool Screw
134448547 Whirlpool Oven Vent Control
14WP4449809 Whirlpool Screw
14WP4449154 Whirlpool Screw
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
164450549 Whirlpool Oven Top Cover
18Cover, Top Front
19Plate, Fan
20SUPPRESSOR
21Transformer, Control
22WP4455352 Whirlpool Mounting Bracket
