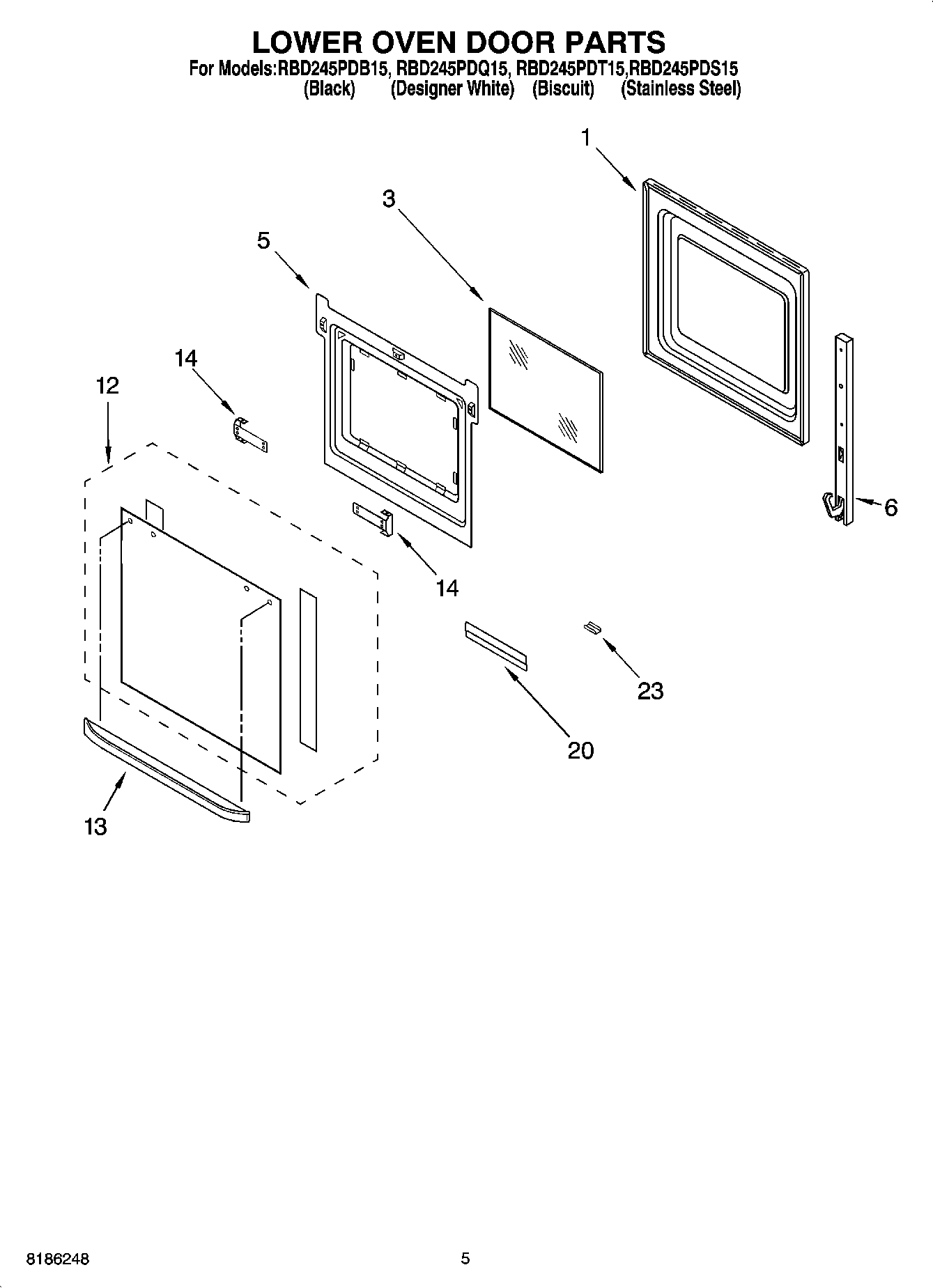

RBD245PDT15 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
3	WP4449247 Whirlpool Inner Door Glass
5	WP4449809 Whirlpool Screw
5	4457130 Whirlpool Oven Retainer
6	WP4449743 Whirlpool Screw
6	Hinge, Door (Left Side)
6	WP9760563 Whirlpool Door Hinge
12	Door Glass Assy (Black Model)
12	Door Glass Assy (White Model)
12	Door Glass Assy (Biscuit Model)
12	Door Glass, Assy (S.Steel Model)
13	Door Handle (Black Model)
13	Door Handle (White Model)
13	Door Handle (Biscuit Model)
14	Screw
14	Bracket, Handle
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
