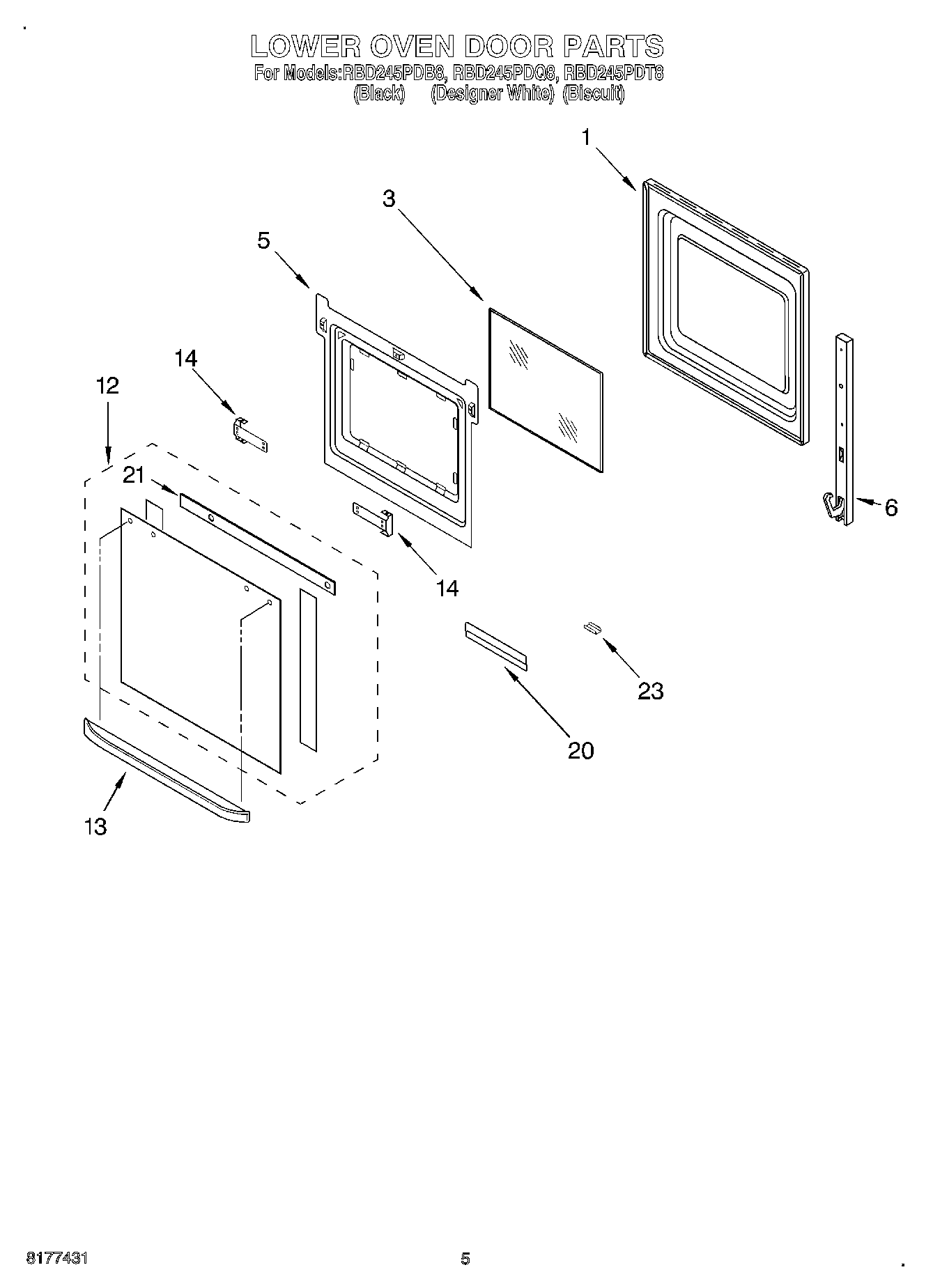

RBD245PDT8 03 – LOWER OVEN DOOR

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
3	WP4449247 Whirlpool Inner Door Glass
5	WP4449809 Whirlpool Screw
6	Hinge, Door
6	WP4449743 Whirlpool Screw
12	Door Glass Assy (Biscuit Model)
12	Door Glass Assy (White Model)
12	Door Glass Assy (Black Model)
13	Door Handle (White Model)
13	Door Handle (Black Model)
13	Door Handle (Biscuit Model)
14	Bracket, Handle
14	Screw
20	Retainer, Glass
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
