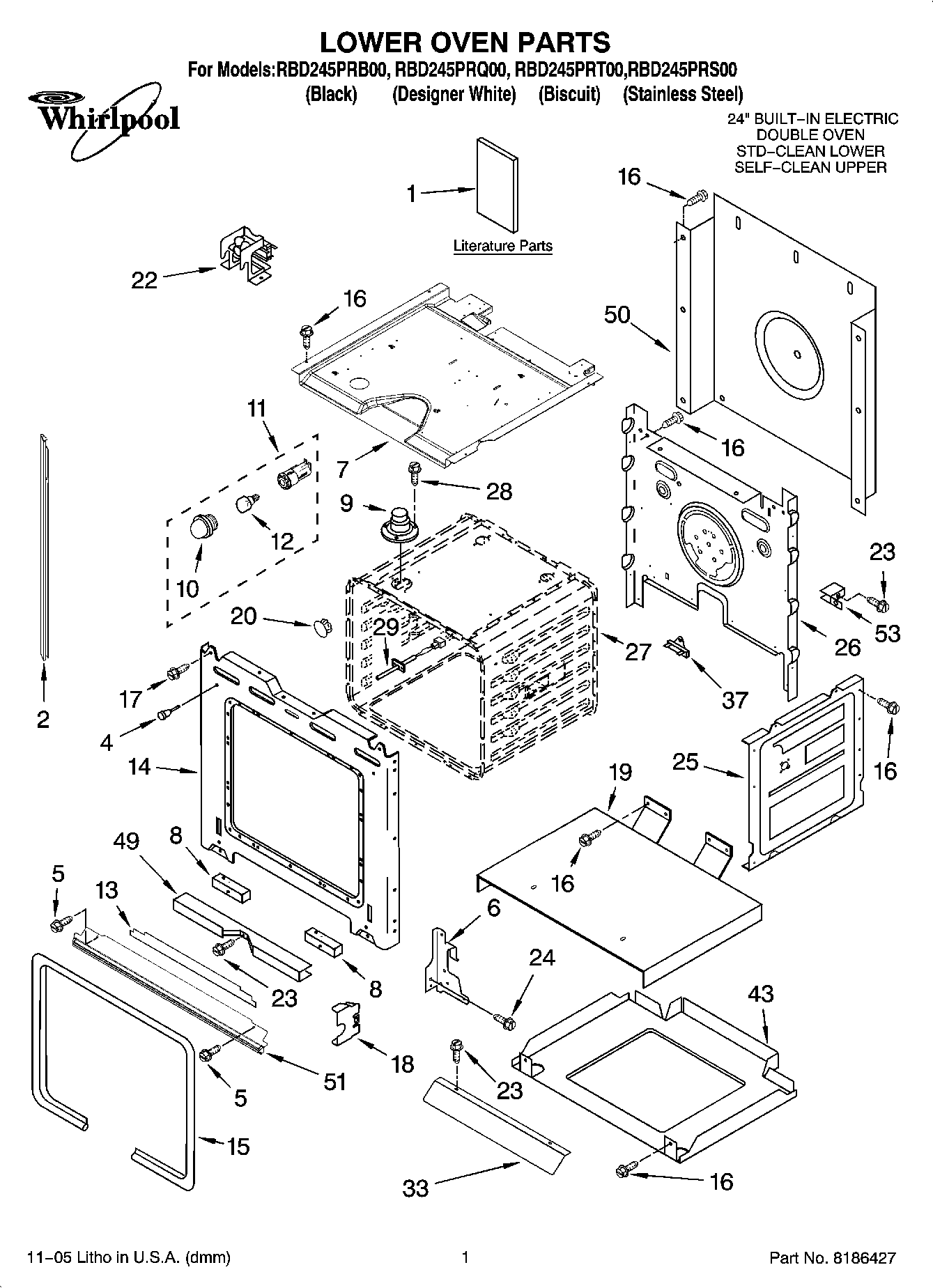

RBD245PRB00 01 – LOWER OVEN PARTS

RBD245PRB00 01 – LOWER OVEN PARTS

Written by

in

RBD245PRB00 01 – LOWER OVEN PARTS

Products

PositionProduct
1Safe Cooking Tips
1Use & Care Guide (Oven)
1Tech Sheet (Oven)
1Installation Instructions
2W10339503 Whirlpool Trim
2WPW10339499 Whirlpool Trim Assembly
2WPW10339500 Whirlpool Trim
2WPW10339502 Whirlpool Trim Kit
2Trim, Side (RH White)
2Trim, Side (LH Biscuit)
44448520 Whirlpool Oven Bumper
5WP3400832 Whirlpool Screw
5WP3400805 Whirlpool Screw Assembly
6WP4455606 Whirlpool Right Hand Hinge
6WP4455605 Whirlpool Left Hand Hinge
74455863 Whirlpool Oven Top Assembly
8Spacer, Foam
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Insulation, Bottom Vent
149760754 Whirlpool Oven Front Frame
15W10203263 Whirlpool Door Gasket
16WP4449809 Whirlpool Screw
17Screw
184452152 Whirlpool Oven Mounting Bracket
194451476 Whirlpool Support
204450935 Whirlpool Oven Door Plug
22WPW10016550 Whirlpool Blower Cooling Fan
23WP4449154 Whirlpool Screw
24WP4449743 Whirlpool Screw
25W10782197 Whirlpool Side Panel
264452232 Whirlpool Oven Rear Cover
27Liner, Oven (Not serviceable)
28SCREW
29WPW10131825 Whirlpool Oven Temperature Sensor
33Deflector, Vent
37WP4451354 Whirlpool Thermal Fuse Assembly
434450525 Whirlpool Oven Bottom Assembly
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (Black)
51Trim, Bottom (White Model)
51Trim, Bottom (Biscuit Model)
53WP4449314 Whirlpool Insulation
53WP4450363 Whirlpool Insulation
53WPL 4449845
53FOLLOWING PARTS NOT ILLUSTRATED INSULATION
