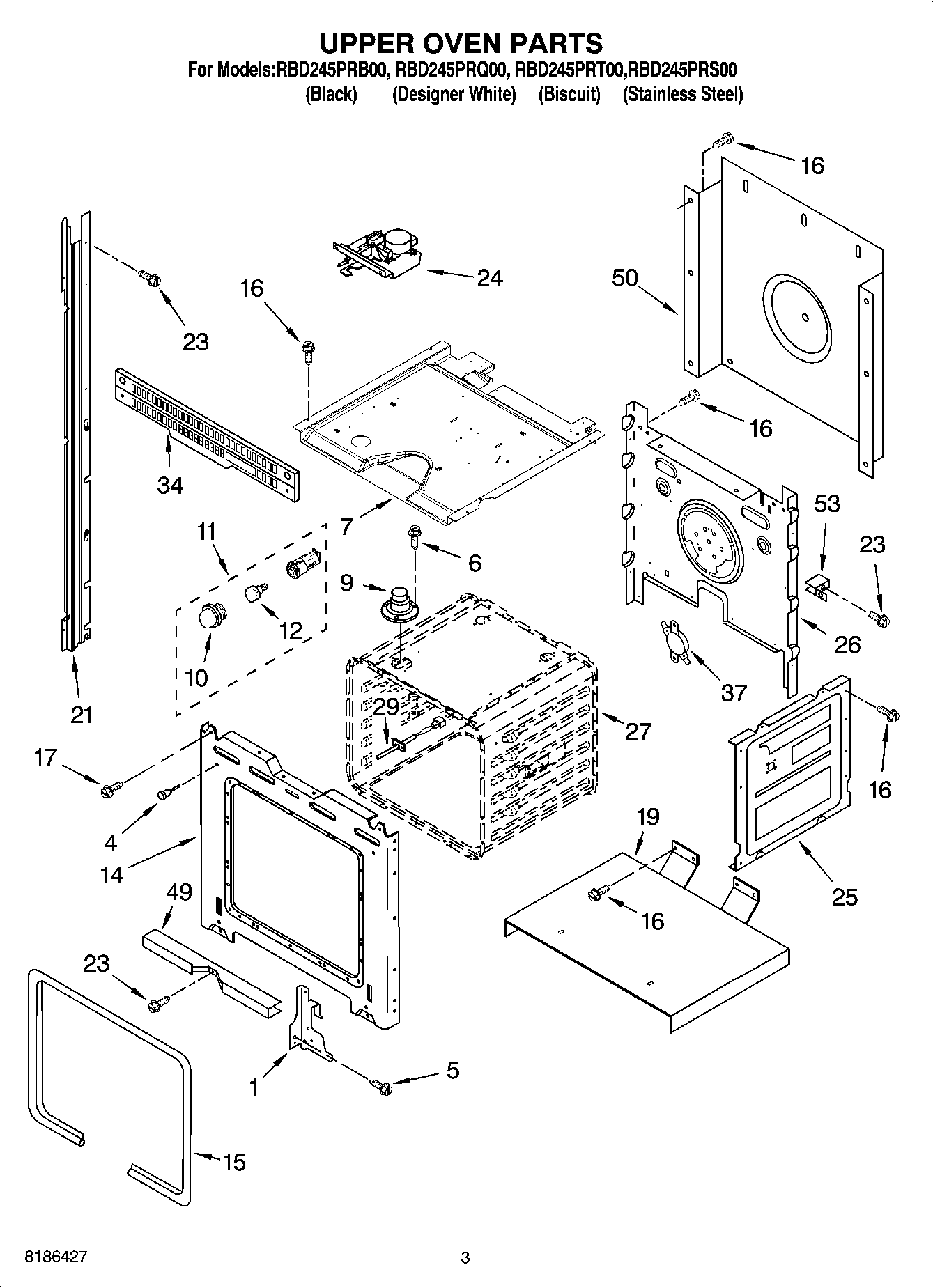

RBD245PRB00 02 – UPPER OVEN PARTS

Products

Position	Product
1	WP4455605 Whirlpool Left Hand Hinge
1	WP4455606 Whirlpool Right Hand Hinge
4	4448520 Whirlpool Oven Bumper
5	WP4449743 Whirlpool Screw
6	SCREW
7	4455863 Whirlpool Oven Top Assembly
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	9760754 Whirlpool Oven Front Frame
15	WP4455380 Whirlpool Door Gasket
17	Screw
19	4451476 Whirlpool Support
19	WP4449809 Whirlpool Screw
21	WP8302793 Whirlpool Mounting Rail
21	Rail, Side (Left)
21	WP4448444 Whirlpool Grommet
23	WP4449154 Whirlpool Screw
24	WP9760889 Whirlpool Door Latch
25	W10782197 Whirlpool Side Panel
26	4452232 Whirlpool Oven Rear Cover
27	Liner, Oven (Not serviceable)
29	WPW10131825 Whirlpool Oven Temperature Sensor
34	W10358914 Whirlpool Oven Vent
37	WP9759243 Whirlpool Thermostat
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
53	WPL 4449845
53	WP4450363 Whirlpool Insulation
53	WP4449314 Whirlpool Insulation
53	FOLLOWING PARTS NOT ILLUSTRATED INSULATION
