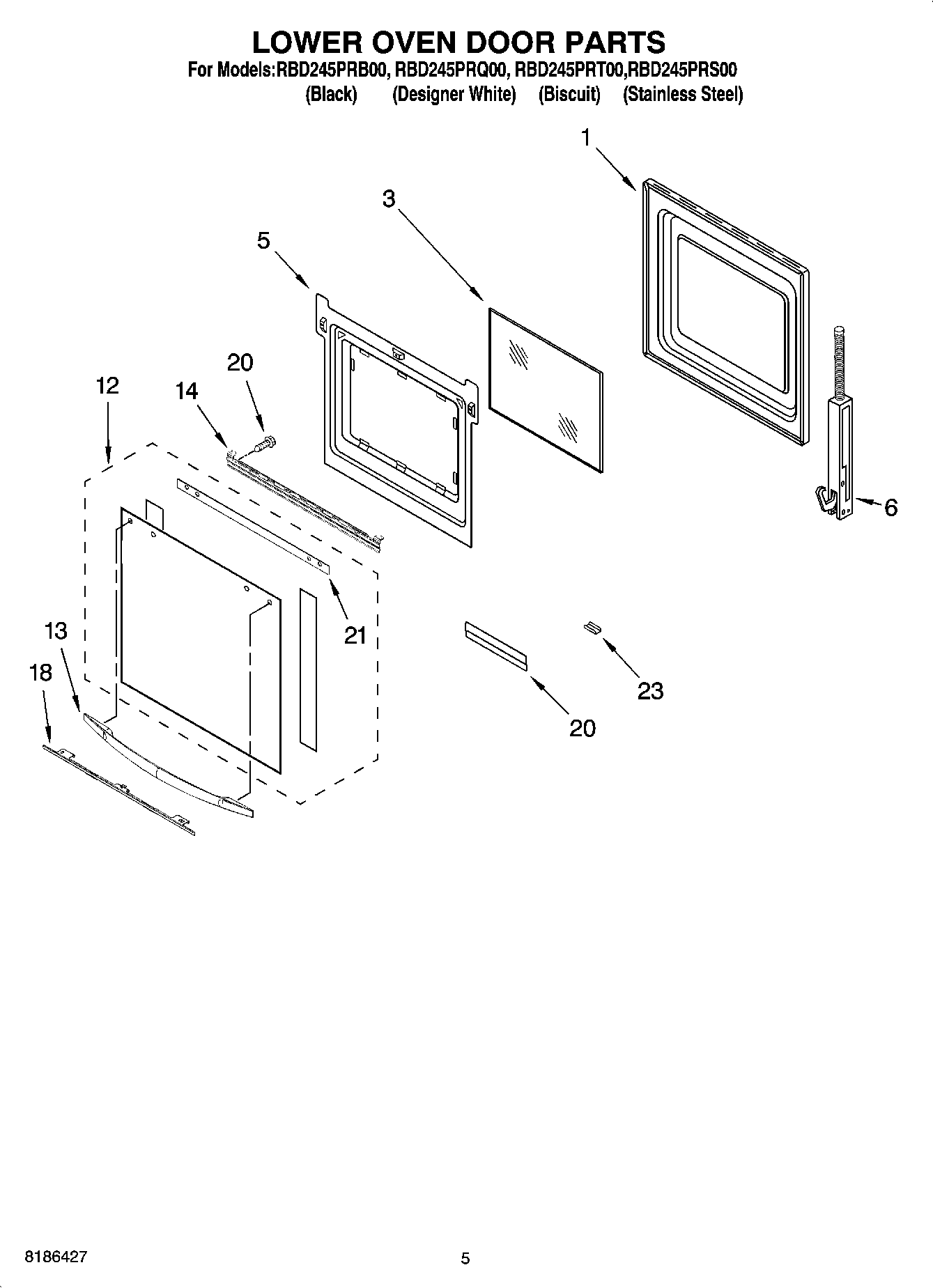

RBD245PRB00 03 – LOWER OVEN DOOR PARTS

RBD245PRB00 03 – LOWER OVEN DOOR PARTS

Written by

in

RBD245PRB00 03 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1WP8303698 Whirlpool Door Liner
3WP4449247 Whirlpool Inner Door Glass
54457130 Whirlpool Oven Retainer
6WP9760563 Whirlpool Door Hinge
6Hinge, Door (Left)
12Assembly, Door Glass (Biscuit)
12Assembly, Door Glass (White)
12Assembly, Door Glass (Black)
12Assembly, Door Glass (Stainless)
13Door Handle (Biscuit)
13Door Handle (White)
13Door Handle (Black)
14Bracket, Handle
18Retainer, Door (Black)
18Retainer, Door (Biscuit)
18Retainer, Door (White)
20Screw
21Seal, Door
23Retainer, Glass-Clip (Stainless Steel)
