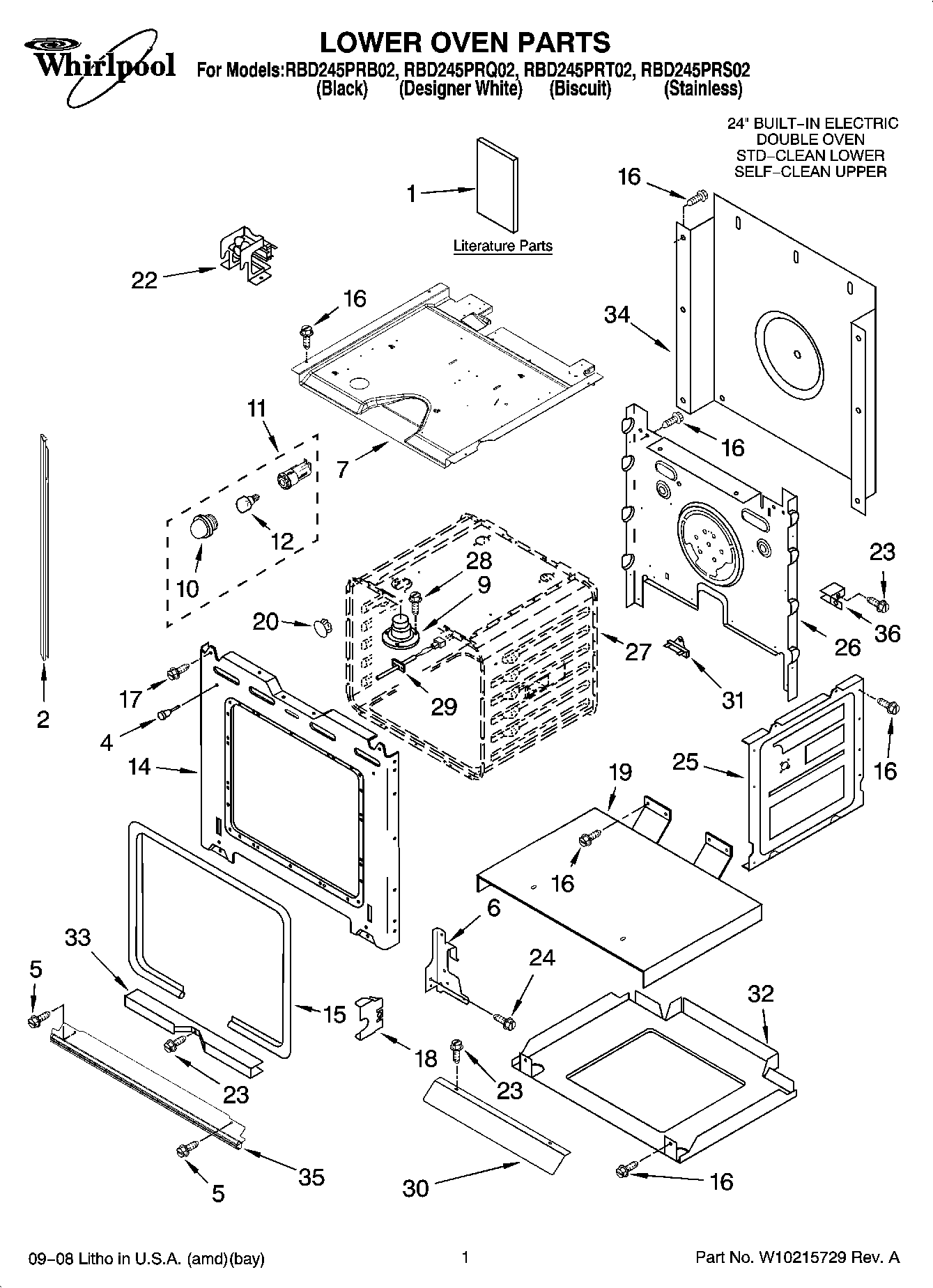

RBD245PRB02 01 – LOWER OVEN PARTS

Products

Position	Product
	WP4450363 Whirlpool Insulation
	Insulation
	WP4449314 Whirlpool Insulation
	Following Parts Not Illustrated
1	Tech Sheet (Oven)
1	Installation Instructions
1	Use & Care Guide
1	SAFER COOKING TIPS (ENGLISH
2	W10339503 Whirlpool Trim
2	Trim, Side Left (Biscuit)
2	Trim, Side Right (White)
2	WPW10339500 Whirlpool Trim
2	WPW10339502 Whirlpool Trim Kit
4	WPW10339499 Whirlpool Trim Assembly
5	WP3400832 Whirlpool Screw
5	WP3400805 Whirlpool Screw Assembly
6	WP4455606 Whirlpool Right Hand Hinge
6	WP4455605 Whirlpool Left Hand Hinge
7	4455863 Whirlpool Oven Top Assembly
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	9760754 Whirlpool Oven Front Frame
15	W10203263 Whirlpool Door Gasket
16	WP4449809 Whirlpool Screw
17	Screw
18	4452152 Whirlpool Oven Mounting Bracket
19	4451476 Whirlpool Support
20	4450935 Whirlpool Oven Door Plug
22	Fan & Bracket Assy
23	WP4449154 Whirlpool Screw
24	WP4449743 Whirlpool Screw
25	W10782197 Whirlpool Side Panel
26	4452232 Whirlpool Oven Rear Cover
27	Liner, Oven (Not serviceable)
28	SCREW
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Deflector, Vent
31	WP4451354 Whirlpool Thermal Fuse Assembly
32	4450525 Whirlpool Oven Bottom Assembly
33	WP4448933 Whirlpool Retainer
34	WP4451747 Whirlpool Rear Cover
35	Trim, Bottom (Biscuit)
35	Trim, Bottom (White)
35	Trim, Bottom (Black)
36	WPL 4449845
