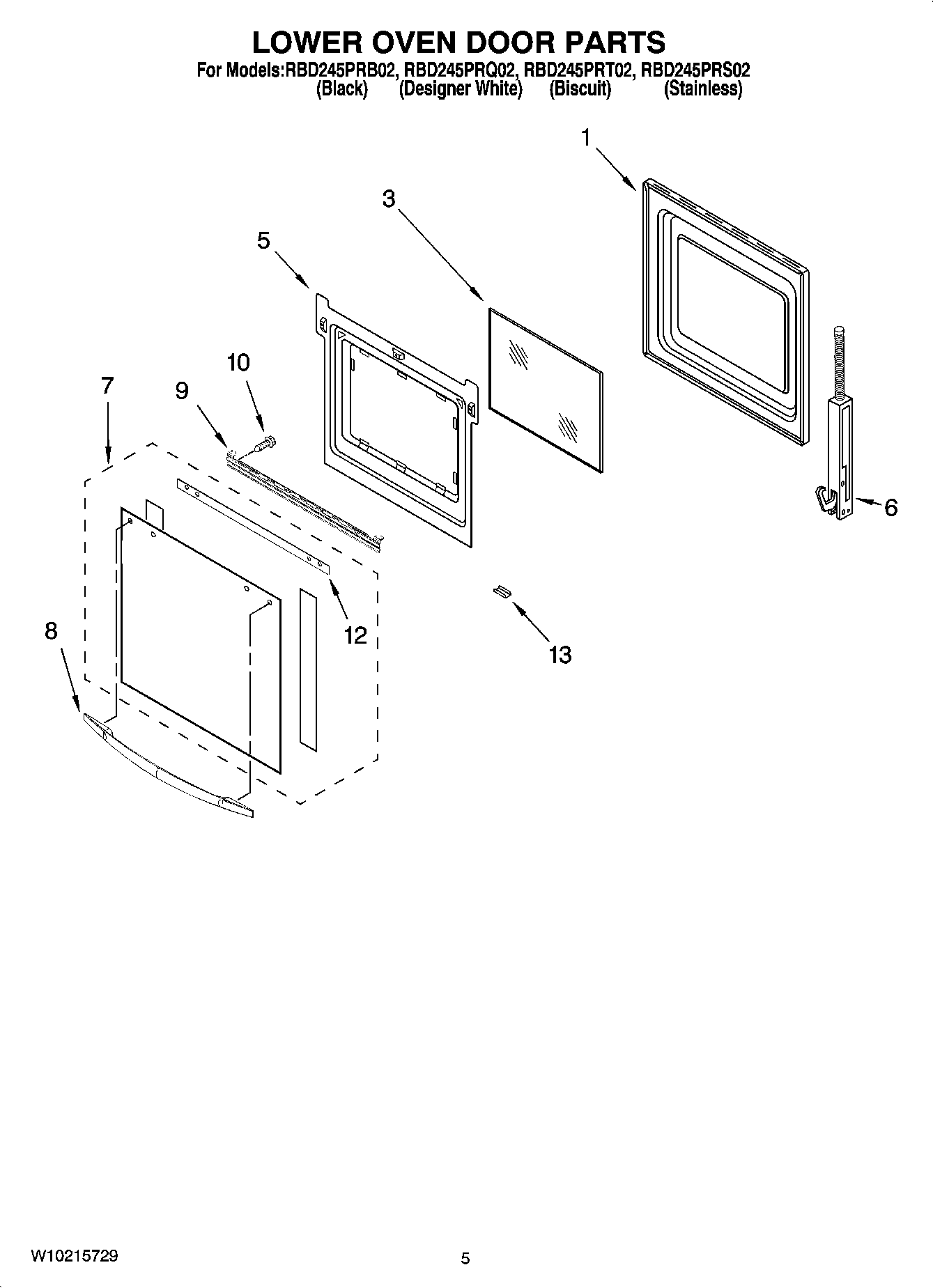

RBD245PRB02 03 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1WP8303698 Whirlpool Door Liner
3WP4449247 Whirlpool Inner Door Glass
54457130 Whirlpool Oven Retainer
6WP9760563 Whirlpool Door Hinge
6Hinge, Door (Left)
7Assembly, Door Glass (Biscuit)
7Assembly, Door Glass (White)
7Assembly, Door Glass (Black)
7Assembly, Door Glass (Stainless)
8Door Handle (Black)
8Door Handle (White)
8Door Handle (Biscuit)
9Bracket, Handle
10Screw
12Seal, Door
13RETAINER,GLASS CLIP (BISCUIT)
13Clip, Retainer (White Model)
13Clip, Retainer (Black Model)
