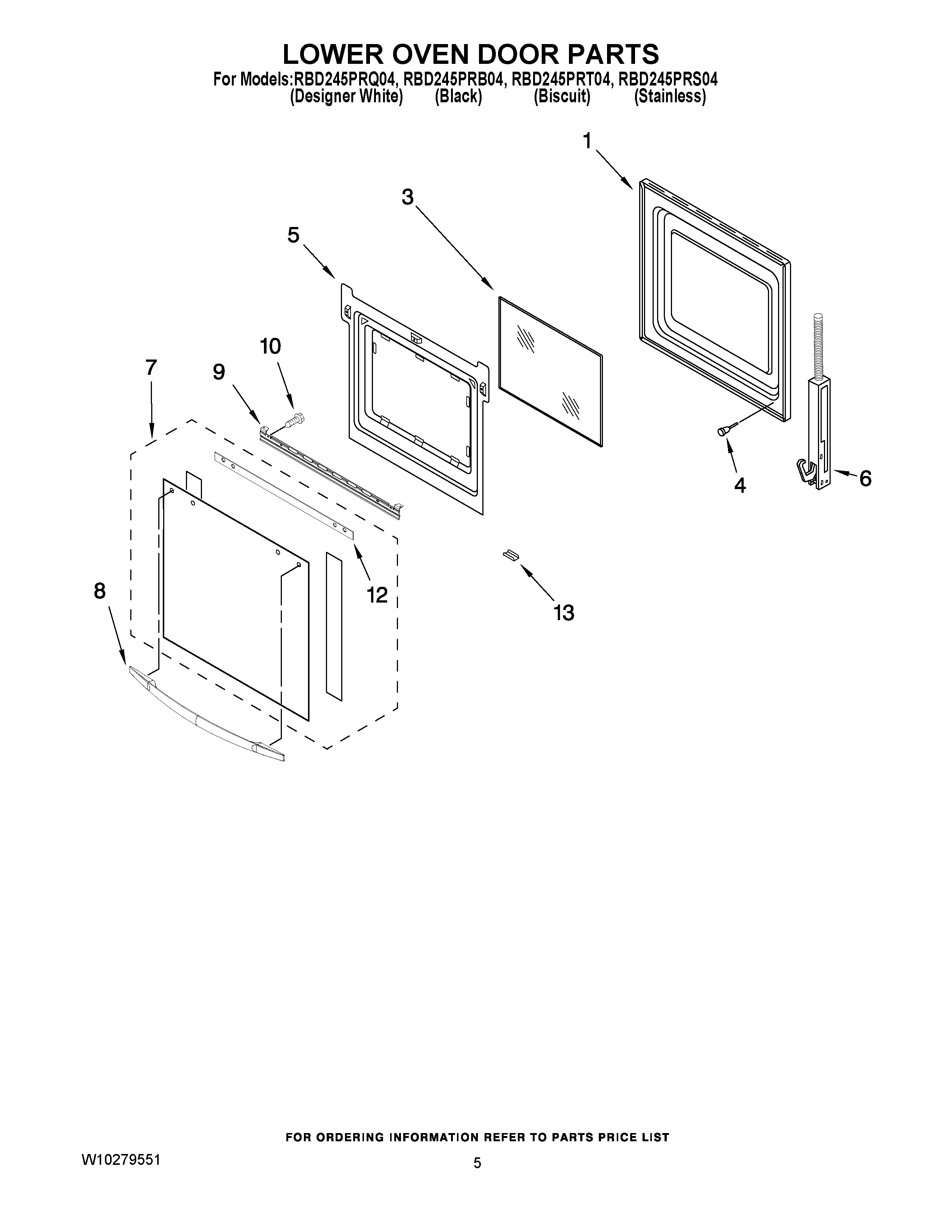

RBD245PRB04 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
3	WP4449247 Whirlpool Inner Door Glass
4	4448520 Whirlpool Oven Bumper
5	4457130 Whirlpool Oven Retainer
6	Hinge, Door (Left)
6	WP9760563 Whirlpool Door Hinge
7	Assembly, Door Glass (White)
7	Assembly, Door Glass (Stainless)
7	Assembly, Door Glass (Black)
7	Assembly, Door Glass (Biscuit)
8	Door Handle (Biscuit)
8	Door Handle (White)
8	Door Handle (Black)
9	Bracket, Handle
10	Screw
12	Seal, Door
13	Clip, Retainer (Black Model)
13	Retainer, Clip (Stainless)
13	Clip, Retainer (White Model)
13	RETAINER,GLASS CLIP (BISCUIT)
