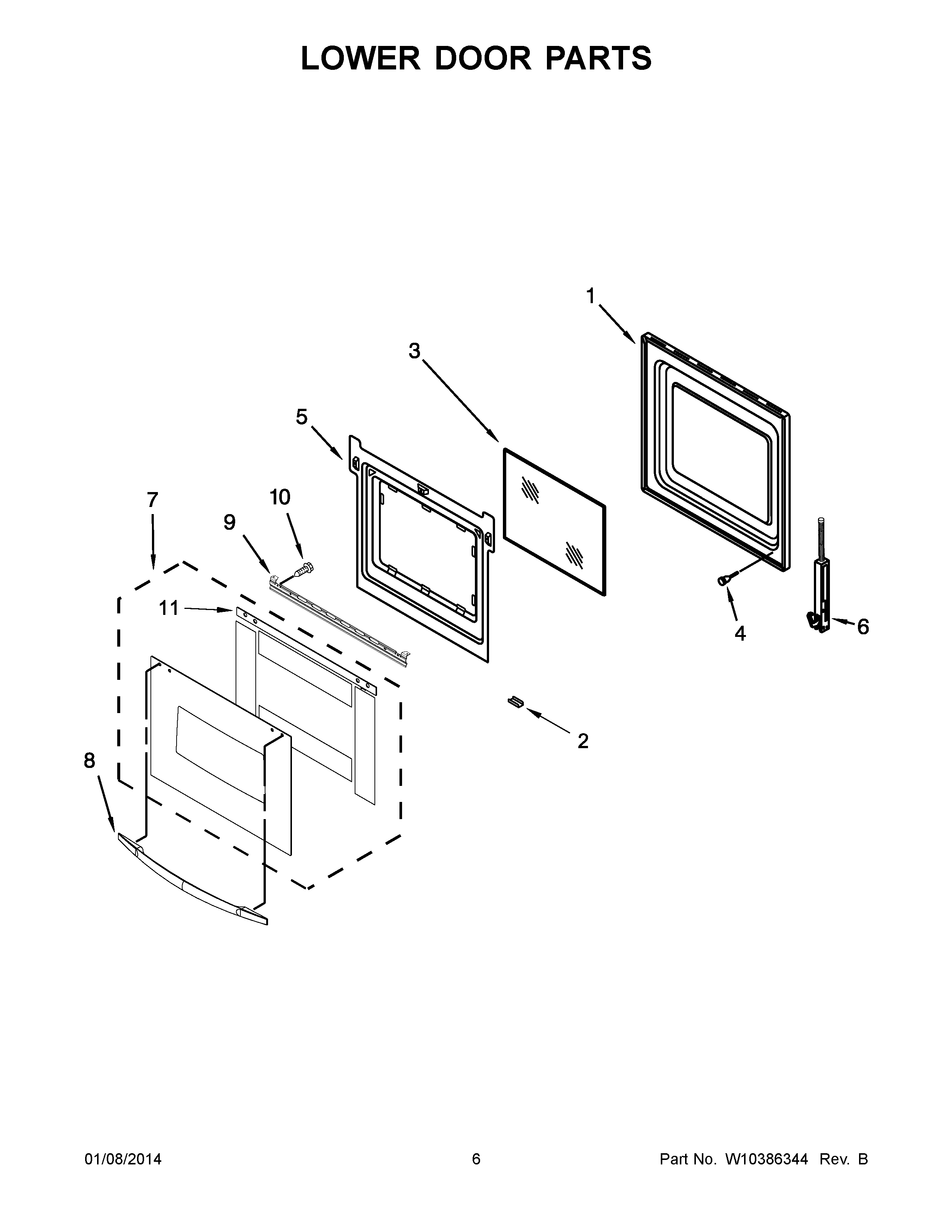

RBD245PRB05 04 – LOWER DOOR PARTSadmin2025-04-26T11:25:56+00:00RBD245PRB05 04 – LOWER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WP8303698 Whirlpool Door Liner |
| 2 | Retainer, Clip (Stainless) |
| 2 | RETAINER, CLIP (BLACK) |
| 2 | RETAINER, CLIP (WHITE) |
| 2 | CLIP, RETAINER (BISCUIT) |
| 3 | WP4449247 Whirlpool Inner Door Glass |
| 4 | 4448520 Whirlpool Oven Bumper |
| 5 | 4457130 Whirlpool Oven Retainer |
| 6 | WP9760563 Whirlpool Door Hinge |
| 6 | Hinge, Door (Left) |
| 7 | Assembly, Door Glass (Biscuit) |
| 7 | Assembly, Door Glass (White) |
| 7 | Assembly, Door Glass (Black) |
| 7 | Assembly, Door Glass (Stainless) |
| 8 | HANDLE, DOOR (BLACK) |
| 8 | HANDLE, DOOR (WHITE) |
| 8 | HANDLE, DOOR (BISCUIT) |
| 9 | Bracket, Handle |
| 10 | Screw |
| 11 | Seal, Door |
