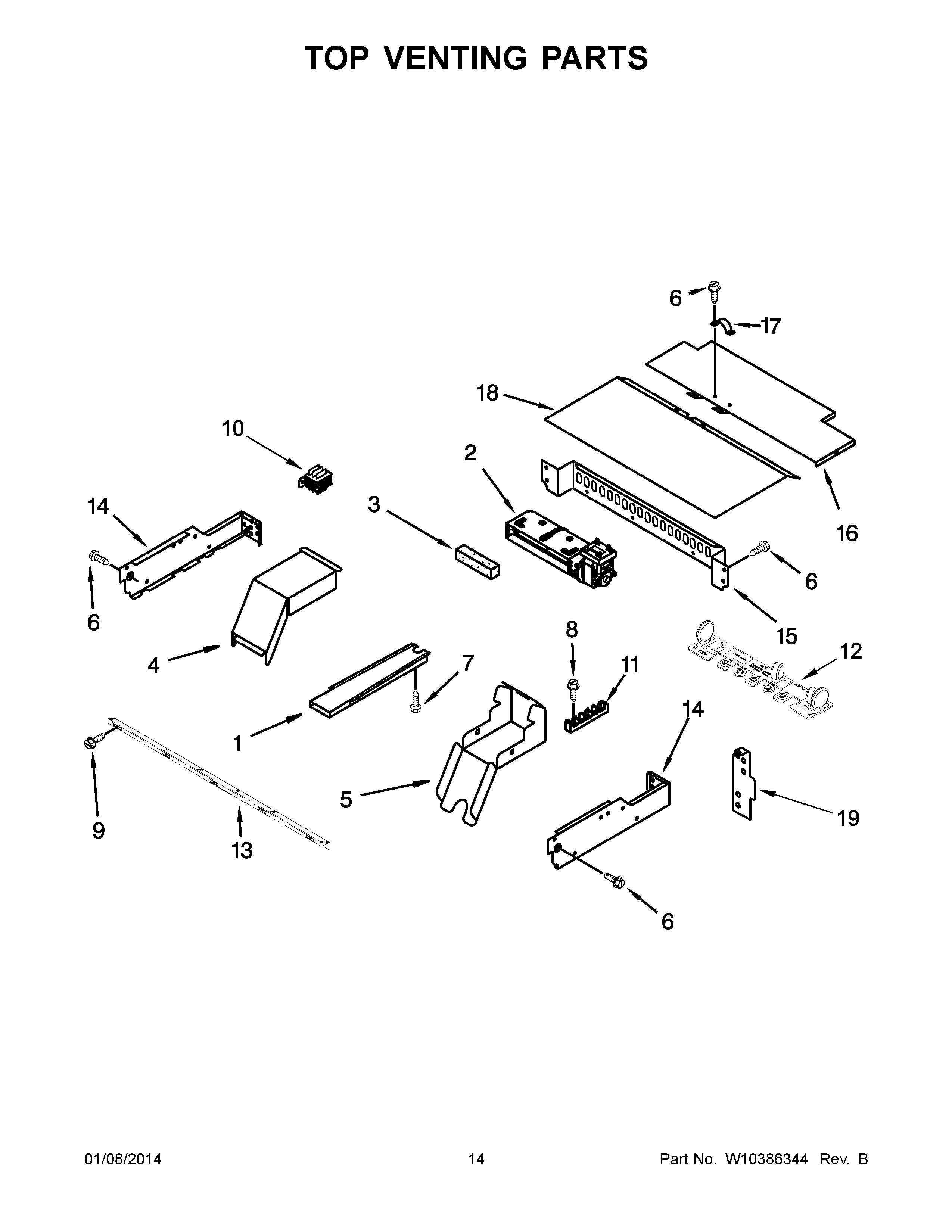

RBD245PRB05 08 – TOP VENTING PARTS

RBD245PRB05 08 – TOP VENTING PARTS

Written by

in

RBD245PRB05 08 – TOP VENTING PARTS

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
2WPW10176670 Whirlpool Blower
2WPW10016550 Whirlpool Blower Cooling Fan
3W10491987 Whirlpool Foam Seal
44455178 Whirlpool Oven Top Elbow
54455177 Whirlpool Oven Bottom Elbow
6SCREW
7Screw
8Screw
9WP4450038 Whirlpool Screw
10Transformer
11BLOCK, TERMINAL
12SUPPRESSOR
138303499 Whirlpool Vent Control
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
164450549 Whirlpool Oven Top Cover
174448664 Whirlpool Oven Mounting Bracket
18Cover, Top Front
194455191 Whirlpool Oven Mounting Plate
