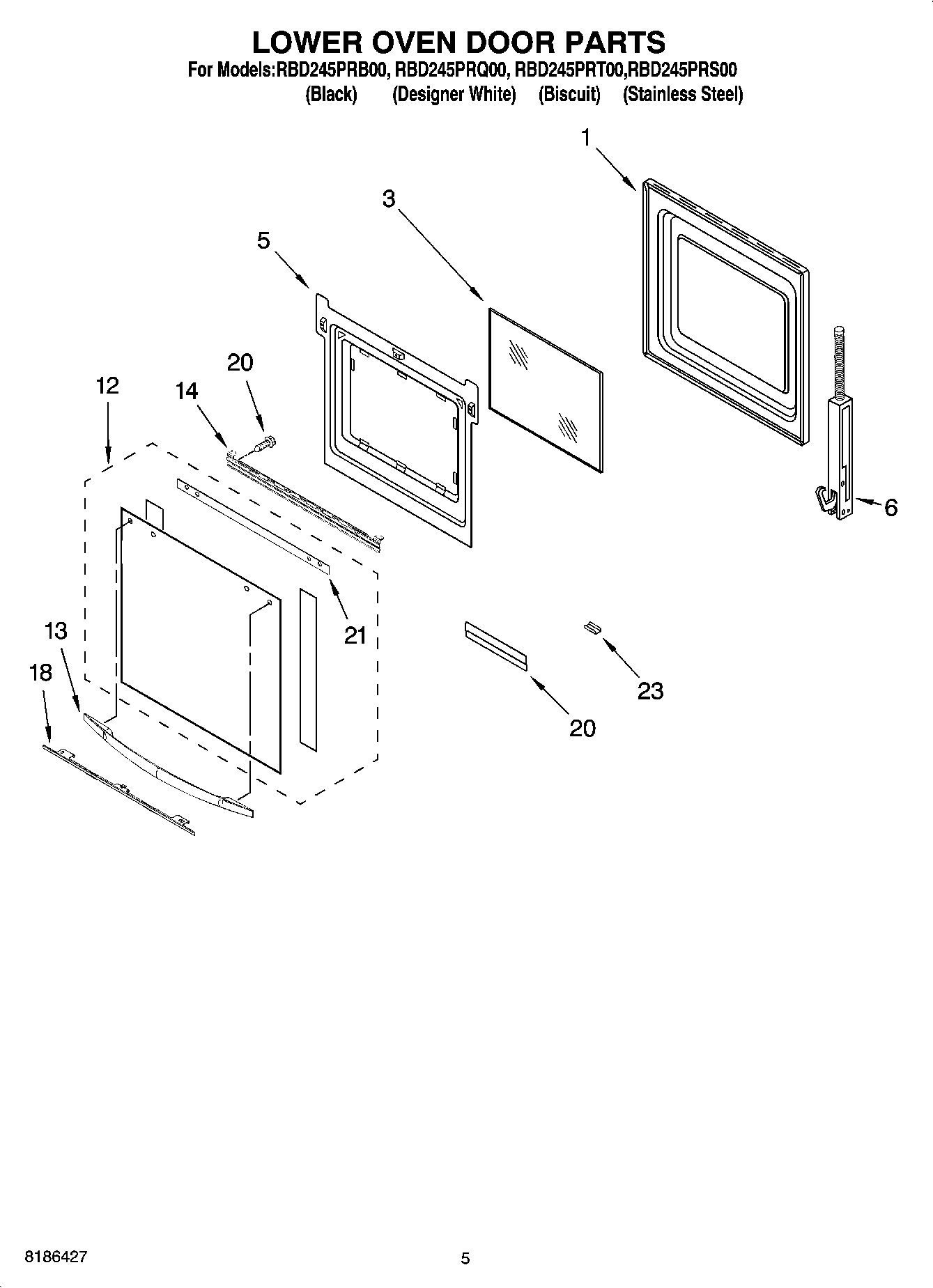

RBD245PRQ00 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
3	WP4449247 Whirlpool Inner Door Glass
5	4457130 Whirlpool Oven Retainer
6	WP9760563 Whirlpool Door Hinge
6	Hinge, Door (Left)
12	Assembly, Door Glass (Biscuit)
12	Assembly, Door Glass (White)
12	Assembly, Door Glass (Black)
12	Assembly, Door Glass (Stainless)
13	Door Handle (Biscuit)
13	Door Handle (White)
13	Door Handle (Black)
14	Bracket, Handle
18	Retainer, Door (Black)
18	Retainer, Door (Biscuit)
18	Retainer, Door (White)
20	Screw
21	Seal, Door
23	Retainer, Glass-Clip (Stainless Steel)
