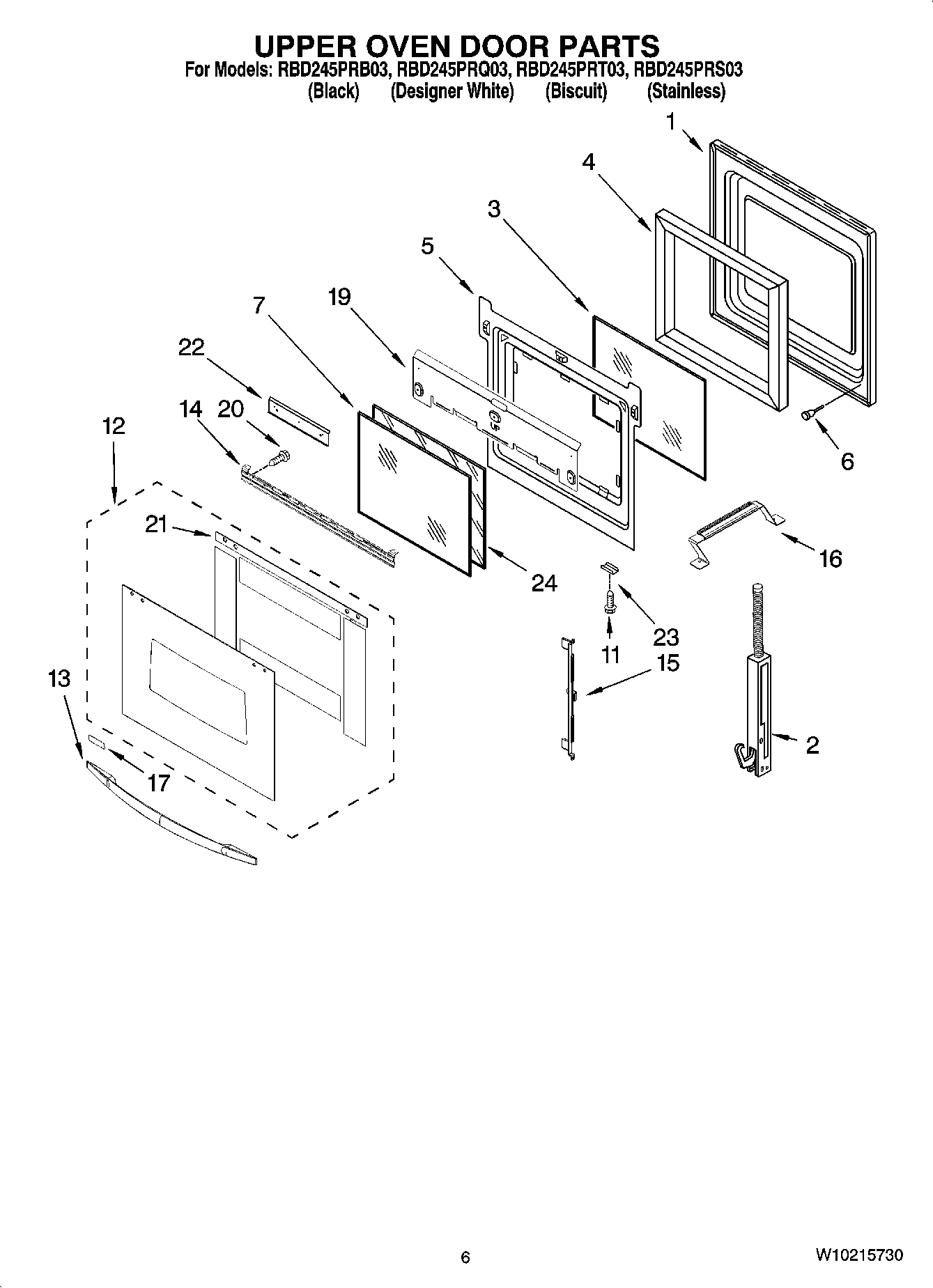

RBD245PRQ03 04 – UPPER OVEN DOOR PARTSadmin2025-04-26T11:23:42+00:00RBD245PRQ03 04 – UPPER OVEN DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WP8303698 Whirlpool Door Liner |
| 2 | Hinge, Door (Left) |
| 2 | Hinge, Door (Right) |
| 3 | WP4449247 Whirlpool Inner Door Glass |
| 4 | W11688413 Whirlpool Insulation |
| 5 | WP4449809 Whirlpool Screw |
| 5 | 4457130 Whirlpool Oven Retainer |
| 6 | 4448520 Whirlpool Oven Bumper |
| 7 | WP9759223 Whirlpool Door Glass |
| 11 | WP3400832 Whirlpool Screw |
| 12 | Assembly, Door Glass (Black) |
| 12 | Assembly, Door Glass (Biscuit) |
| 12 | Assembly, Door Glass (Stainless) |
| 12 | Assembly, Door Glass (White) |
| 13 | Door Handle (Biscuit) |
| 13 | Door Handle (White) |
| 13 | Door Handle (Black) |
| 14 | Bracket, Handle |
| 15 | WP9759229 Whirlpool Mounting Bracket |
| 16 | Bracket (3rd Glsss) |
| 17 | Nameplate |
| 19 | 4457101 Whirlpool Oven Shield |
| 20 | Screw |
| 21 | Seal, Door |
| 22 | 4457112 Whirlpool Oven Heat Shield |
| 23 | RETAINER,GLASS CLIP (BISCUIT) |
| 23 | Clip, Retainer (White Model) |
| 23 | Clip, Retainer (Black Model) |
| 24 | WP9759226 Whirlpool Door Glass |
