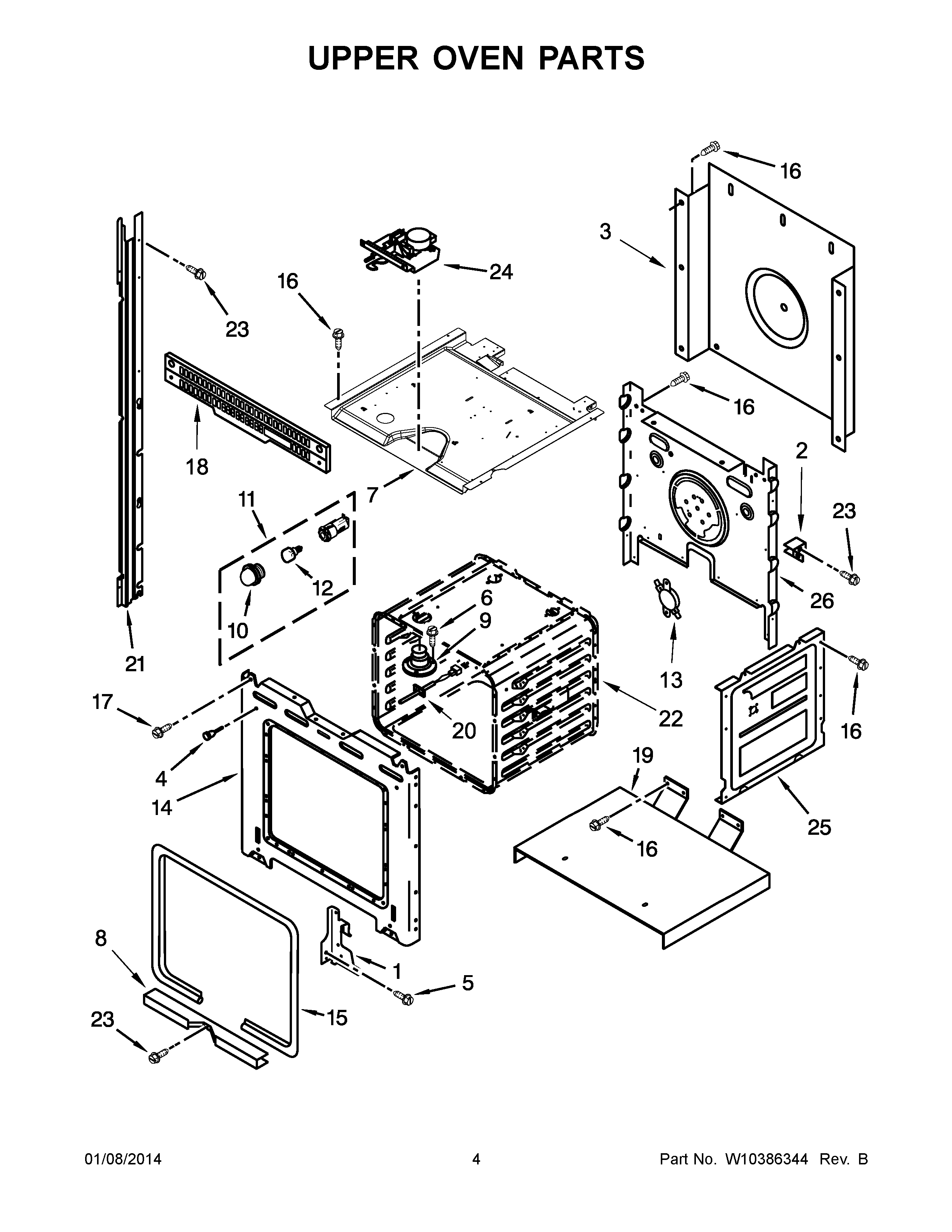

RBD245PRQ05 03 – UPPER OVEN PARTS

Products

Position	Product
NI	WP4450363 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP4449314 Whirlpool Insulation
NI	WP4448444 Whirlpool Grommet
1	WP4455606 Whirlpool Right Hand Hinge
1	WP4455605 Whirlpool Left Hand Hinge
2	WPL 4449845
3	WP4451747 Whirlpool Rear Cover
4	W10105790 Whirlpool Bumper
5	WP4449743 Whirlpool Screw
6	SCREW
7	4455863 Whirlpool Oven Top Assembly
8	WP4448933 Whirlpool Retainer
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	WP9759243 Whirlpool Thermostat
14	9760754 Whirlpool Oven Front Frame
15	WP4455380 Whirlpool Door Gasket
16	SCREW
17	Screw
18	W10358914 Whirlpool Oven Vent
19	4451476 Whirlpool Support
20	WPW10131825 Whirlpool Oven Temperature Sensor
21	WP8302793 Whirlpool Mounting Rail
21	Rail, Side (Left)
23	WP4449154 Whirlpool Screw
24	WPW10195934 Whirlpool Door Latch
25	W10782197 Whirlpool Side Panel
26	4452232 Whirlpool Oven Rear Cover
