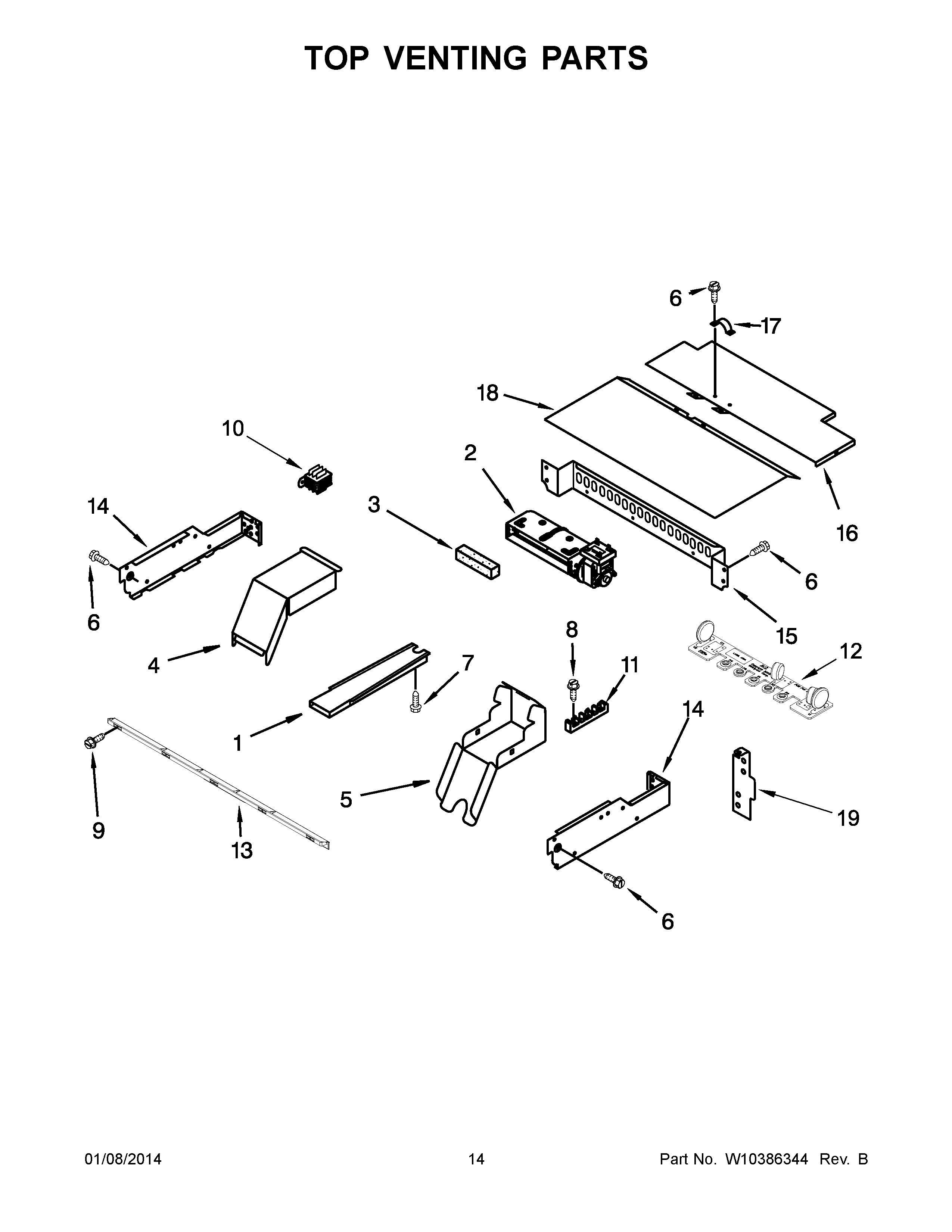

RBD245PRQ05 08 – TOP VENTING PARTS

Products

Position	Product
1	4451759 Whirlpool Oven Exhaust Vent
2	WPW10176670 Whirlpool Blower
2	WPW10016550 Whirlpool Blower Cooling Fan
3	W10491987 Whirlpool Foam Seal
4	4455178 Whirlpool Oven Top Elbow
5	4455177 Whirlpool Oven Bottom Elbow
6	SCREW
7	Screw
8	Screw
9	WP4450038 Whirlpool Screw
10	Transformer
11	BLOCK, TERMINAL
12	SUPPRESSOR
13	8303499 Whirlpool Vent Control
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	4450549 Whirlpool Oven Top Cover
17	4448664 Whirlpool Oven Mounting Bracket
18	Cover, Top Front
19	4455191 Whirlpool Oven Mounting Plate
