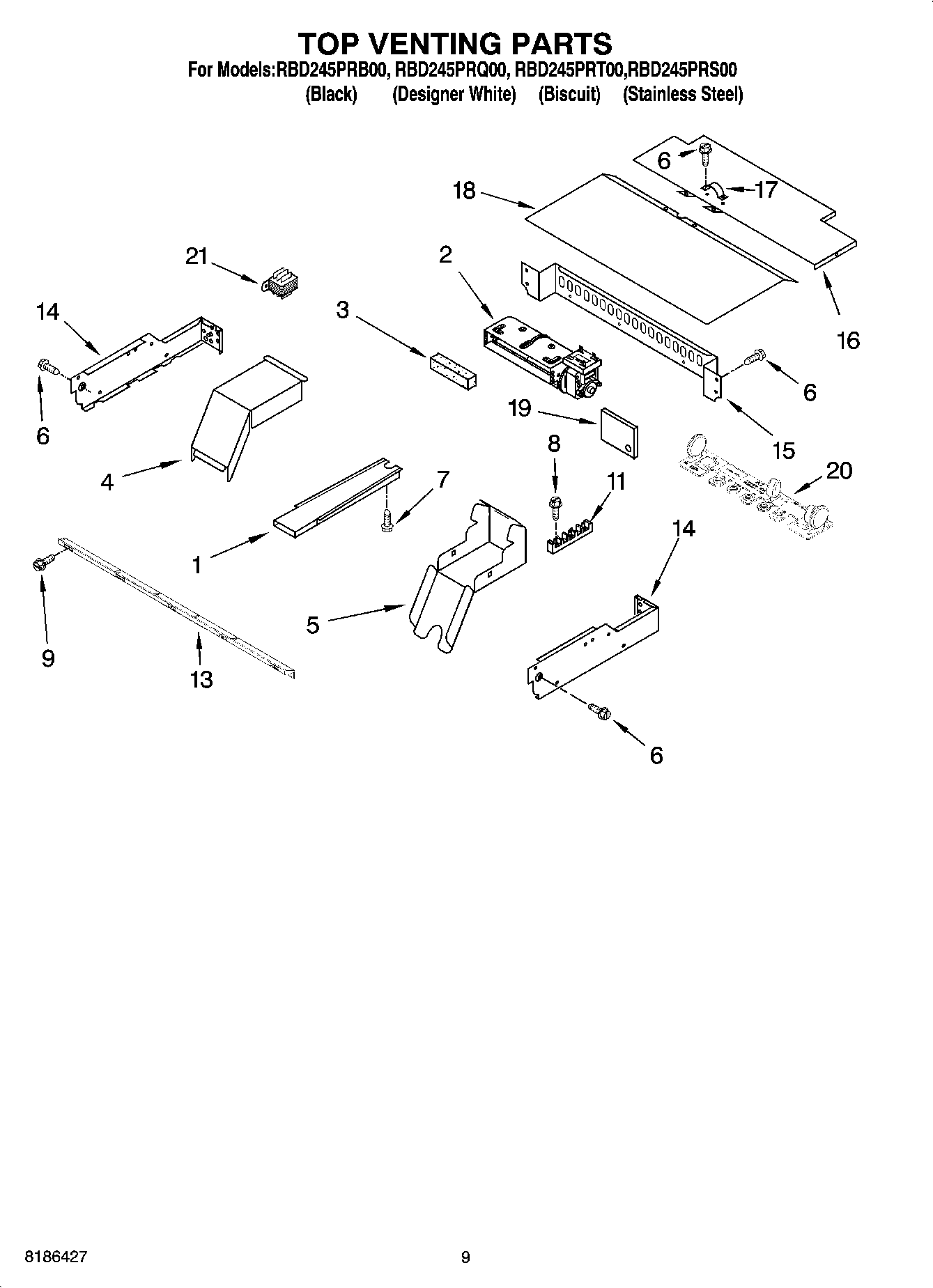

RBD245PRS00 07 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI119848A
	WP261869 Whirlpool Microwave Paint
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	WPL 591014
	4451761 Whirlpool Oven Support Bracket
	261900 Whirlpool Microwave Spray
	8302154 Whirlpool Oven Wire Harness
	8301878 Whirlpool Wire Harness
	ADHESIVE
	SPLICING WIRES–25FT. LENGTH
	WIRING HARNESS PAR
	242831 Whirlpool Oven Wire
	Conduit, Double
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	WP4449809 Whirlpool Screw
	WP112432 Whirlpool Nut Assembly
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	4448664 Whirlpool Oven Mounting Bracket
	4450800 Whirlpool Oven Screw
	WPW10339879 Whirlpool Wire Tie
	WP4448950 Whirlpool Screw
	285006 Whirlpool Spray
	814381 Whirlpool Pin
	72032 Whirlpool Touch Up Paint Black
	WP482338 Whirlpool Refrigerator Adhesive
1	4451759 Whirlpool Oven Exhaust Vent
2	WPW10176670 Whirlpool Blower
3	W10491987 Whirlpool Foam Seal
4	4455178 Whirlpool Oven Top Elbow
5	4455177 Whirlpool Oven Bottom Elbow
7	Screw
8	Screw
9	WP4450038 Whirlpool Screw
11	WP8203546 Whirlpool Terminal Block
13	8303499 Whirlpool Vent Control
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	4450549 Whirlpool Oven Top Cover
18	Cover, Top Front
19	Plate, Fan
20	SUPPRESSOR
21	Transformer, Control
