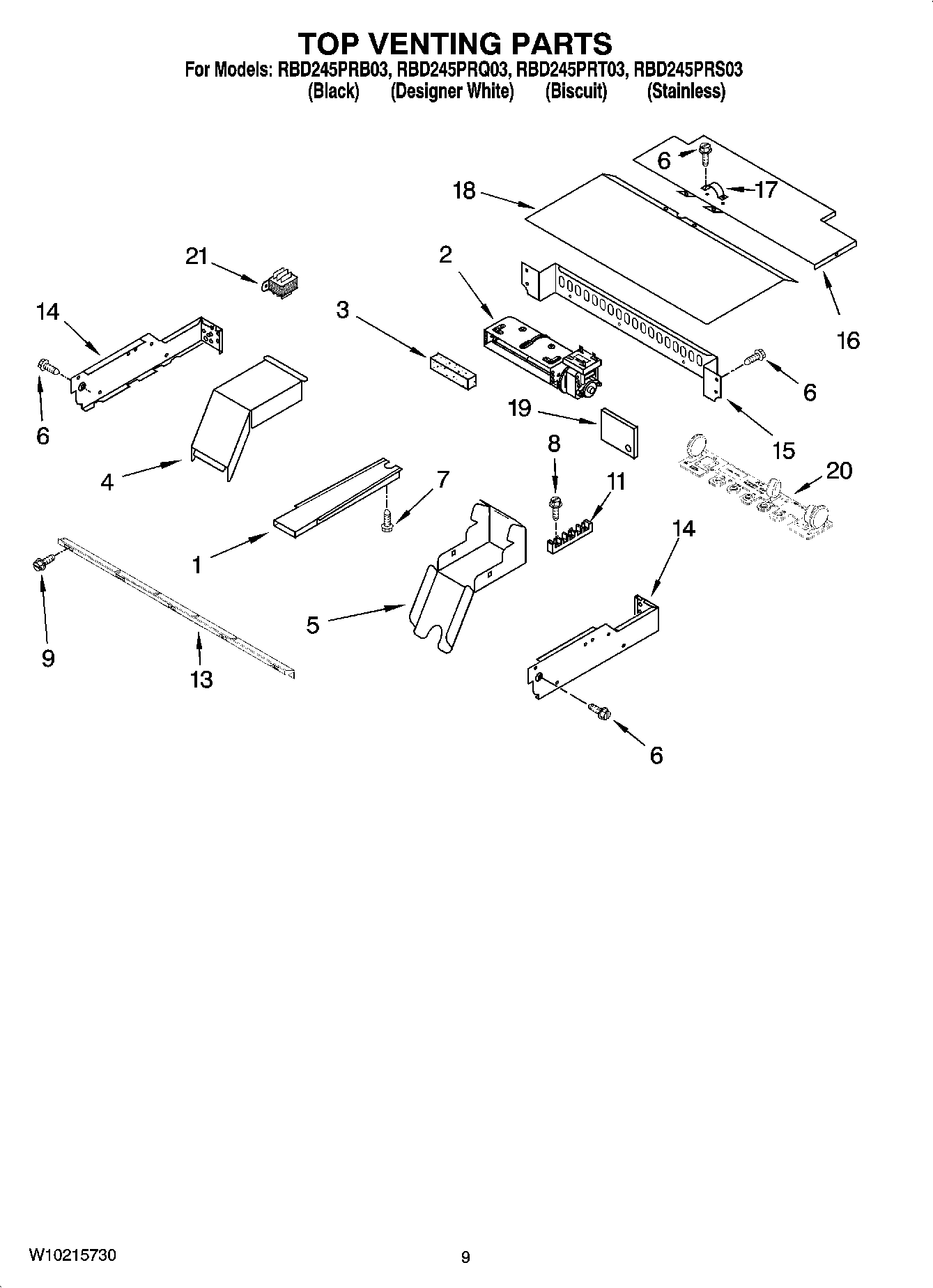

RBD245PRS03 07 – TOP VENTING PARTS, OPTIONAL PARTS

RBD245PRS03 07 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

RBD245PRS03 07 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
Conduit, Double
4452400 Whirlpool Microwave Wire Harness
WP261869 Whirlpool Microwave Paint
Miscellaneous
WPL 591014
4451761 Whirlpool Oven Support Bracket
261900 Whirlpool Microwave Spray
8302154 Whirlpool Oven Wire Harness
ADHESIVE
WIRING HARNESS PARTS
WP4448950 Whirlpool Screw
4448664 Whirlpool Oven Mounting Bracket
4450800 Whirlpool Oven Screw
WPW10339879 Whirlpool Wire Tie
Nut
WP4449809 Whirlpool Screw
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
72017 Whirlpool Appliance Touch-Up Paint White
14451759 Whirlpool Oven Exhaust Vent
2WPW10176670 Whirlpool Blower
3W10491987 Whirlpool Foam Seal
44455178 Whirlpool Oven Top Elbow
54455177 Whirlpool Oven Bottom Elbow
7Screw
8Screw
9WP4450038 Whirlpool Screw
11WP8203546 Whirlpool Terminal Block
138303499 Whirlpool Vent Control
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
164450549 Whirlpool Oven Top Cover
18Cover, Top Front
19Plate, Fan
20SUPPRESSOR
21Transformer
