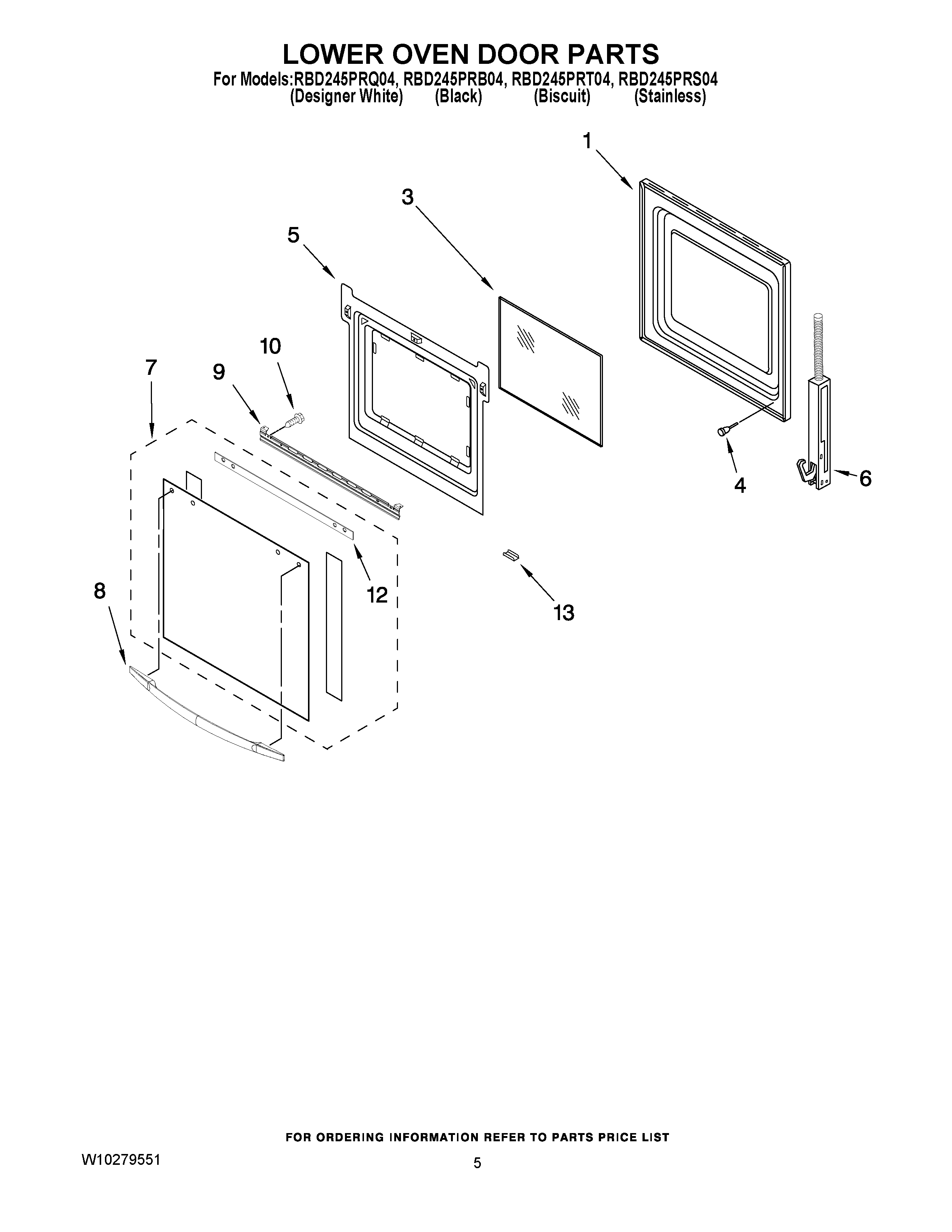

RBD245PRS04 03 – LOWER OVEN DOOR PARTS

RBD245PRS04 03 – LOWER OVEN DOOR PARTS

Written by

in

RBD245PRS04 03 – LOWER OVEN DOOR PARTS

Products

PositionProduct
1WP8303698 Whirlpool Door Liner
3WP4449247 Whirlpool Inner Door Glass
44448520 Whirlpool Oven Bumper
54457130 Whirlpool Oven Retainer
6Hinge, Door (Left)
6WP9760563 Whirlpool Door Hinge
7Assembly, Door Glass (White)
7Assembly, Door Glass (Stainless)
7Assembly, Door Glass (Black)
7Assembly, Door Glass (Biscuit)
8Door Handle (Biscuit)
8Door Handle (White)
8Door Handle (Black)
9Bracket, Handle
10Screw
12Seal, Door
13Clip, Retainer (Black Model)
13Retainer, Clip (Stainless)
13Clip, Retainer (White Model)
13RETAINER,GLASS CLIP (BISCUIT)
