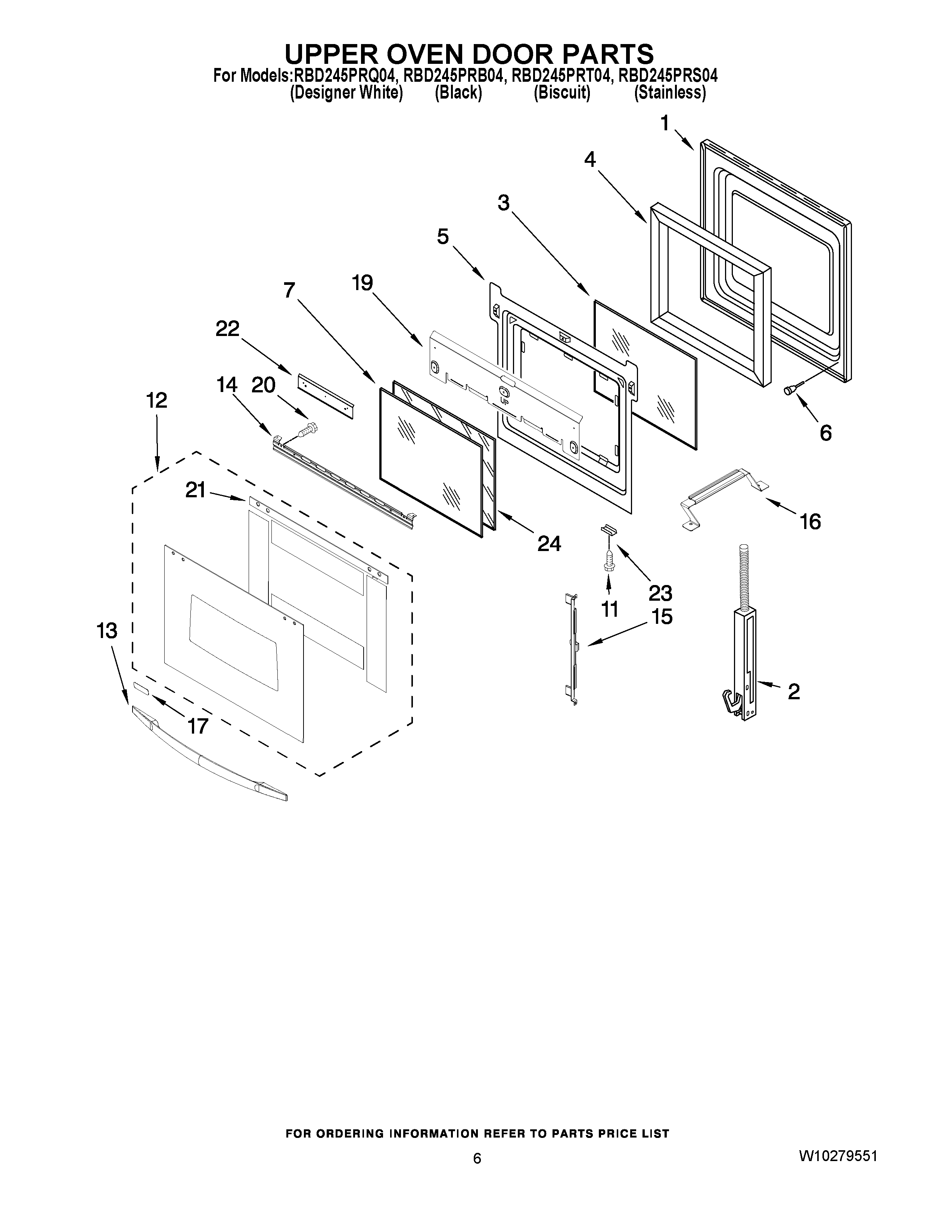

RBD245PRS04 04 – UPPER OVEN DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	Hinge, Door (Left)
2	Hinge, Door (Right)
2	9760570 Whirlpool Door Hinge
2	9760569 Whirlpool Door Hinge
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
5	WP4449809 Whirlpool Screw
5	4457130 Whirlpool Oven Retainer
6	4448520 Whirlpool Oven Bumper
7	WP9759223 Whirlpool Door Glass
11	WP3400832 Whirlpool Screw
12	Assembly, Door Glass (Black)
12	Assembly, Door Glass (White)
12	Assembly, Door Glass (Biscuit)
12	Assembly, Door Glass (Stainless)
13	Door Handle (Black)
13	Door Handle (Biscuit)
13	Door Handle (White)
14	Bracket, Handle
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
17	Nameplate
19	4457101 Whirlpool Oven Shield
20	Screw
21	Seal, Door
22	4457112 Whirlpool Oven Heat Shield
23	Clip, Retainer (Black Model)
23	Retainer, Clip (Stainless)
23	Clip, Retainer (White Model)
23	RETAINER,GLASS CLIP (BISCUIT)
24	WP9759226 Whirlpool Door Glass
