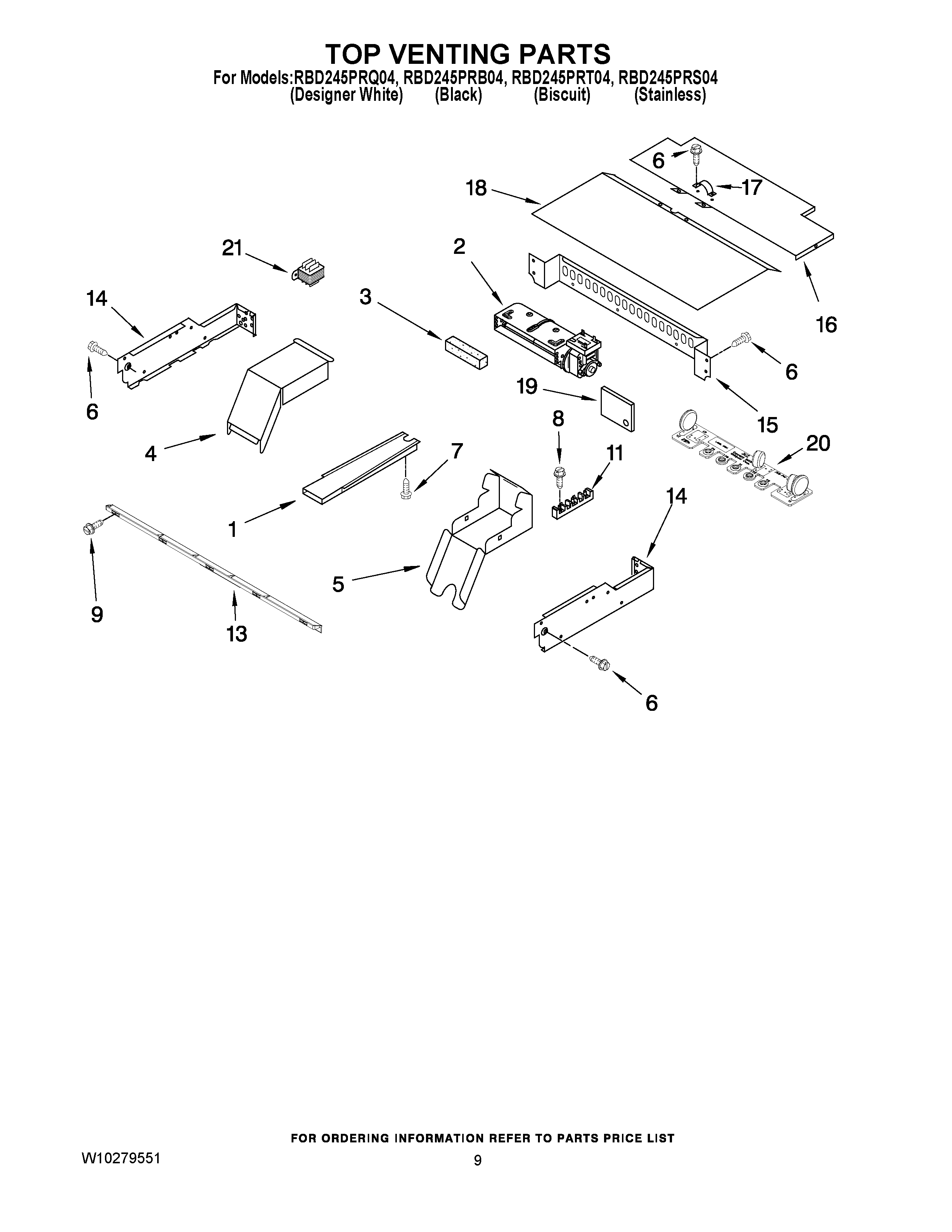

RBD245PRS04 07 – TOP VENTING PARTS

Products

Position	Product
1	4451759 Whirlpool Oven Exhaust Vent
2	WPW10176670 Whirlpool Blower
3	W10491987 Whirlpool Foam Seal
4	4455178 Whirlpool Oven Top Elbow
5	4455177 Whirlpool Oven Bottom Elbow
6	WP4449809 Whirlpool Screw
7	Screw
8	Screw
9	WP4450038 Whirlpool Screw
11	BLOCK, TERMINAL
13	8303499 Whirlpool Vent Control
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	4450549 Whirlpool Oven Top Cover
17	4448664 Whirlpool Oven Mounting Bracket
18	Cover, Top Front
19	Plate, Fan
20	SUPPRESSOR
21	Transformer
