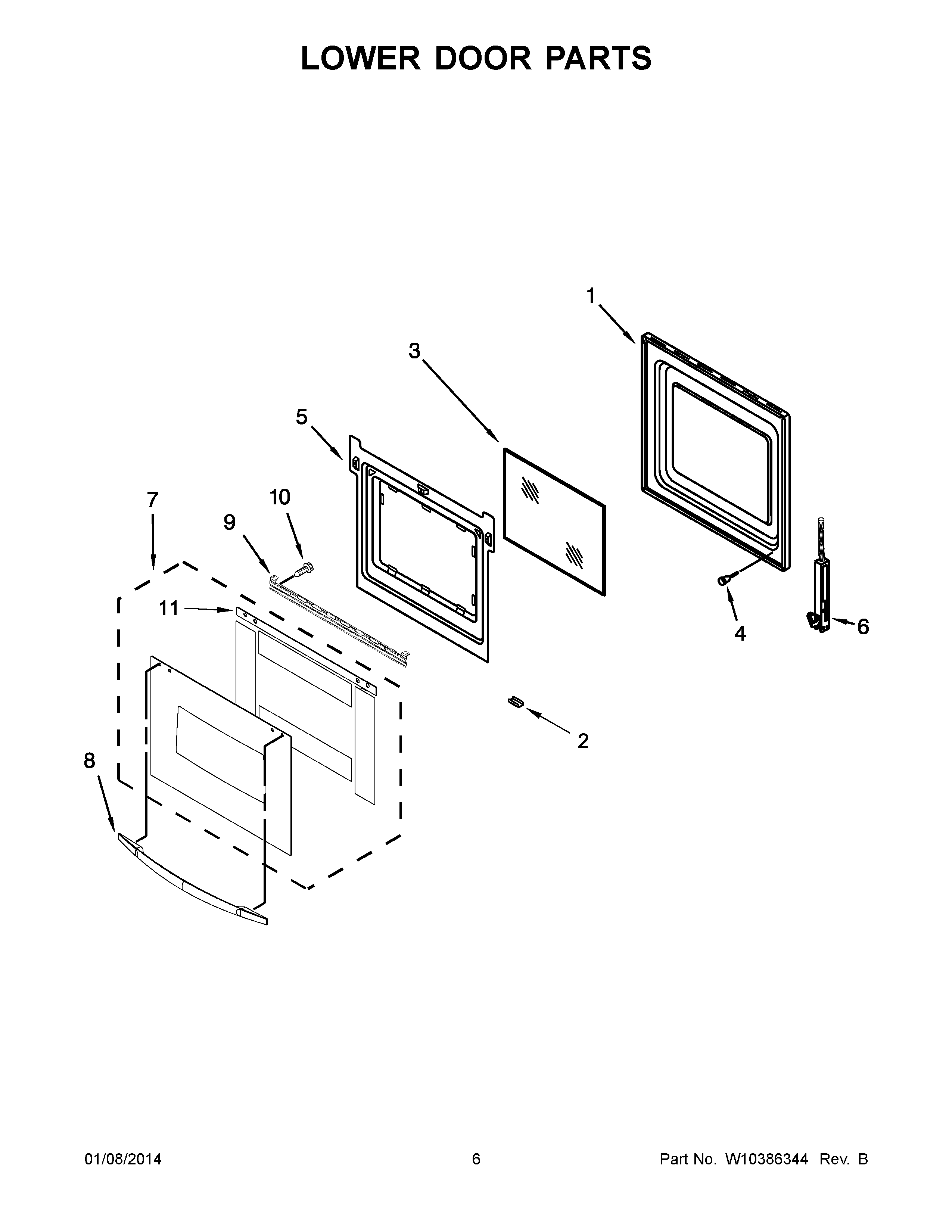

RBD245PRS05 04 – LOWER DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	Retainer, Clip (Stainless)
2	RETAINER, CLIP (BLACK)
2	RETAINER, CLIP (WHITE)
2	CLIP, RETAINER (BISCUIT)
3	WP4449247 Whirlpool Inner Door Glass
4	4448520 Whirlpool Oven Bumper
5	4457130 Whirlpool Oven Retainer
6	WP9760563 Whirlpool Door Hinge
6	Hinge, Door (Left)
7	Assembly, Door Glass (Biscuit)
7	Assembly, Door Glass (White)
7	Assembly, Door Glass (Black)
7	Assembly, Door Glass (Stainless)
8	HANDLE, DOOR (BLACK)
8	HANDLE, DOOR (WHITE)
8	HANDLE, DOOR (BISCUIT)
9	Bracket, Handle
10	Screw
11	Seal, Door
