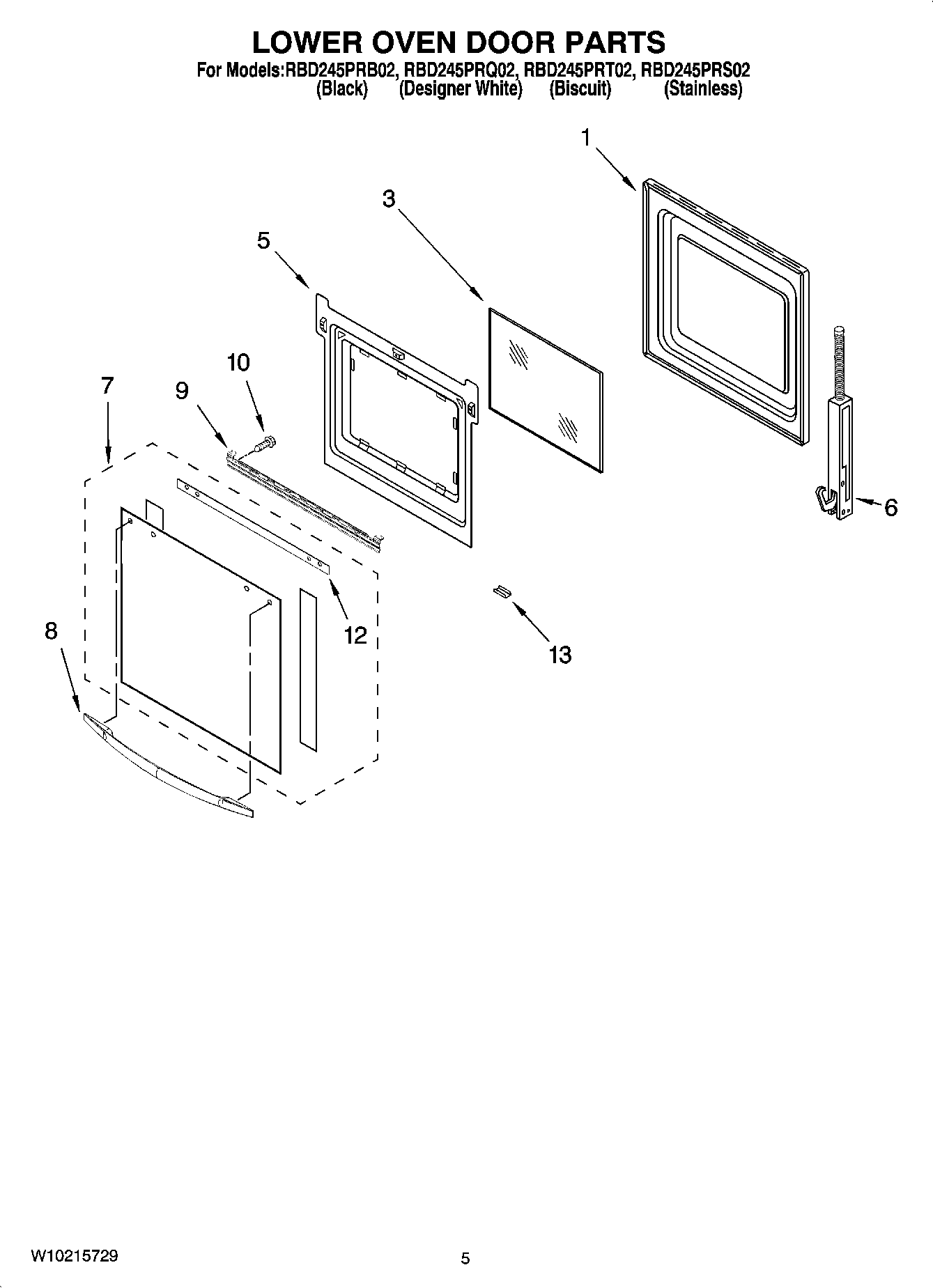

RBD245PRT02 03 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
3	WP4449247 Whirlpool Inner Door Glass
5	4457130 Whirlpool Oven Retainer
6	WP9760563 Whirlpool Door Hinge
6	Hinge, Door (Left)
7	Assembly, Door Glass (Biscuit)
7	Assembly, Door Glass (White)
7	Assembly, Door Glass (Black)
7	Assembly, Door Glass (Stainless)
8	Door Handle (Black)
8	Door Handle (White)
8	Door Handle (Biscuit)
9	Bracket, Handle
10	Screw
12	Seal, Door
13	RETAINER,GLASS CLIP (BISCUIT)
13	Clip, Retainer (White Model)
13	Clip, Retainer (Black Model)
