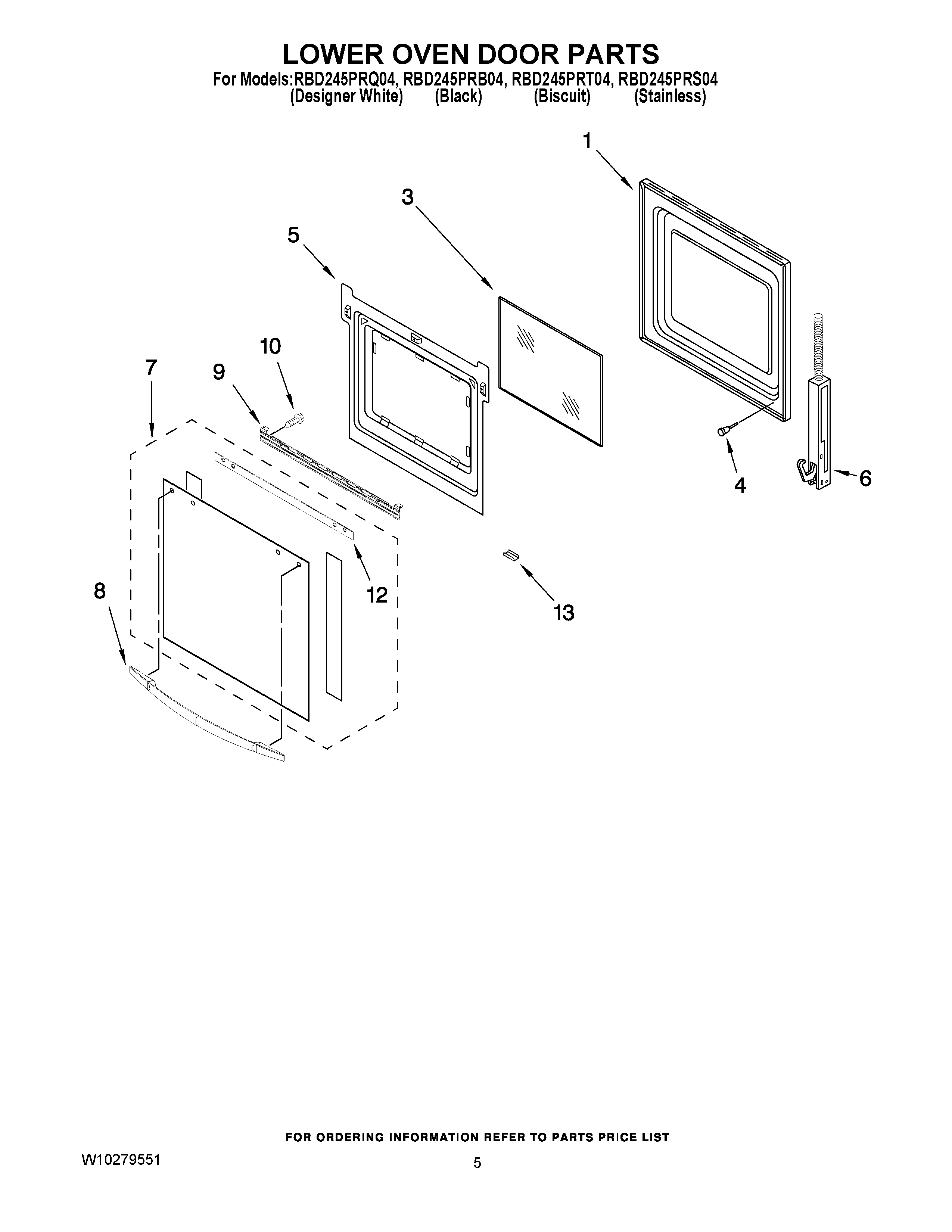

RBD245PRT04 03 – LOWER OVEN DOOR PARTSadmin2025-04-26T11:23:17+00:00RBD245PRT04 03 – LOWER OVEN DOOR PARTS
Products
| Position | Product |
|---|
| 1 | WP8303698 Whirlpool Door Liner |
| 3 | WP4449247 Whirlpool Inner Door Glass |
| 4 | 4448520 Whirlpool Oven Bumper |
| 5 | 4457130 Whirlpool Oven Retainer |
| 6 | Hinge, Door (Left) |
| 6 | WP9760563 Whirlpool Door Hinge |
| 7 | Assembly, Door Glass (White) |
| 7 | Assembly, Door Glass (Stainless) |
| 7 | Assembly, Door Glass (Black) |
| 7 | Assembly, Door Glass (Biscuit) |
| 8 | Door Handle (Biscuit) |
| 8 | Door Handle (White) |
| 8 | Door Handle (Black) |
| 9 | Bracket, Handle |
| 10 | Screw |
| 12 | Seal, Door |
| 13 | Clip, Retainer (Black Model) |
| 13 | Retainer, Clip (Stainless) |
| 13 | Clip, Retainer (White Model) |
| 13 | RETAINER,GLASS CLIP (BISCUIT) |
