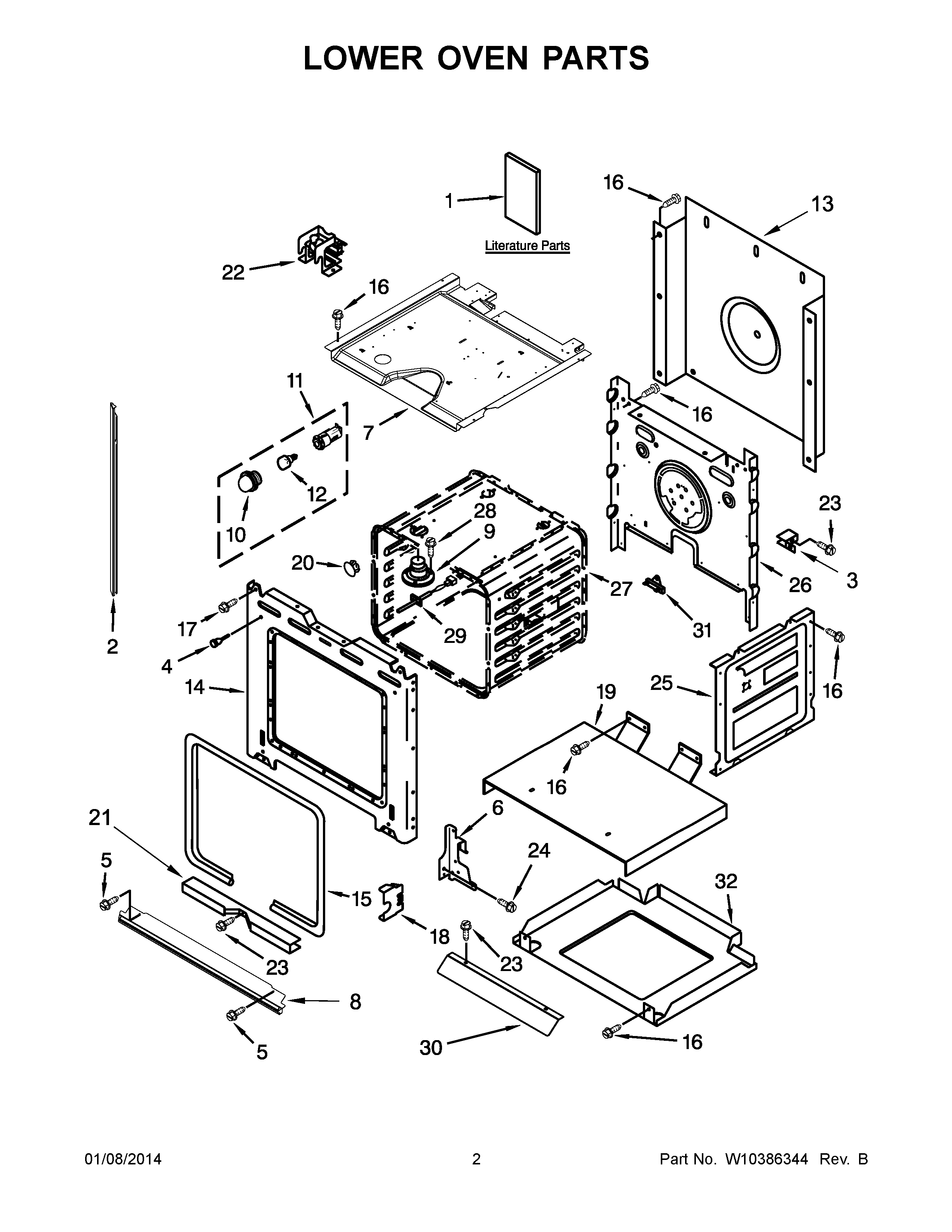

RBD245PRT05 02 – LOWER OVEN PARTS

RBD245PRT05 02 – LOWER OVEN PARTS

Written by

in

RBD245PRT05 02 – LOWER OVEN PARTS

Products

PositionProduct
NIWP4449314 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIWP4450363 Whirlpool Insulation
1Installation Instructions
1Use & Care Guide
1Tech Sheet (Oven)
1SAFER COOKING TIPS (ENGLISH
2W10339503 Whirlpool Trim
2WPW10339499 Whirlpool Trim Assembly
2WPW10339500 Whirlpool Trim
2WPW10339502 Whirlpool Trim Kit
2TRIM, SIDE RIGHT (WHITE)
2TRIM, SIDE LEFT (BISCUIT)
3WPL 4449845
44448520 Whirlpool Oven Bumper
5WP3400832 Whirlpool Screw
6WP4455606 Whirlpool Right Hand Hinge
6WP4455605 Whirlpool Left Hand Hinge
74455863 Whirlpool Oven Top Assembly
8ASSEMBLY, BOTTOM TRIM (WHITE)
8ASSEMBLY, BOTTOM TRIM (BLACK)
8ASSEMBLY, BOTTOM TRIM (BISCUIT)
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13WP4451747 Whirlpool Rear Cover
149760754 Whirlpool Oven Front Frame
15W10203263 Whirlpool Door Gasket
16SCREW
17Screw
184452152 Whirlpool Oven Mounting Bracket
194451476 Whirlpool Support
204450935 Whirlpool Oven Door Plug
21WP4448933 Whirlpool Retainer
22Fan & Bracket Assy
23WP4449154 Whirlpool Screw
24WP4449743 Whirlpool Screw
25W10782197 Whirlpool Side Panel
264452232 Whirlpool Oven Rear Cover
28SCREW
29WPW10131825 Whirlpool Oven Temperature Sensor
30Deflector, Vent
31WP4451354 Whirlpool Thermal Fuse Assembly
324450525 Whirlpool Oven Bottom Assembly
