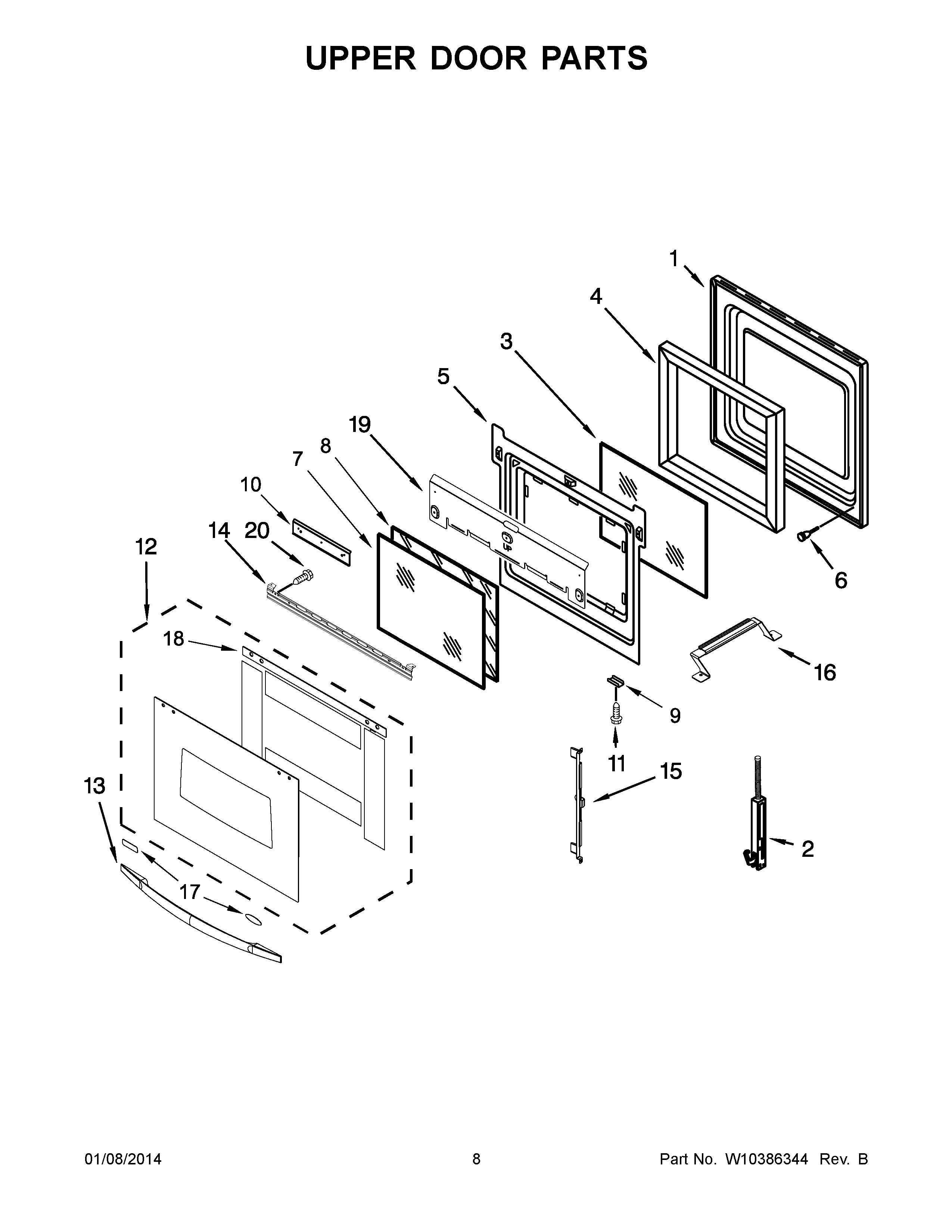

RBD245PRT05 05 – UPPER DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	Hinge, Door (Left)
2	9760569 Whirlpool Door Hinge
2	9760570 Whirlpool Door Hinge
2	Hinge, Door (Right)
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
5	4457130 Whirlpool Oven Retainer
6	4448520 Whirlpool Oven Bumper
7	WP9759223 Whirlpool Door Glass
8	WP9759226 Whirlpool Door Glass
9	RETAINER, CLIP (BLACK)
9	Retainer, Clip (Stainless)
9	RETAINER, CLIP (WHITE)
9	CLIP, RETAINER (BISCUIT)
10	4457112 Whirlpool Oven Heat Shield
11	WP3400832 Whirlpool Screw
12	Assembly, Door Glass (Biscuit)
12	Assembly, Door Glass (Stainless)
12	Assembly, Door Glass (Black)
12	Assembly, Door Glass (White)
13	HANDLE, DOOR (WHITE)
13	HANDLE, DOOR (BLACK)
13	HANDLE, DOOR (BISCUIT)
14	Bracket, Handle
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
17	Nameplate
17	W11178521 Whirlpool Dishwasher Nameplate
18	Seal, Door
19	4457101 Whirlpool Oven Shield
20	Screw
