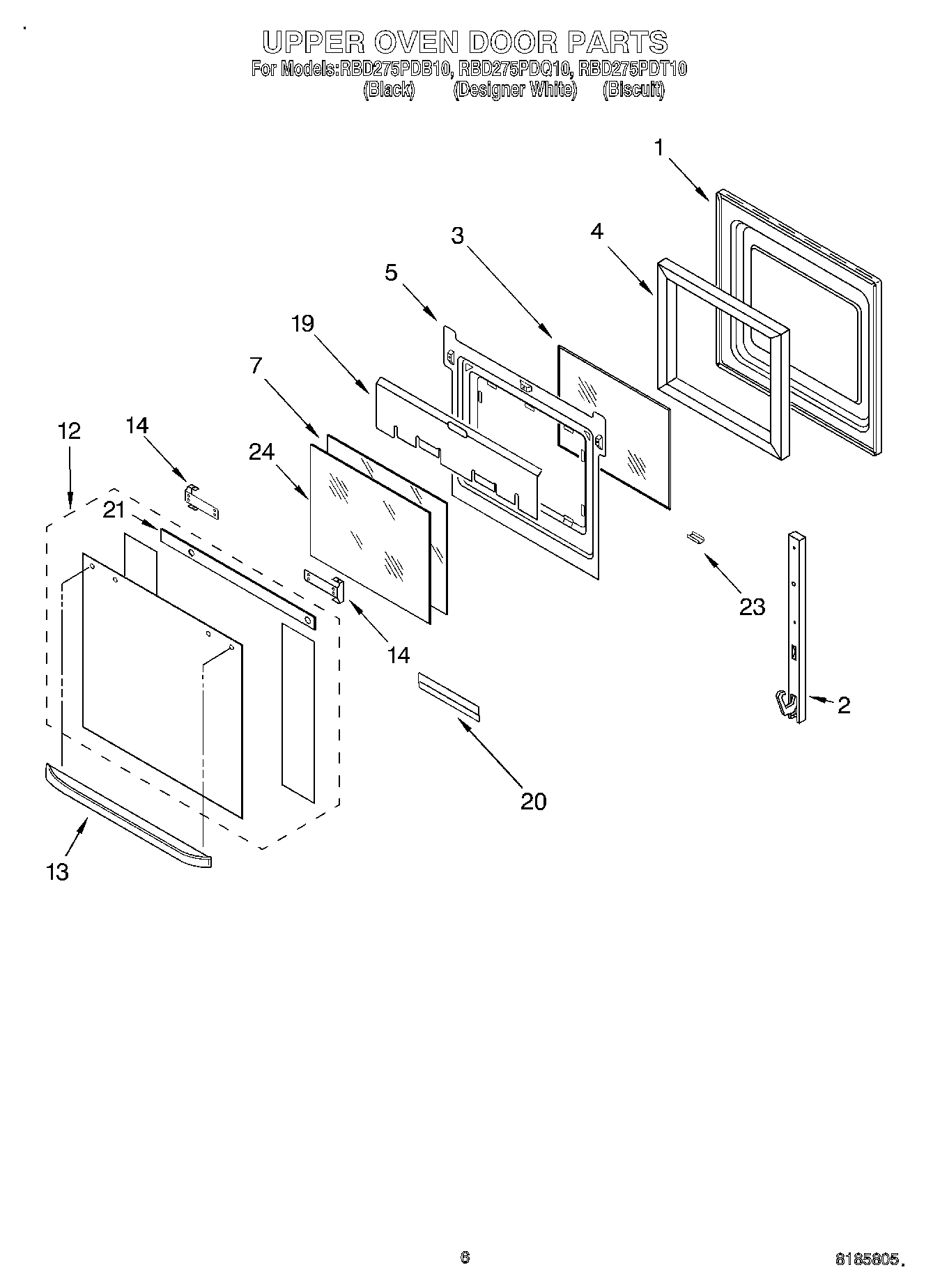

RBD275PDB10 04 – UPPER OVEN DOOR

Products

PositionProduct
1Door Liner
2WP4449743 Whirlpool Screw
2WP4455524 Whirlpool Door Hinge
3WP4449253 Whirlpool Glass Window
4Insulation, Sides
5Retainer, Glass
7WP4449257 Whirlpool Door Glass
12Door Glass, Assy (White Model)
12Door Glass Assy (Biscuit)
12Door Glass Assy (Black Model)
13Door Handle (Biscuit Model)
13Handle, Door (White Model)
13Handle, Door (Black Model)
14Bracket, Handle
14Screw
19Shield, Heat
20Retainer, Glass
20WP4449809 Whirlpool Screw
21Seal, Top
23RETAINER,GLASS CLIP (BISCUIT)
23Clip, Retainer (White Model)
23Clip, Retainer (Black Model)
24Glass, Inner
