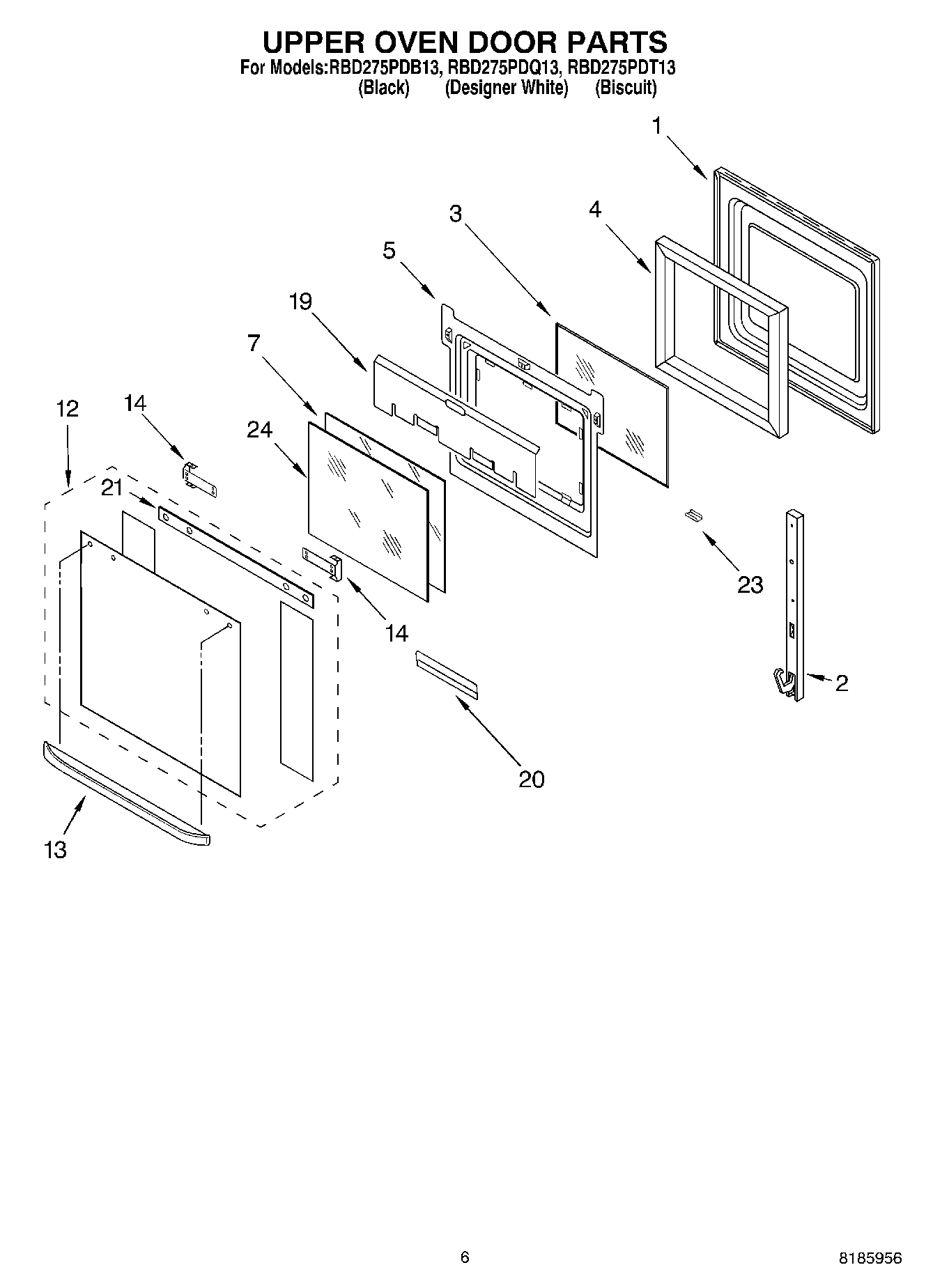

RBD275PDB13 04 – UPPER OVEN DOOR – Aparts

RBD275PDB13 04 – UPPER OVEN DOOR

Products

Position	Product
1	Door Liner
2	9760570 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
2	9760569 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
12	Door Glass Assy (Black Model)
12	Door Glass, Assy (White Model)
12	Door Glass Assy (Biscuit)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
13	Door Handle (Biscuit Model)
14	Screw
14	Bracket, Handle
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	RETAINER,GLASS CLIP (BISCUIT)
24	Glass, Inner
